Valve Actuators; Receiver Antenna - Pentair EasyTouch Pool/Spa Control System LX-100EZ Installation And Owner's Manual

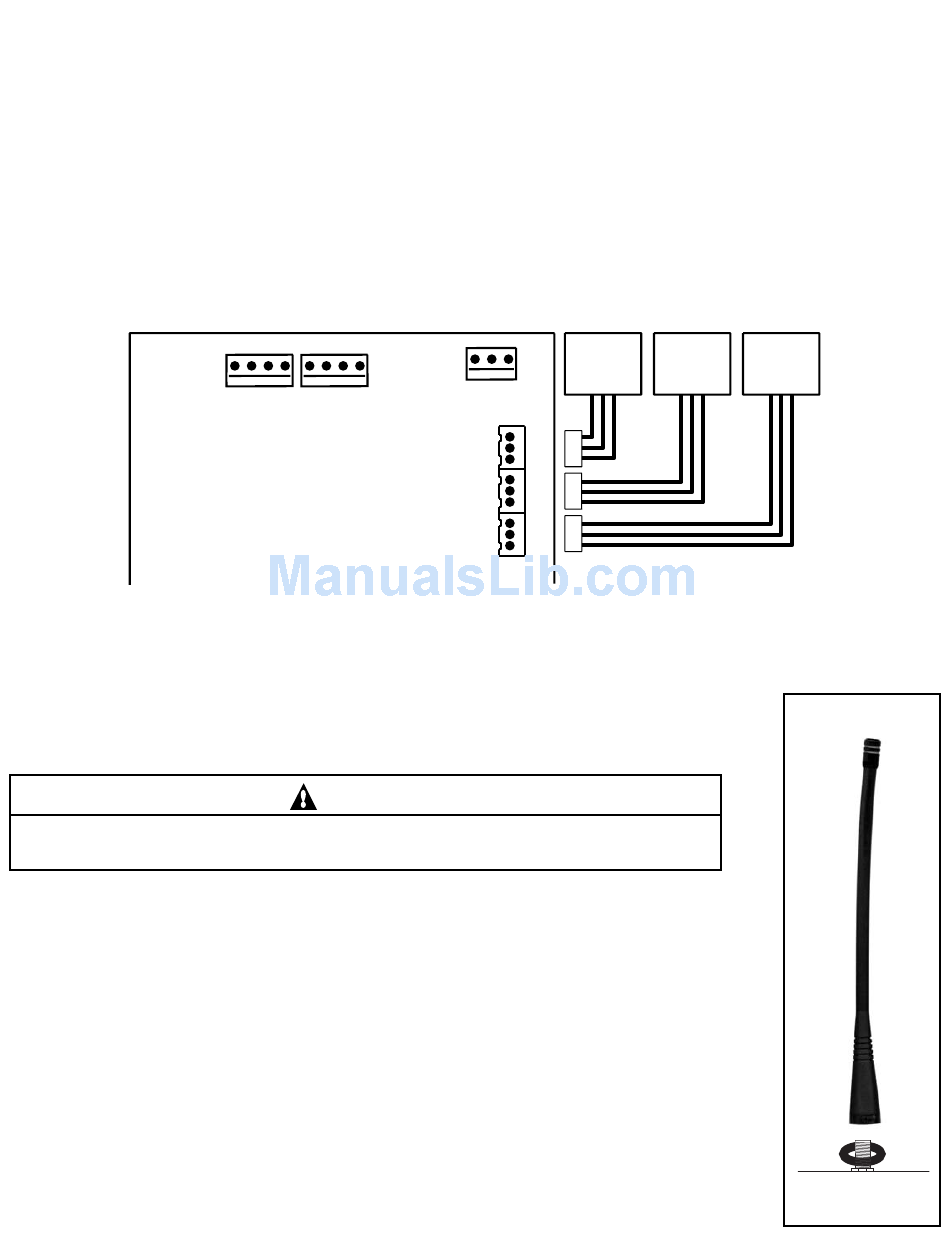

Remove knob, handle and four screws from cap of valve(s) to be motorized, and use the four mounting screws
provided to mount Valve Actuator(s) to valve(s).
Run cables to low-voltage wiring compartment of LX-100 RF Power/Load Center, and plug into circuit board at the
appropriate Valve Socket:
Plug intake (suction) valve into INT VLV Socket.
Plug return valve into RET VLV Socket.
Plug auxiliary valve (if applicable) into AUX VLV Socket.
COMPOOL
11056
PART#:PC-LX100
LX-100 RF POWER/LOAD CENTER
Antenna must be attached with o-ring for proper functioning. Not installing o-ring can lead
to damage of LX-100 RF Power/Load Center.
Slide orange o-ring over threaded antenna connector protruding from top of the
LX-100 RF Power/Load Center.
Screw on antenna until it stops. O-ring should be compressed by antenna.
P/N 520050

VALVE ACTUATORS

CLNR TIMER FLTR TIMER
MOTOR SWITCH MOTOR SWITCH

RECEIVER ANTENNA

CAUTION
INTAKE
VALVE
ACTUATOR
18 24 0
INT
VLV
RET
VLV
AUX
VLV
12
RETURN AUXILIARY
VALVE VALVE
ACTUATOR ACTUATOR
ENCLOSURE
Rev. F 3-26-04
