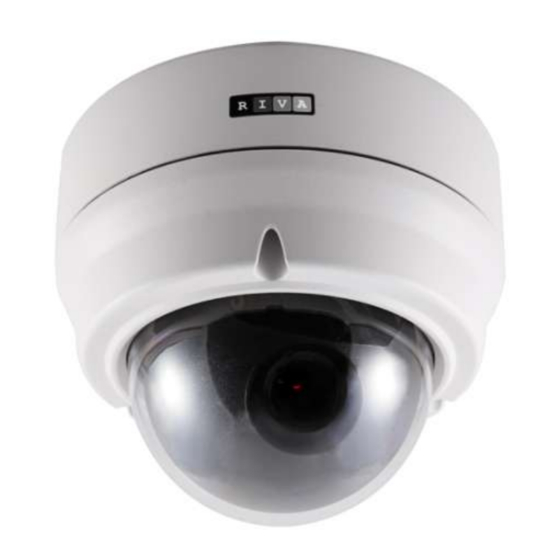

- Page 1 RC3502HD-5211 Installation Guide www.rivatech.de...
- Page 2 INFORMATION TO USER CAUTION RISK OF ELECTRIC SHOCK, DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SEERIVCE PERSONEL. This symbol is intended to alert the user to the presence of un- insulated “dangerous voltage”...
-
Page 3: Table Of Contents
Table of Contents 1. FEATURES ................4 2. PACKAGE CONTENTS ..............5 3. PART NAMES ................6 4. INSTALLATION ................8 4.1. Installation Template ..............9 4.2. Setting the Lens Position .............. 10 4.3. Setting the Image Attribute ............10 5. -
Page 4: Features
1.FEATURES Camera Full HD outdoor dome IP camera (Vandal proof) High quality compression in real time streaming 1/2.7” High Quality CMOS Image Sensor True Day / Night (ICR) Improvement of color rolling suppression Streaming Dual streaming mode (such as different codec/resolution/bit rate and so on.) ... -
Page 5: Package Contents
2. PACKAGE CONTENTS Unpack carefully and handle the equipment with care. The packaging contains: Camera DC power adaptor DC Jack Cable 9-pin and 2-pin terminal block Video out cable Screws and anchors Installation template Hex wrench driver Quick installation guide Silicon waterproof band Clamping core To prevent electromagnetic interference... -
Page 6: Part Names
3. PART NAMES ③ ④ ② ① ⑤ ⑥ ⑦ * Models herein and their appearance are subject to change without any prior notice. 1. Fan The fan and heater (underneath the black panel) are implemented for controlling temperature and moisture of the internal device. 2. - Page 7 3 minutes present and go back automatically to none video output mode (only installation process). PAL/NTSC button is located under PCB 4. Video output, audio and IO terminal connector A 9-pin terminal block is included in the device package. Connect this terminal block into this connector for cable connection of video output, audio input/output and digital 5.1.
-
Page 8: Installation
4. INSTALLATION Place the installation template that is provided in the package on the desired position of installation. Attach the waterproof silicon band on the bottom plate of the device. Drill three holes template and insert anchor blocks into the holes. Fasten the camera with screws. -
Page 9: Installation Template
The camera may fall off the ceiling even after the proper installation and mounting. To prevent any accident, make sure the ceiling is firm and stable enough to support the camera. If any reinforcement Caution is needed, consult with your safety personnel and proceed with the installation. -
Page 10: Setting The Lens Position
4.2. Setting the Lens Position Set the lens position and adjust the zoom and focus by performing procedures as below. 1) Remove the dome cover. 2) Adjust the lens to the desired position by manually moving its body in the following directions. -
Page 11: Connections
Reset 5. CONNECTIONS N / A N / A N / A N / A VIDEO AUDIO DC12V ETHERNET MICRO SD N / A N / A 1. Audio input/output The camera has a mono audio input and a mono audio output. Since the output power N / A N / A for the audio is low, an amplifier speaker is needed for a clearer sound (Do not use a... - Page 12 Do not exceed the maximum input voltage or relay rate. Caution Internal Internal Output of Output of Sensor Sensor Relay Type Voltage Type 3. Alarm (DO) connection Only the relay type is supported. Relay Rating: Max 24VAC 50mA Do not exceed the maximum relay rating. Caution Internal Device...
- Page 13 4. Video input/output The camera provides 1 video out. Please note that the analog video signal is only 3 minutes present after pushing the PAL/NTSC button and go back automatically to none video output mode (only installation process). Video Black 5.
-
Page 14: Configuration
6. CONFIGURATION 6.1.Set up network environment The default IP address of the device is 192.168.XXX.XXX. Users can identify the IP address of the device from converting the MAC address’s hexadecimal numbers, which is attached to the device. Be sure that the device and PC are on a same area network before running the installation. -
Page 15: Custom Ip Environment
3. Web streaming and device configurations are supported through ActiveX program. When the ActiveX installation window appears, authorize and install the ActiveX. 6.1.2. Custom IP Environment IPAdminTool and the manual are provided on USB stick or can download from homepage. www.rivatech.de IPAdminTool is a management tool, which automatically scans all of the network products for users to perform administrative tasks, which includes network... - Page 16 Give new unique IP address in PC environment Info last two sets and mirror other information in other boxes 3. In the IP Setup’s window, information under ‘Local Network information’ displays the user/PC’s network area information. Those information need to be incorporated to the IP Address, Subnet Mask, Gateway, and DNS boxes, except the last 2 sets of IP Address, which are to be the unique numbers for the device.
-
Page 17: View Video On Web Page
6.2. View video on web page Type the proper IP address to view the live streaming images through a web browser. root / pass The default username and password is The browser asks to install the ActiveX. Click Allow. 2. Setup.exe installation link or pop-up window appears, depends on Microsoft® Internet Explorer version. - Page 18 3. Follow the instructions of the dialog boxes and complete the installation. Once the installation is complete, start the web browser again and check if video stream is displayed in the main view frame. This software requires the Microsoft XML Parser V6 or higher. If “...
-
Page 19: View Video Using Ipadmin Tool
6.2.1. View video using IPAdmin Tool IPAdminTool automatically searches all activated network encoders and IP cameras and shows the product name, IP address, MAC address and etc. IPAdminTool is provided on USB stick or can download from homepage. www.rivatech.de 1. From the IPAdminTool’s product list, select the device by highlighting it. 2. -
Page 20: Reset
6.3. Reset 1. Push the Reset button and hold for 1~2 seconds. 2. Wait for the system to reboot. 6.4. Factory Default If you reset your device to the factory default setting, all parameters including the IP address will be initialized. To proceed back to the Factory Default reset: 1. -
Page 21: Appendix (A): Specifications
APPENDIX (A): SPECIFICATIONS Summary Camera Module Image Sensor 1/2.7” 1080p CMOS Effective 1920x1080 CMOS Pixels Scanning Progressive scanning system Resolution 1920 x 1080 ELECTRIC Min. Color: 0.5 lux, F1.2 Illumination BW: 0.001 lux, F1.2 AGC Control Auto Lens 3.0~9.0mm Vari-Focal F1.2 Day &... -
Page 22: Environment Condition
* When VCA is activated, only one camera stream will be available and frame rate is limited to 15fps@1080p. Limitations are based on V.1.3.0 firmware release and could be changed without notice. Electrical Characteristics Power Source DC 12V/PoE IEEE802.3af (Class 0) – PoE only for camera + fan 0.7A @ DC12V / 8.4W (Heater Off) Power Consumption... -
Page 23: Appendix (B): Power Over Ethernet
APPENDIX (B): POWER OVER ETHERNET The Power over Ethernet (PoE) is designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over- Ethernet (PoE) standard. IEEE 802.3af allows for two power options for Category 5 cables. The PoE module signature and control circuit provides the PoE compatibility signature and power classification required by the Power Sourcing Equipment (PSE) before applying up to 15W power to the port. - Page 24 Class Usage Minimum Power Levels Maximum Power Levels Output at the PSE at the Powered Device Default 15.4W 0.44 to 12.95W Unlike the other way, disconnecting PSE or PoE doesn’t reboot the device as long as a power adaptor is connected. Note www.rivatech.de...
-
Page 25: Appendix (C): Dimensions
APPENDIX (C): DIMENSIONS (Unit: mm) www.rivatech.de... -
Page 26: Appendix (D): Hexadecimal-Decimal Conversion Table
APPENDIX (D): HEXADECIMAL- DECIMAL CONVERSION TABLE Refer to the following table when you convert the MAC address of your device to IP address. Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec 94 148 25 37 4A 74 6F 111 B9 185... -
Page 27: Revision History
REVISION HISTORY MAN# DATE(M/D/Y) Comments 01A.01 05/02/2012 First release version 01A.02 06/01/2012 Power consumption, illumination variable update 01A.03 06/12/2012 Video, PAL/NTSC description corrected. 01A.04 06/25/2012 DI/DO specification corrected 01A.05 07/03/2012 Supporting protocol revised. (removed SOCK and SSH) 01A.06 07/04/2012 Reset/Factory reset description updated Ch.6 Configuration revised www.rivatech.de...
