Quick Installation Guide

This manual provides the instructions for the quick installation and the basic configuration of your camera with
the 30x optical zoom.
!
Please install the device after removing the bubble wrap inside the dome cover.
Caution
1. Connect cables to IP device

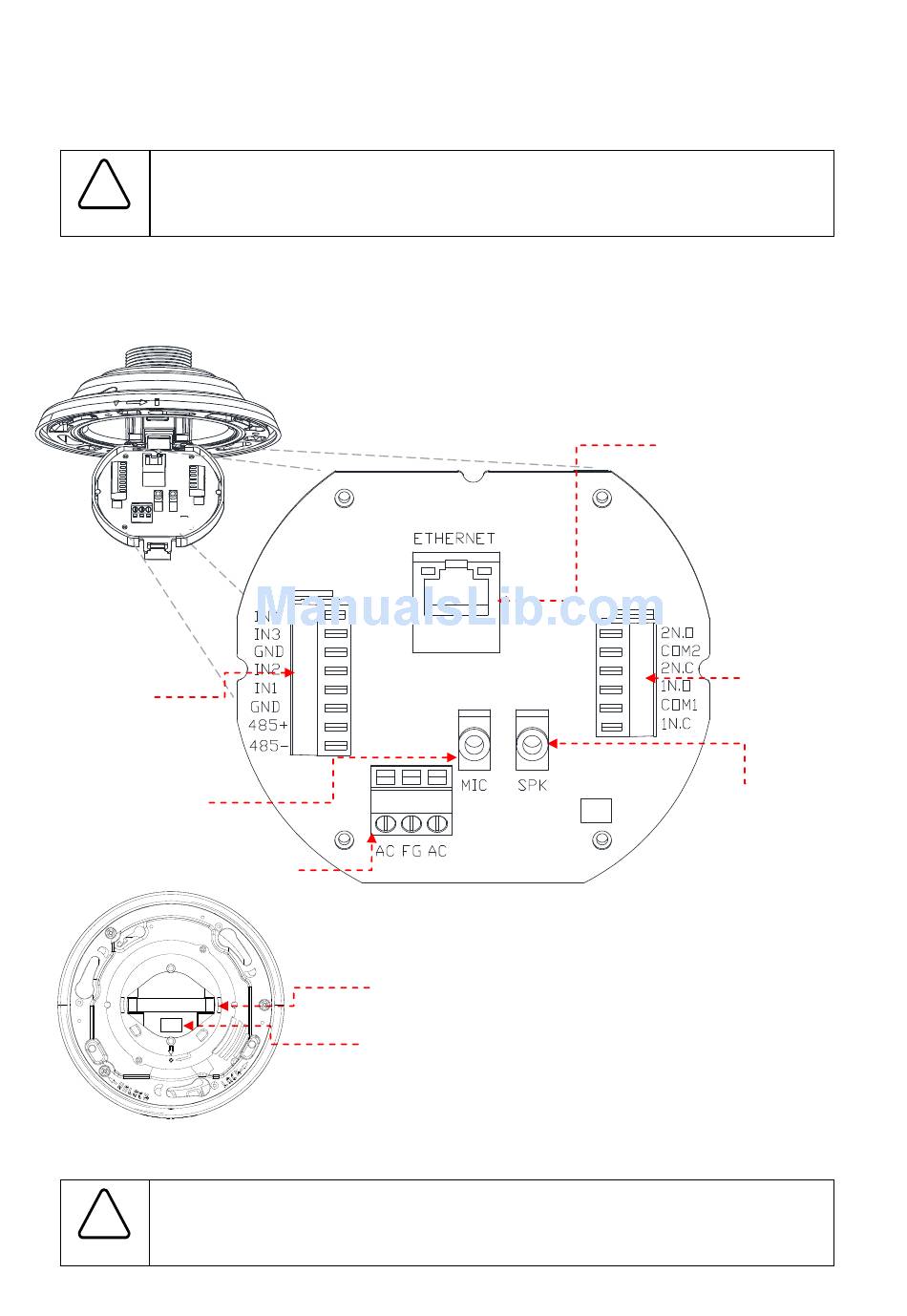

Connect the required cables to the device including a power cable and a LAN cable. To see the correct
positions of all the connectors, refer to the image below.
8-pin
terminal
block
(Digital Input)
Audio microphone
stereo jack connector
3-pin terminal block connector
< Top View of Camera's Main Body>
* Model design and appearance are subject to change without any prior notice.
!
Caution
RC4602SV01-2017-A
32-pin socket
microSD / SDHC slot
Incorrect connection may cause malfunction or damage to your IP device.
< PCB Top View >
1
LAN connector
6-pin
terminal
block
(Digital Output)
Audio speaker
stereo jack connector
