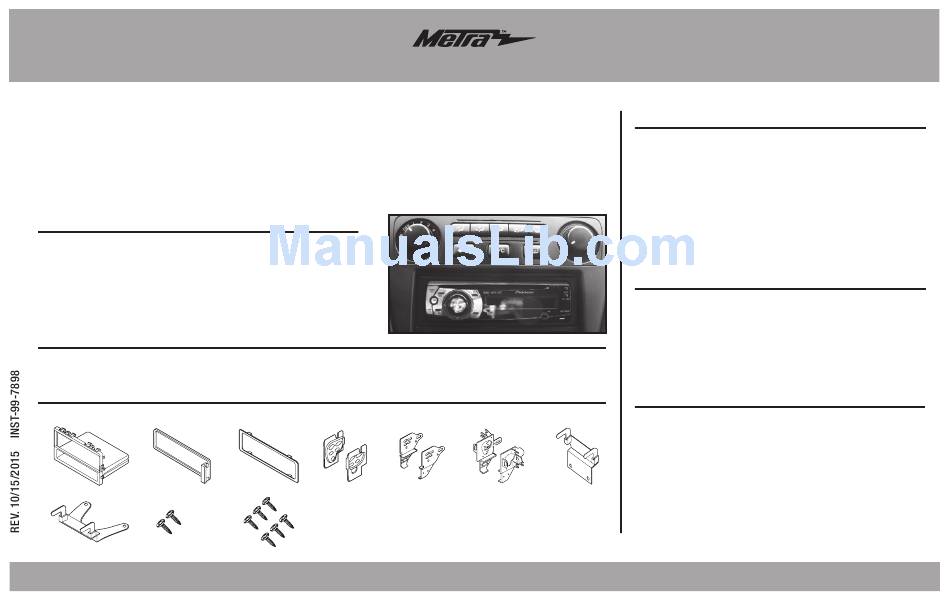

Acura/Honda/Isuzu 1990-2006

AT-807HD, IBR-807HD, CF-807HD, AW-807HD

KIT FEATURES

• DIN radio provision with pocket

• ISO DIN radio provision with pocket

• Pocket holds (2) jewel cases

KIT COMPONENTS

• A) Radio housing • B) Faceplate • C) ISO trimming • D) ISO spacers • E) ISO brackets

• F) Mounting brackets • G) Rear support bracket (R1) • H) Rear support bracket (R2)

• I) (2) #8 x 3/4" Phillips screws • J) (6) #8 x 3/8" Phillips screws

METRA. The World's best kits.

Installation instructions for part 99-7898

See application list inside

99-7898

™

metraonline.com

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness:

• 70-1720

• 70-1721

Antenna Adapter:

• Not required

TOOLS REQUIRED

• Phillips screwdriver • Cutting tool

CAUTION!

Metra recommends disconnecting the negative bat -

tery terminal before beginning any installation, unless the vehicle

manufacturer recommends against so. Please check with your local

Dealership for more information. All accessories, switches, climate

controls panels, and especially air bag indicator lights must be con -

nected before reconnecting the battery or cycling the ignition. Also,

do not remove the factory radio with the key in the on position, or the

vehicle running. It would be best to remove the key from the ignition

and then wait a few seconds before removing the factory radio.

Table of Contents

Chapters

Need help?

Do you have a question about the AT-807HD and is the answer not in the manual?

Questions and answers

Summary of Contents for Metra Electronics AT-807HD

Page 1 It would be best to remove the key from the ignition and then wait a few seconds before removing the factory radio. METRA. The World’s best kits. metraonline.com ™ © COPYRIGHT 2004-2015 METRA ELECTRONICS CORPORATION...
Page 2: Table Of Contents
99-7898 Applications Table of Contents Dash Disassembly Acura Honda - Honda Odyssey 1995-1998 ....... 11 CL ........1997-1999 Accord ......1990-2002 - Honda Odyssey 1999-2004 (without NAV) ..11 - Acura CL 1997-1999 .......... 3 Integra ......1990-2001 Civic ........ 1996-2000 - Honda Prelude 1989-1991 ........
Page 3: Dash Disassembly
99-7898 Dash Disassembly Acura CL 1997-1999 Acura Integra 1990-1993 Acura Integra 1994-2001 1. Unclip the radio trim 1. Remove (3) screws 1. Remove the cover cap located under the bezel and disconnect emergency brake and remove (2) screws exposed. from each side of the the clock and climate center console and 2.
Page 4: Acura Legend 1990-1995
99-7898 Dash Disassembly Acura Integra 1994-2001 Acura Legend 1990-1995 6. Remove (2) screws below the radio opening and 1. Remove (2) screws below the ashtray. (Figure A) remove the upper dash trim bezel. (Figure A) 2. Unclip the dash trim bezel. 7.
Page 5: Acura Rsx 2002-2006
99-7898 Dash Disassembly Acura RSX 2002-2006 Acura TL 1996-1998 (except “S” model) 1. Unclip the lower dash panel (containing the power outlet) and remove the panel. 1. Using a small screwdriver, unclip the housing and slide the radio out (it is perimeter of the radio trim bezel.
Page 6: Acura Vigor 1992-1994
99-7898 Dash Disassembly Acura Vigor 1992-1994 Honda Accord 1990-1993 1. Remove the access cap from the 6. Lift up on the center console and 1. Remove (4) screws from the lower climate control cluster and (1) screw remove. Unclip the radio trim bezel portion of the center console.
Page 7: Honda Accord 1994-1997
99-7898 Dash Disassembly Honda Accord 1998-2002 Honda Accord 1994-1997 1. Remove the ashtray and (1) 3/4” #8 1. Unsnap the clock panel, disconnect factory pocket to the assembly. disconnect the wiring. (Figure A) the wiring and remove. (Figure A) Phillips screw exposed. Open the 7.
Page 8: Honda Civic 1996-1998
99-7898 Dash Disassembly Honda Civic 1996-1998 Honda Civic 1999-2000 1. Remove (2) Phillips screws from the 1. Remove (2) Phillips screws 4. Remove (2) Phillips screws bottom edge of the glove box door and from the bottom edge of under the climate controls. remove the door.
Page 9: Honda Civic Se 2005 (Only)
99-7898 Dash Disassembly Honda Civic Honda Civic SE 2005 (only) 1999-2000 1. Unsnap and remove the trim ring from side) and remove with power side securing the factory head radio to the around floor shifter. outlet assembly. bracket assembly and remove the radio. 7.
Page 10: Honda Crv 1997-2001
99-7898 Dash Disassembly Honda CR-V 1997-2001 Honda CR-V 2002-2006 1. Open the glove box, squeeze 6. Unclip the center console and remove. 1. Remove (2) Phillips screws the retaining clips and remove from the bottom edge of the radio 7. Remove (2) Phillips screws securing the stoppers.
Page 11: Honda Odyssey 1995-1998
99-7898 Dash Disassembly Honda Odyssey 1995-1998 Honda Odyssey 1999-2004 (without NAV) Isuzu Oasis 1996-1999 1. Unclip the radio trim bezel (including the climate control panel 1. Lower the glove box assembly. 5. Remove (4) Phillips screws from the and remove). (Figure A) cupholder assembly and remove.
Page 12: Honda Prelude 1989-1991
99-7898 Dash Disassembly Honda Prelude 1989-1991 Honda Prelude 1992-1996 1. Remove (2) Phillips screws 1. Remove (2) screws from the top of located below the climate controls. the console trim bezel. (Figure A) 2. Slide the front seats back and 2.
Page 13: Honda Prelude 1997-2001
99-7898 Dash Disassembly Kit Assembly Honda Prelude 1997-2001 DIN radio provision 1. Using a panel removal tool, unclip Honda Civic 1996-1998: secure by bending the metal locking tabs down. (Figure A) the radio trim bezel and remove 1. Remove the metal DIN sleeve from (some force may be required).
Page 14: Din Radio Provision With Pocket
99-7898 Kit Assembly DIN radio provision with pocket Accord 1990-1997, Civic 1999-2000, **For Honda Accord 1994-1997 Accord 1998-2002, Odyssey CL 1997-1999, CRV 1997-2002, and CL 1997-1999: 1999-2004: Integra 1990-2001, Legend 1990- Mount the rear support bracket to 1. Remove the metal DIN sleeve from 1996, Oasis 1996-1999, Odyssey the rear support provision with (2) 1995-1998, Prelude 1989-2001, RSX...
Page 15: Iso Din Radio Provision With Pocket
99-7898 Kit Assembly ISO DIN radio provision with pocket Accord 1990-1997, Civic 1999-2000, 5. Locate the factory wiring harness and Accord 1998-2002, and then mount with the CL 1997-1999, CRV 1997-2002, Integra 1990- antenna connector in the dash. Metra Odyssey 1999-2004: screws supplied with the 2001, Legend 1990-1996, Oasis 1996-1999, recommends using the proper mating...
Page 16 Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow. Metra recommends MECP certified technicians METRA. The World’s best kits. metraonline.com ™ © COPYRIGHT 2004-2015 METRA ELECTRONICS CORPORATION...
Page 17 Sería mejor retirar la llave de la ignición y esperar unos cuantos segundos antes de quitar el radio de fábrica. METRA. The World’s best kits. metraonline.com ™ © COPYRIGHT 2004-2015 METRA ELECTRONICS CORPORATION...
Page 18 99-7898 Aplicaciones Indice Desmontaje tablero Acura Honda - Honda Odyssey 1995-1998 ....... 11 CL ........1997-1999 Accord ......1990-2002 - Honda Odyssey 1999-2004 (sin NAV) ....11 - Acura CL 1997-1999 .......... 3 Integra ......1990-2001 Civic ........ 1996-2000 - Honda Prelude 1989-1991 ........ 12 - Acura Integra 1990-1993 ........
Page 19: Desmontaje Tablero
99-7898 Desmontaje tablero Acura CL 1997-1999 Acura Integra 1990-1993 Acura Integra 1994-2001 1. Desenganche el bisel de 1. Quite los (3) tornillos 1. Quite la tapa de la cubierta localizada debajo del freno la moldura del radio y de emergencia y quite los (2) tornillos expuestos. a cada lado de la desconecte el cableado consola central y quite...
Page 20: Acura Legend 1990-1995
99-7898 Desmontaje tablero Acura Integra 1994-2001 Acura Legend 1990-1995 6. Quite los (2) tornillos debajo de la apertura del 1. Quite los (2) tornillos de debajo del cenicero. (Figura A) radio y quite el bisel de la moldura del tablero 2.
Page 21: Acura Rsx 2002-2006
99-7898 Desmontaje tablero Acura RSX 2002-2006 Acura TL 1996-1998 (excepto el modelo “S”) 1. Desenganche el tablero central inferior (que contiene el tomacorriente) y quite el panel. 1. Usando un destornillador pequeño, la carcasa metálica y deslice el radio desenganche el perímetro del bisel hacia afuera (no es necesario retirar Deslice en la apertura y quite los (2) tornillos Phillips de la base del radio de fábrica.
Page 22: Acura Vigor 1992-1994
99-7898 Desmontaje tablero Acura Vigor 1992-1994 Honda Accord 1990-1993 1. Retire la tapa de acceso del 6. Levante la consola central y retire. 1. Quite los (4) tornillos de la porción conjunto del control del clima y (1) Desenganche el bisel de la moldura inferior de la consola central.
Page 23: Honda Accord 1994-1997
99-7898 Desmontaje tablero Honda Accord 1998-2002 Honda Accord 1994-1997 6. Corte y quite todos los ganchos de 1. Suelte a presión el panel del radio, 6. Quite los (2) tornillos que sujetan la Retire el cenicero y (1) tornillo Phillips #8 desconecte el cableado y retire.
Page 24: Honda Civic 1996-1998
99-7898 Desmontaje tablero Honda Civic 1996-1998 Honda Civic 1999-2000 1. Quite los (2) tornillos Phillips del borde 1. Quite los (2) tornillos 4. Quite los (2) tornillos inferior de la puerta de la guantera y Phillips de abajo de los Phillips del borde inferior quite la puerta.
Page 25: Honda Civic Se 2005 (Solamente)
99-7898 Desmontaje tablero Honda Civic Honda Civic SE 2005 (solamente) 1999-2000 1. Suelte a presión y retire el anillo de la 4. Suelte a presión los lados de la consola, 7. Quite (4) tornillos Phillips de cada moldura de alrededor de la palanca de (2 chasquidos por lado), y retire con el lado que sujetan el radio de fábrica al 7.
Page 26: Honda Crv 1997-2001
99-7898 Desmontaje tablero Honda CR-V 1997-2001 Honda CR-V 2002-2006 1. Abra la guantera, apriete los ganchos 6. Unclip the center console and remove. 1. Quite los (2) tornillos Phillips de retención y quite los topes. del borde inferior del bisel de la 7.
Page 27: Honda Odyssey 1995-1998
99-7898 Desmontaje tablero Honda Odyssey 1995-1998 Honda Odyssey 1999-2004 (sin NAV) Isuzu Oasis 1996-1999 1. Desenganche el bisel de la moldura del radio (incluyendo el panel del 1. Baje el ensamble de la guantera. 5. Quite (4) tornillos Phillips del control de clima y quítelo.
Page 28: Honda Prelude 1989-1991
99-7898 Desmontaje tablero Honda Prelude 1989-1991 Honda Prelude 1992-1996 1. Quite los (2) tornillos Phillips 1. Quite los (2) tornillos de la parte localizados debajo de los controles superior del bisel de la moldura de del clima. (Figura A) la consola. 2.
Page 29: Honda Prelude 1997-2001
99-7898 Desmontaje tablero Ensamble del kit Honda Prelude 1997-2001 Provisión de radio DIN 1. Con una herramienta de remoción Honda Civic 1996-1998: 4. Slide the radio into the sleeve until secure. (Figura A) de paneles, desenganche el bisel 1. Quite la manga de metal DIN del radio de mercado secundario.
Page 30: Provisión De Radio Din Con Cavidad
99-7898 Ensamble del kit Provisión de radio DIN con cavidad Accord 1990-1997, Civic 1999-2000, **Para Honda Accord 1994-1997 Accord 1998-2002, Odyssey CL 1997-1999, CRV 1997-2002, y CL 1997-1999: 1999-2004: Integra 1990-2001, Legend 1990- Monte el soporte de apoyo trasero 1. Quite la manga de metal DIN del 1996, Oasis 1996-1999, Odyssey en la provisión de soporte trasero 1995-1998, Prelude 1989-2001, RSX...
Page 31: Provisión De Radio Iso Din Con Cavidad
99-7898 Ensamble del kit Provisión de radio ISO DIN con cavidad Accord 1990-1997, Civic 1999-2000, 5. Localice el arnés de cableado de fábrica y el Accord 1998-2002, tornillos suministrados con la CL 1997-1999, CRV 1997-2002, Integra 1990- conector de la antena en el tablero y haga Odyssey 1999-2004: radio.
Page 32 800-354-6782 para obtener más información y avance hacia un futuro mejor. Metra recomienda técnicos con certificación del Programa de Certificación en Electrónica Móvil (Mobile Electronics Certification Program, MECP). METRA. The World’s best kits. metraonline.com ™ © COPYRIGHT 2004-2015 METRA ELECTRONICS CORPORATION...
