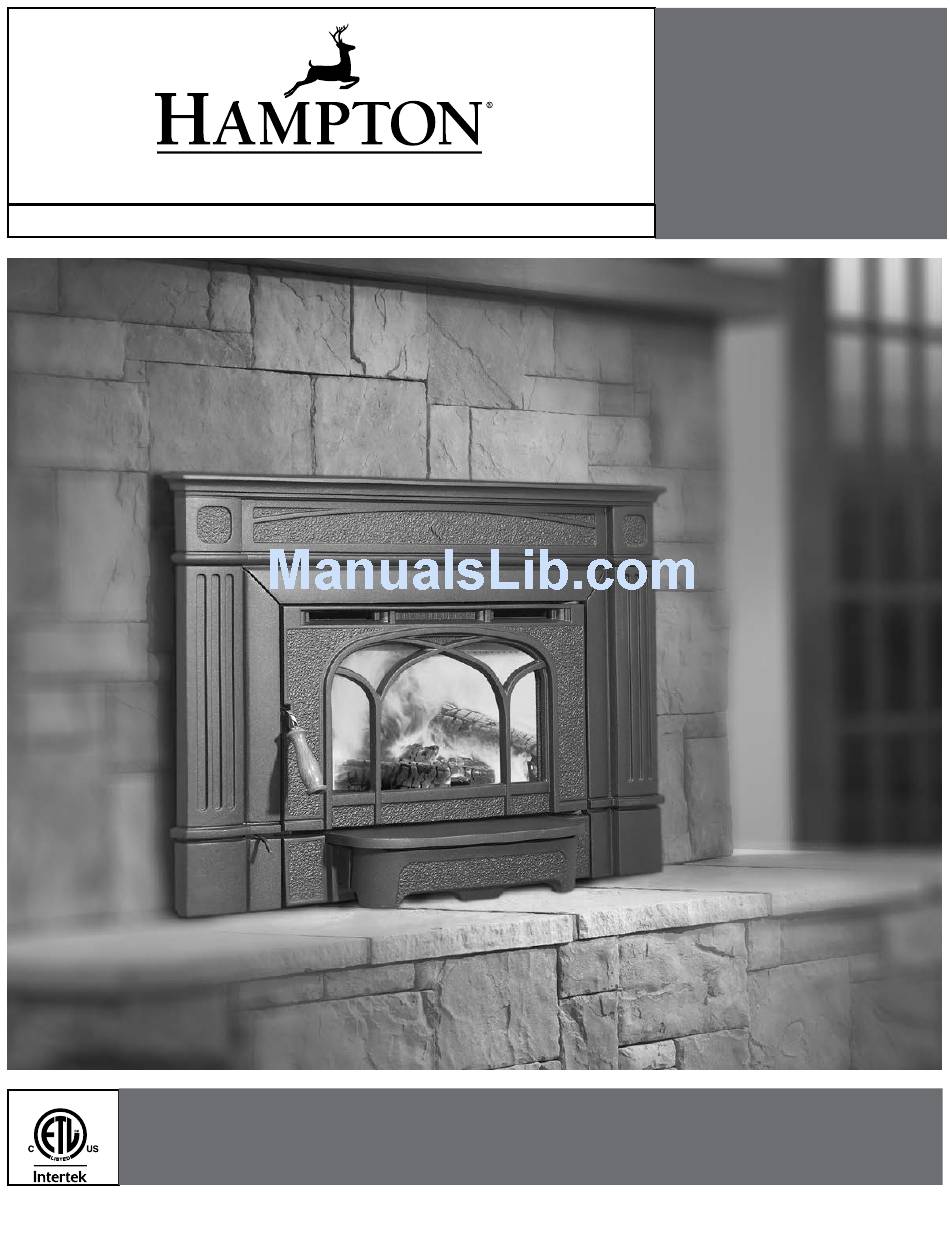

HI200
Wood Cast
Insert
Owner's & Installation Manual
www.hampton-fire.com
Tested by:
Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4
919-555
05.15.15
Advertisement
Table of Contents
Related Manuals for HAMPTON BAY HI200
Summary of Contents for HAMPTON BAY HI200
- Page 1 HI200 Wood Cast Insert Owner's & Installation Manual www.hampton-fire.com Tested by: Installer: Please complete the details on the back cover and leave this manual with the homeowner. Homeowner: Please keep these instructions for future reference. FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4 919-555 05.15.15...
- Page 2 The following statements are required by the Environmental Protection Agency: “This manual describes the installation and operation of the Regency HI200 wood heater. This heater meets the 2015 U.S. Environmental Protection Agency’s crib wood emission limits for wood heaters. Under specific test conditions this heater has been shown to deliver heat at rates ranging from 10,600 BTU/hr. to 34,700 BTU/hr”...
-
Page 3: Table Of Contents
Installation Into a Masonry Fireplace ......11 Cast Faceplate ............24 Stainless steel smoke deflector adjustment / replace- ment................12 Fan & Cast Faceplate Installation........13 Brick Flue Baffle & Secondary Air Tube Installation ..15 WARRANTY Firebrick Assembly ............15 Draft Control ..............15 Warranty ..............27 HI200 Hampton Wood Cast Insert... -
Page 4: Copy Of Safety Label
This is a copy of the label that accompanies each HI200 Wood Insert. We have printed a copy of the contents here for your review. NOTE: Hampton units are constantly being improved. Check the label on the unit and if there is a difference, the label on the unit is the correct one. -
Page 5: Dimensions
38-5/16 6" (152mm) Diameter STANDARD FLUE ADAPTOR (171-932) Door Width NOTE: Before assembling your Insert, use these dimensions to en- sure appropriate clearances will be met (refer to Masonry and Factory Built Fireplace Clearances section). HI200 Hampton Wood Cast Insert... -
Page 6: Unit Dimensions With
2-7/8 39-13/16 38-5/16 6" (152mm) Diameter OFFSET FLUE ADAPTOR (171-936) NOTE: Before assembling your Insert, use these dimensions to en- sure appropriate clearances will be met (refer to Masonry and Factory Built Fireplace Clearances section). HI200 Hampton Wood Cast Insert... -
Page 7: Before Installing Your Insert
Emissions from burning wood or gas could contain chemicals known to the State of Cali- fornia to cause cancer, birth defects or other reproductive harm. HI200 Hampton Wood Cast Insert... -
Page 8: Masonry And Factory Built Fireplace Clearances
(hr)(ft)( R = 1/k x T = 1/0.84 x .75 = 0.893. specified R of 0.893. Since proposed system R is greater than required, the system is Thermal Resistance: acceptable. R = (ft )(hr)( )(K) HI200 Hampton Wood Cast Insert... -
Page 9: Installing Your Insert
1/2 to 1 inch of the leveling bolt. Diagram 2 Flue Adaptor Secure adaptor using 3 screws - 1 in the front and 1 each on the left and right side. HI200 Hampton Wood Cast Insert... - Page 10 Diagram 7 NOTE: The pull rod should not be thrown away. It should be kept if the stove is ever needed to be removed from the fireplace. Diagram 5: Pull Rod In Place 10 | HI200 Hampton Wood Cast Insert...
-
Page 11: Installation Into Afactory Built Fireplace
Ensure the heater is installed in areas that are not too close to neighbors or in valleys that would cause unhealthy air quality or nuisance conditions. 3a) Full Flue Liner (No Cleanout Required) HI200 Hampton Wood Cast Insert... -
Page 12: Stainless Steel Smoke Deflector Adjustment / Replacement
To replace the deflector, loosen off both bolts and slide defector upward and out. Install new defector and hand tighten bolts. Ensure positive location of the defector prior to hand tightening. WARNING: Operation of the unit with out proper installation of smoke deflector will void warranty. 12 | HI200 Hampton Wood Cast Insert... -
Page 13: Fan & Cast Faceplate Installation
Note: If screws do not lineup, loosen the 2 screws per side as shown in Diagram 2 and adjust left side and right side facia. Tighten the 2 screws per side and install the fan on the unit. HI200 Hampton Wood Cast Insert 02/19/09 918-745b... - Page 14 Do not turn the fan ON until your insert has reached operating temperature or at least 30 minutes after starting fi re. Ashlip Diagram 6 Installer: Please record unit serial number here before installing blower. Serial No.______________________________ 14 | HI200 Hampton Wood Cast Insert 918-745b 02/19/09...
-
Page 15: Brick Flue Baffle & Secondary Air Tube Installation
2) Slide the left baffle brick over the front air tube and then slide it back over the rear air tube. HI200 Hampton Wood Cast Insert... -
Page 16: Operating Instructions
Two dry pieces banged together sound hollow; wet pieces sound solid and dull. • Dry wood weighs much less than wet wood. • Split a piece of wood. If the exposed surface feels damp, the wood is too wet to burn. 16 | HI200 Hampton Wood Cast Insert... -
Page 17: First Fire
9) During the first few hours it may be more dif- ficult to start the fire. As you dry out your fire brick and your masonry flue (if applicable), your draft will increase. Fan Wiring Diagram HI200 Hampton Wood Cast Insert... -
Page 18: Ash Disposal
If the insert or its flue baffle begin to glow, you are overfiring. Stop adding fuel and close the draft control. Overfiring can cause extensive damage to your stove including warpage 18 | HI200 Hampton Wood Cast Insert... -
Page 19: Maintenance
After re-installing the door, carefully swing open and check the clearance to the Right Hand Cast Side. If tight or rubbing, loosen the 7/16 nuts and adjust the clearance and then re-tighten. Cleaning & Maintaining Your Wood Stove HI200 Hampton Wood Cast Insert... -
Page 20: Handle Replacement
4) Re-secure the Latch to the Mounting Bracket using 2 inner hex bolts. 5) Re-secure the Latch Assembly to the unit using the 2 outer hex bolts. Cleaning & Maintaining Your Wood Stove 20 | HI200 Hampton Wood Cast Insert... - Page 21 5) Re-secure the Latch Assembly to the unit using 2 bolts. Confirm proper location of the door catch so that it closes tight, Latch Assembly freely. removed from unit. Cleaning & Maintaining Your Wood Stove HI200 Hampton Wood Cast Insert...
- Page 22 Check glass for cracks Replace if required. Clean blower motor Disconnect power supply. Remove and clean blower. *DO NOT LUBRICATE* Inspect and clean chimney Annual professional chimney cleaning recommended. Cleaning & Maintaining Your Wood Stove 22 | HI200 Hampton Wood Cast Insert...
-
Page 23: Parts List
Air Tube - 1" (Qty: 1) 36) 033-953 Air Tube - 3/4" (Qty: 1) 38) 073-955 Baffle (2/set) 39) 820-483 Stainless smoke deflector 40) 171-932 Standard Flue Adaptor 171-936 Offset Flue Adaptor 919-555 Manual *Not available as a replacement part. HI200 Hampton Wood Cast Insert... -
Page 24: Firebrick
81) * Brick Partial: 1-1/4" x 1-1/4" x 9" 84) * Brick Partial: 1-1/4" x 4-1/2" x 8" 85) * Brick Partial: 1-1/4" x 4-1/4" x 8" *Not available as a replacement part. 24 | HI200 Hampton Wood Cast Insert... - Page 25 HI200 Hampton Wood Cast Insert...
- Page 26 26 | HI200 Hampton Wood Cast Insert...
-
Page 27: Warranty
FPI will not be liable for acts of God, or acts of terrorism, which cause malfunction of the appliance. Performance problems due to operator error will not be covered by this warranty policy. * Subsidy according to job scale as predetermined by FPI. Revised: 01-04-07 HI200 Hampton Wood Cast Insert... - Page 28 Register your Regency warranty online ® www.regency-fire.com Reasons to register your product online today! • View and modify a list of all your registered products. • Request automatic email notification of new product updates. • Stay informed about the current promotions, events, and special offers on related products.
