HAMPTON BAY Wood Insert HI200 Specifications

Model
Cordwood BTU's 55,000 BTU's
Emissions (grams/hr)
3.0 grams/hr
EPA Certifi ed
Flue Size 6" (152mm)
Max. Log Size

Minimum Fireplace Opening:

Height
Width
Depth:
(w/ standard fl ue adaptor)
(w/ offset fl ue adaptor)
This manual is intended to be a Sales Reference Guide only.
Do NOT use for actual framing and installation of any unit.
Some specifi cations may change without notice.
You must use the actual manual for exact installation specifi cations.
WARNING
Failure to maintain required clearances is a major cause of chimney related fi res.
Installation of this fi replace must comply with these clearances
Please note: Due to ongoing product development, product appearance and specifi cations
are subject to change without notice.

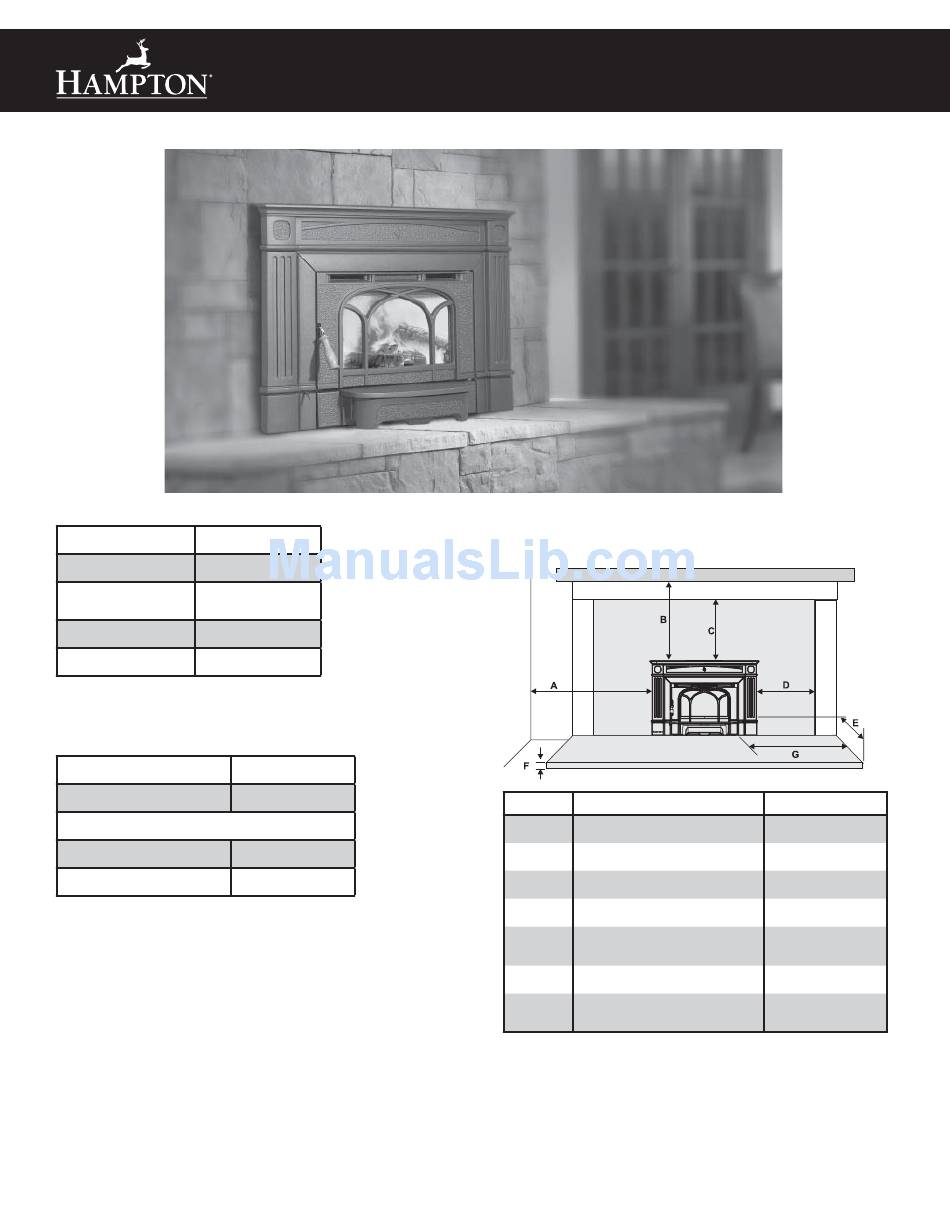

Hampton HI200 Small Cast Iron Wood Insert
HI200
18"
19-5/8" (499mm)
23" (584mm)
15-1/16" (383mm)
17-11/16" (449mm)

Clearance Requirements

Dimension Description
A Adjacent Side Wall (to side)
B Mantle (to top)**
C Top Facing (to top)
D Side Facing (to side)
E Minimum Hearth Extension*
F Minumim Heath Thickness*
G Minimum Hearth Side Extension
Side and Top facing is a maximum of 1.5" thick.
Floor protection must non-combustible, insulative material with an R value of 1.1
or greater.
* If the hearth extension is fl ush with the fl oor (F) it must extend 19.5" in front
of the body face (E).
Note: Hearth Extension Width (G) is measured from edge of fuel door to
side of hearth.
** A non-combustible mantel may be installed at a lower height if the framing
is made of metal studs covered with a non-combustible board.
HI200 Wood Insert
HI200
15" (381mm)
20" (508mm)
14" (356mm)
7-3/8" (187mm)
16" (406mm) US
18" (457mm)Can
1-1/2" (38mm)
6" (152mm) US
8" (203mm)Can
