Wall-Mount Installation

Mounting the Wall-Mount

2-6
The Optica Wall-Mount unit is designed to mount on a flat, vertical
surface, such as a wall or panel. To mount the wall-mount version, see
Figure 2-6 and Figure 2-7 below.

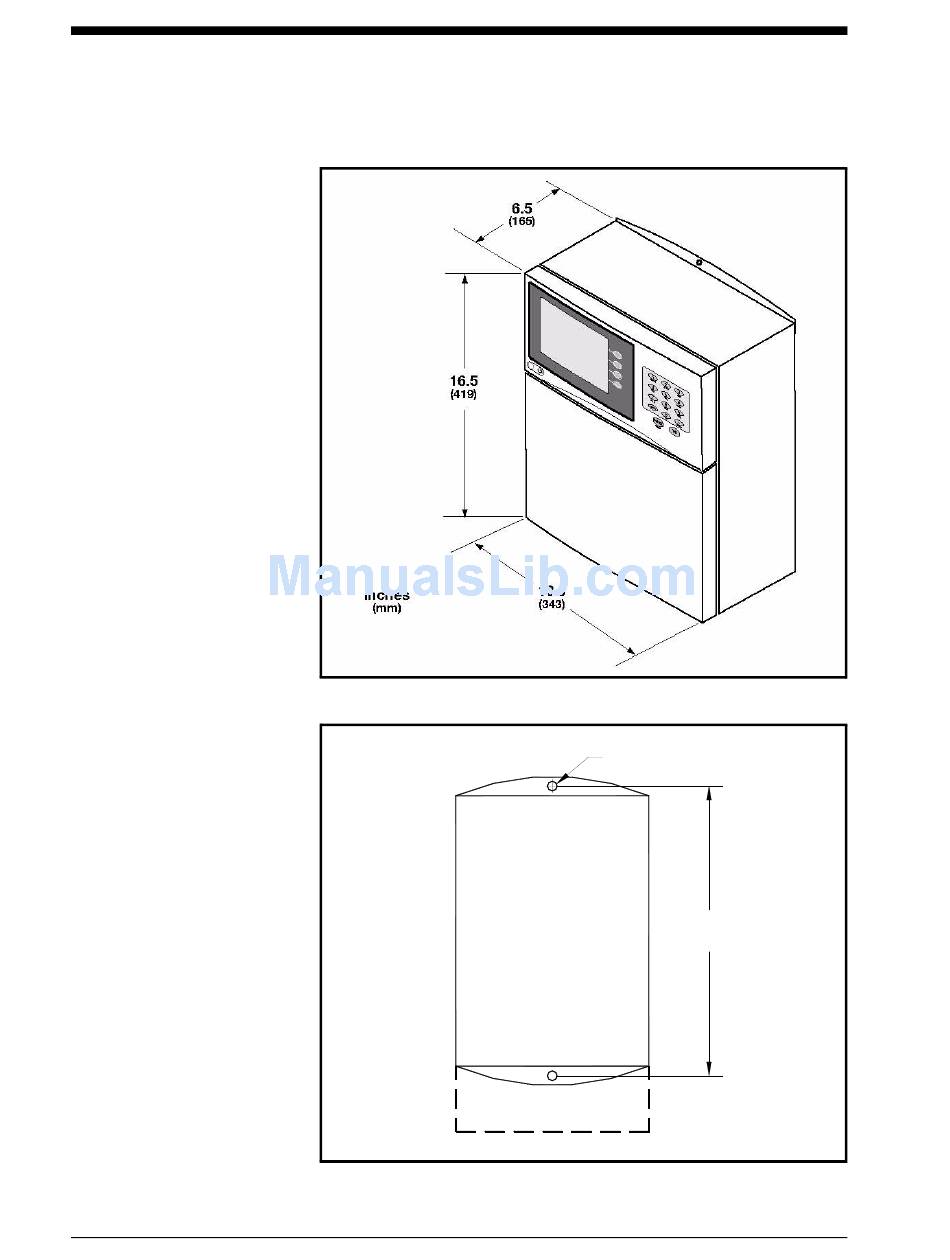

Figure 2-6: Optica Wall-Mount Dimenisons
Allow adequate space
below unit for cabling.
Figure 2-7: Optica Wall-Mount - Mounting Hole Locations
Ø.261 (6.63 mm)
2 places
1/4" hardware
is recommended.
(443 mm)
17.43"
Installation
