Installation
This chapter explains the installation of the benchtop and wall-mount
versions of the Optica, the various sensors used with the system, and
the I/O and power wiring.
The Optica benchtop dimensions are shown in Figure 2-1 below. Two
feet on the bottom of the case can be unfolded to raise up the front for
easier viewing, if desired.

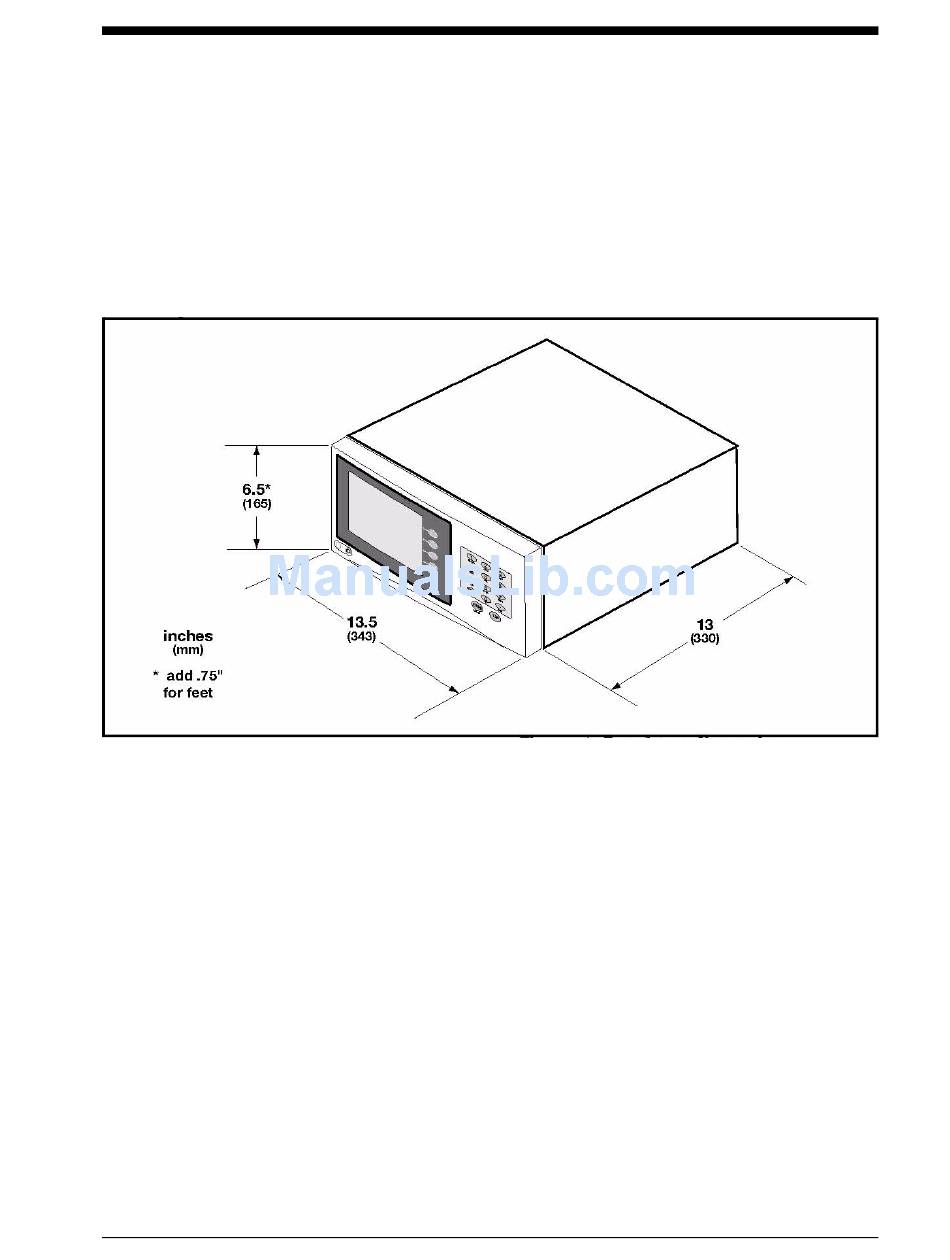

Figure 2-1: Optica Benchtop Dimenisons
January 2006
2-1
