Using the Rack Mounting
Option
2-2
There is an optional kit for mounting the benchtop unit in a standard
19-inch rack (see Figure 2-2 below, Figure 2-3 on page 2-3, and
Figure 2-4 on page 2-4). The two brackets are attached to the front
panel using four No. 8 screws. The Optica is mounted to the brackets
using the eight mounting holes located just in front of and behind the
unit's feet.

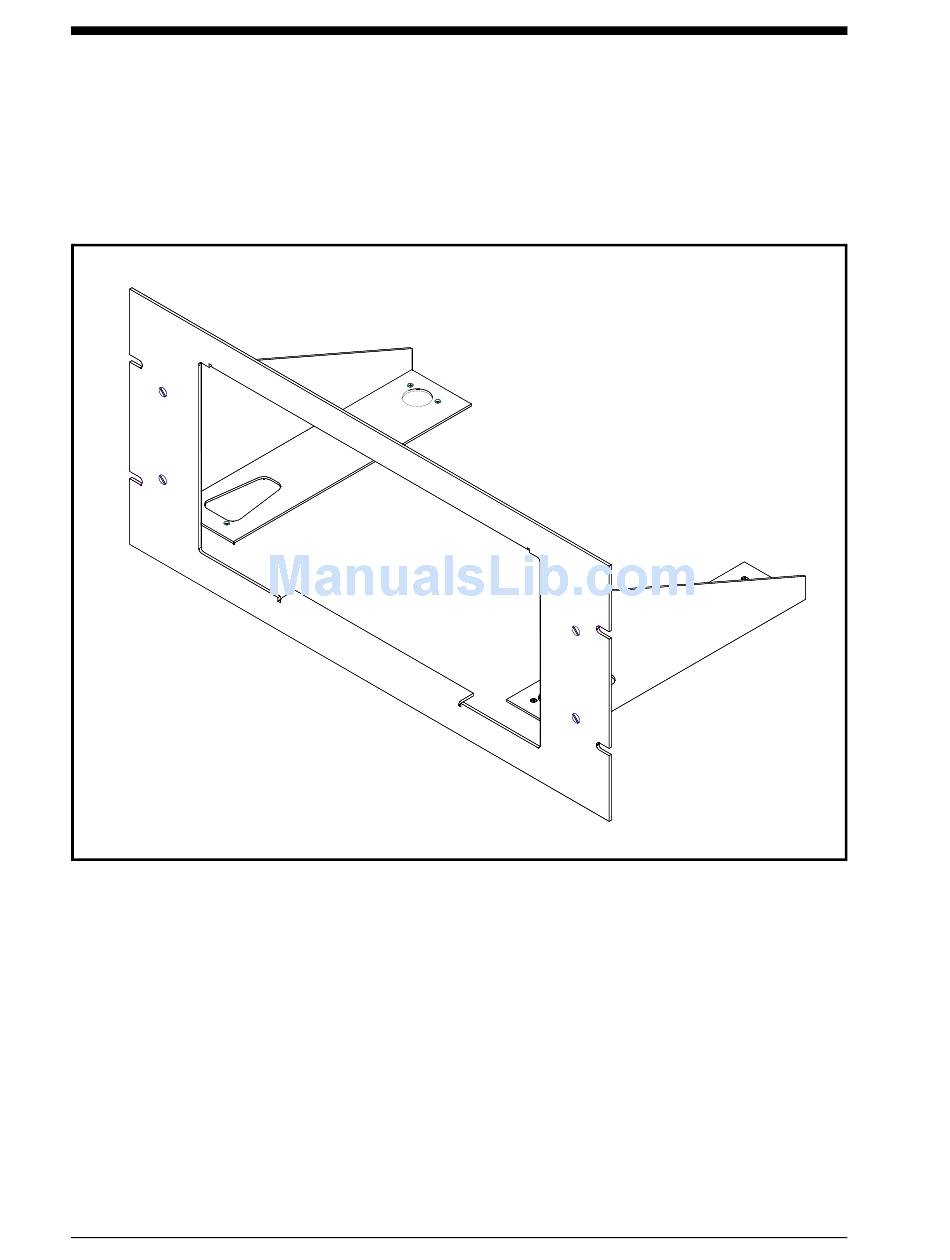

Figure 2-2: Optica Rack-Mount Adapter
Installation
