USER MANUAL
Safety Information...............................................................3
Specifications.....................................................................4
Main Power Connection........................................................5
DMX-512 Connection...........................................................6
Rigging the Fixture..............................................................6
Main Control Menu..............................................................7
DMX Profile...................................................................................10
Cleaning & Maintenance...............................................................11
Parts List.......................................................................................11
Advertisement
Table of Contents
Related Manuals for Mega Lite AXIS CYCLOPS
Summary of Contents for Mega Lite AXIS CYCLOPS
-
Page 1: Table Of Contents

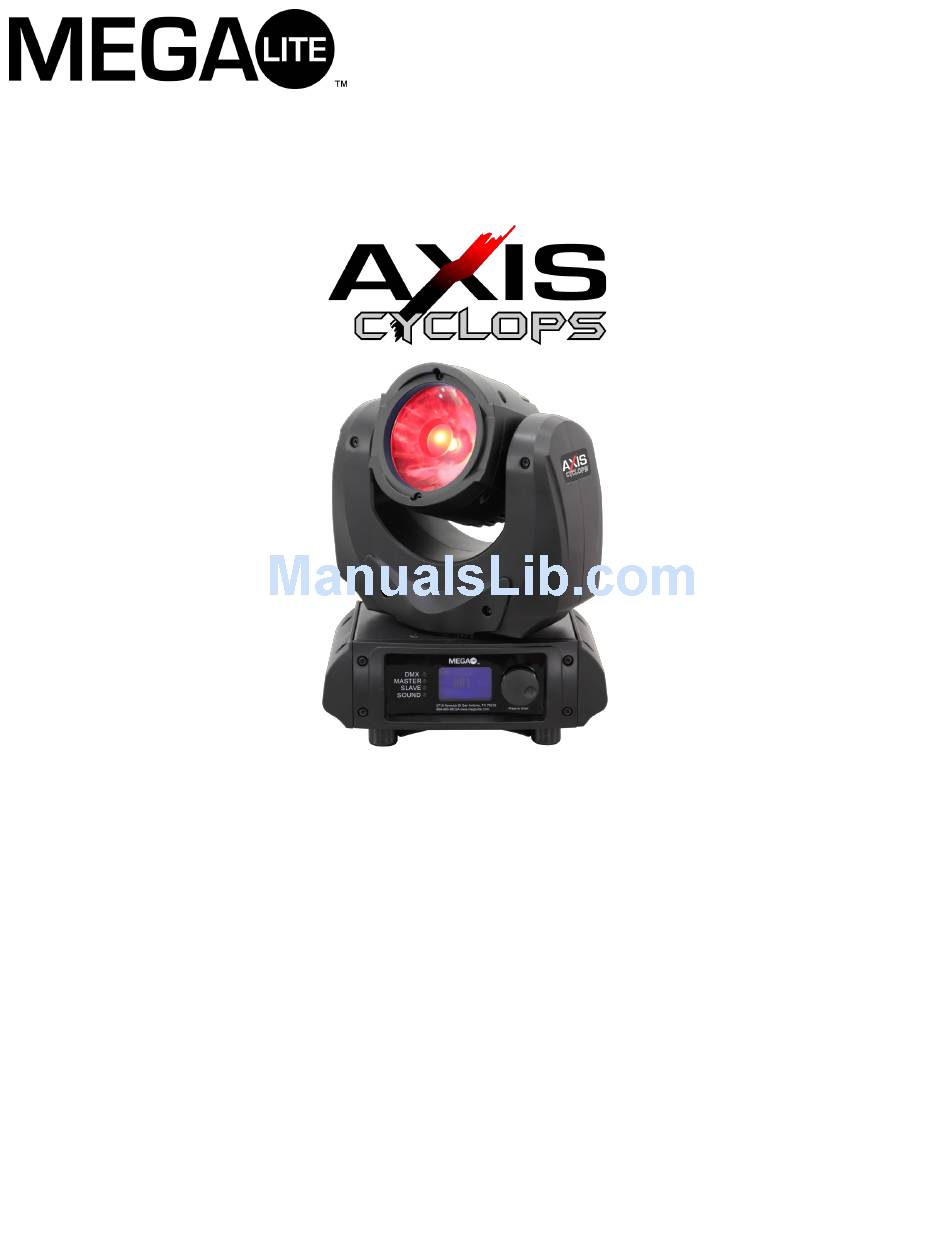

USER MANUAL Table of Contents Safety Information……………………………………...………………3 Specifications………………………………………...…………………4 Main Power Connection…………………………...…………………..5 DMX-512 Connection……………………………..…………………...6 Rigging the Fixture……………………………….…………………….6 Main Control Menu……………..…………………………………..….7 DMX Profile...................10 Cleaning & Maintenance...............11 Parts List..................11... -
Page 3: Table Of Contents Safety Information
Check that the unit has not been damaged during transport Protection Against Fire 1. Maintain a minimum of 1 foot distance from any type of flame. 3. Replace fuse only with the specified type and rating. 4. Do Not install the unit to close to a heat source. 5. -
Page 4: Specifications
Specifications Part Numbers Fixture Lamp Flight Case 1160 - AXIS Cyclops Osram 60W RGBW LED 1160-RC4 4 Unit Road Case Mechanical Specifications Pan: Infinite° Tilt: Infinite° 5 ” 9.25 ” DMX Connectors: 3 and 5-pin XLR connectors 3.5 ” Power Connectors:... -
Page 5: Main Power Connection
Main Power Connection Caution! Do not connect fixture to a dimmer system. This unit must be earthed. (electronically grounded) Replace fuse only with the specified type and rating. This device is equipped with a auto switching power supply that will allow you to work from 100V-240V 50/60Hz The occupation of the connection-cable is as follows: Cable (USA) Cable (EU) -
Page 6: Dmx-512 Connection
DMX-512 Connection The fixture is equipped with 3 and 5 pin XLR Sockets for DMX input and output. The sockets are wired in parallel. Only use a shielded twisted pair cable designed for RS-485 and 3 or 5 pin XLR plugs and connectors in order to connect the controller with the fixture or the fixture with another. -
Page 7: Main Control Menu
The control board on the fixture base is your interface to access and Mega-Lite Master control all the functions on the unit. Its LCD display gives you views of Axis Cyclops Slave the options and functions. The following will explain each function and Sound its options. -
Page 8: Slave Mode
DMX Address Manual Control Channel Mode Dimmer Curve Demo Mode Press the knob to select Manual control Functions. Select the fixtures function you would like to manually control . (Note The fixture will recall the set manual control attributes even after the fixture is turned off and on) Manual Control Slave Mode DMX Address... - Page 9 Display Rotate Back Light Back Light Version Factory Set Press the knob to select the Back Light option yes to leave light on or No to have the back light turn off after no display movement for 15 seconds Reset Calibration Display Rotate Version...
-
Page 10: Dmx Profile
DMX Profile Axis Cyclops 9 Ch Mode DMX Channel Function Description Value Init Value Pan Course 0-127 Forward (fast to slow) 128-191 Backwards (slow to fast) 192-255 Tilt Course 0-127 Tilt Forward (fast to slow) 128-191 Backwards (slow to fast) -
Page 11: Cleaning & Maintenance
Cleaning and maintenance Installation Maintenance: The operator has to make sure that the unit is operating safely and has the installa- tions and electronics checked by an expert every 2 years. The following points have to be considered during the inspection: 1) All screws used for installing the device or part of the device have to be tightly connected and must not be corroded. -
Page 12: Warranty Information
Warranty Information Warranty Conditions -Unless otherwise stated in writing, your product is covered by a one year parts and labor limited warranty. -LEDs are not guaranteed to match in color temperature or output. -It is the owner’s responsibility to furnish receipts or invoices for verification of purchase, date, and reseller or distributor. If purchase date cannot be provided, date of manufacture will be used to determine warranty period.
