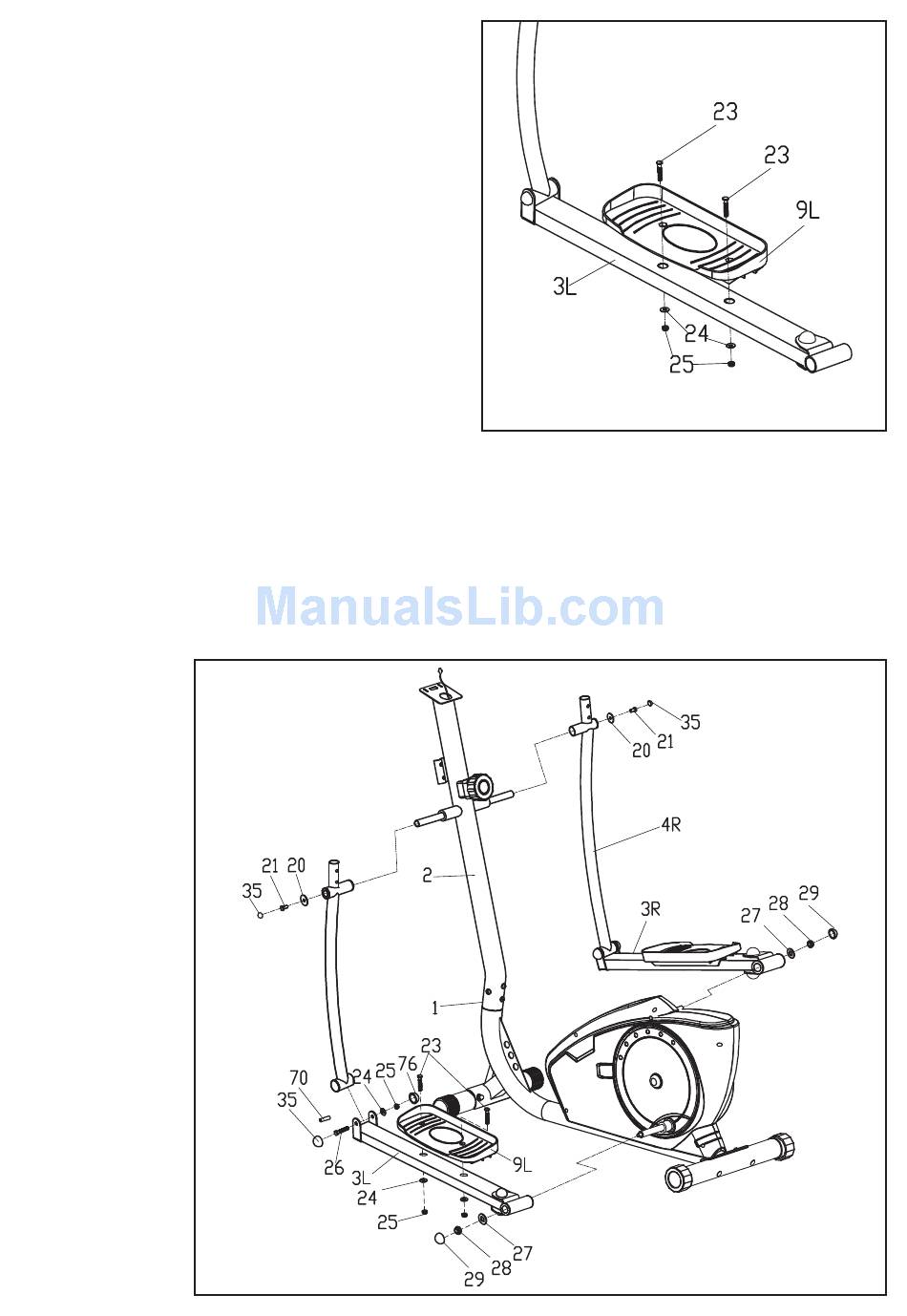

STEP 3
Attach the Swing tube (4L/R) to the Axle of Handle-
bar post (2) with Hex bolt (21) and Flat washer (20).
But don't tighten them firstly.
STEP 4
Attach the Pedal tube (3L/R) to the Cross bar (78) with Flat washer (27)and Nylon nut(28), then tighten the
Hex bolt (21) and Nylon nut (28). Finally cover the End cap (29)&(35) respectively.
7
