Fig. 5.5 shows an example from hyperspectral imaging where the presence of spectral lines at
known regions need to be inspected. By using a MROI only a 636x54 region need to be readout
and a frame rate of 1322 fps (D-80), 1586 fps (D-96 or L-96) or 3038 fps (DR1-192, double rate
enabled) can be achieved. Without using MROI the resulting frame rate would be for a
636x1088 ROI 71 fps (D-80), 85 fps (D-96 or L-96) or 169 fps (DR1-192, double rate enabled).
( 0 , 0 )
C h e m i c a l A g e n t

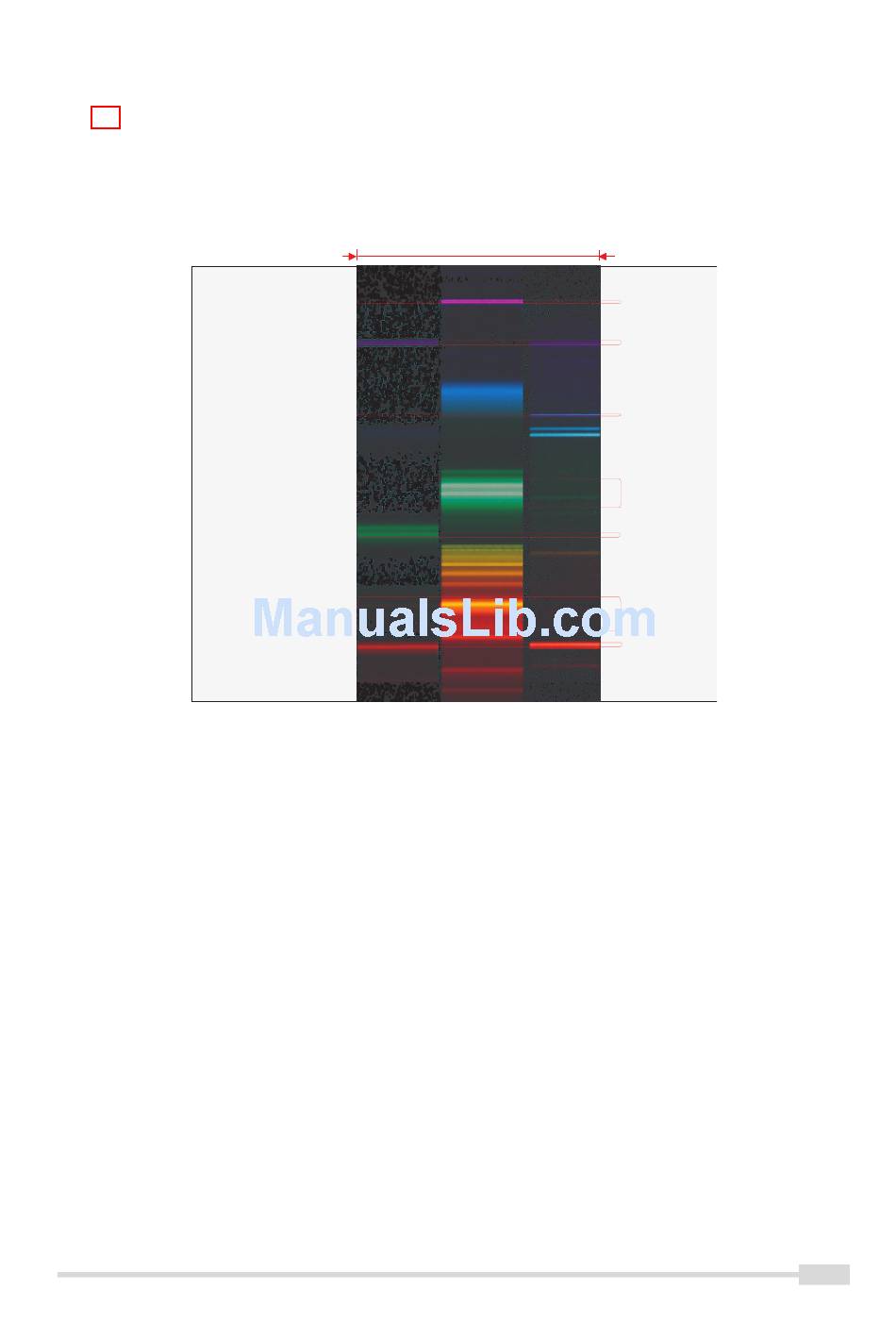

Figure 5.5: Multiple Regions of Interest in hyperspectral imaging
