Photon Focus D/L-2048 User Manual page 17

3. Open again the Local Area Connection Properties window (see Fig. 3.4) and click on the
Configure button. In the window that appears click on the Advanced tab and click on Jumbo
Frames in the Settings list (see Fig. 3.6). The highest number gives the best performance.
Some tools however don't support the value 16128. For this guide it is recommended to
select 9014 Bytes in the Value list.

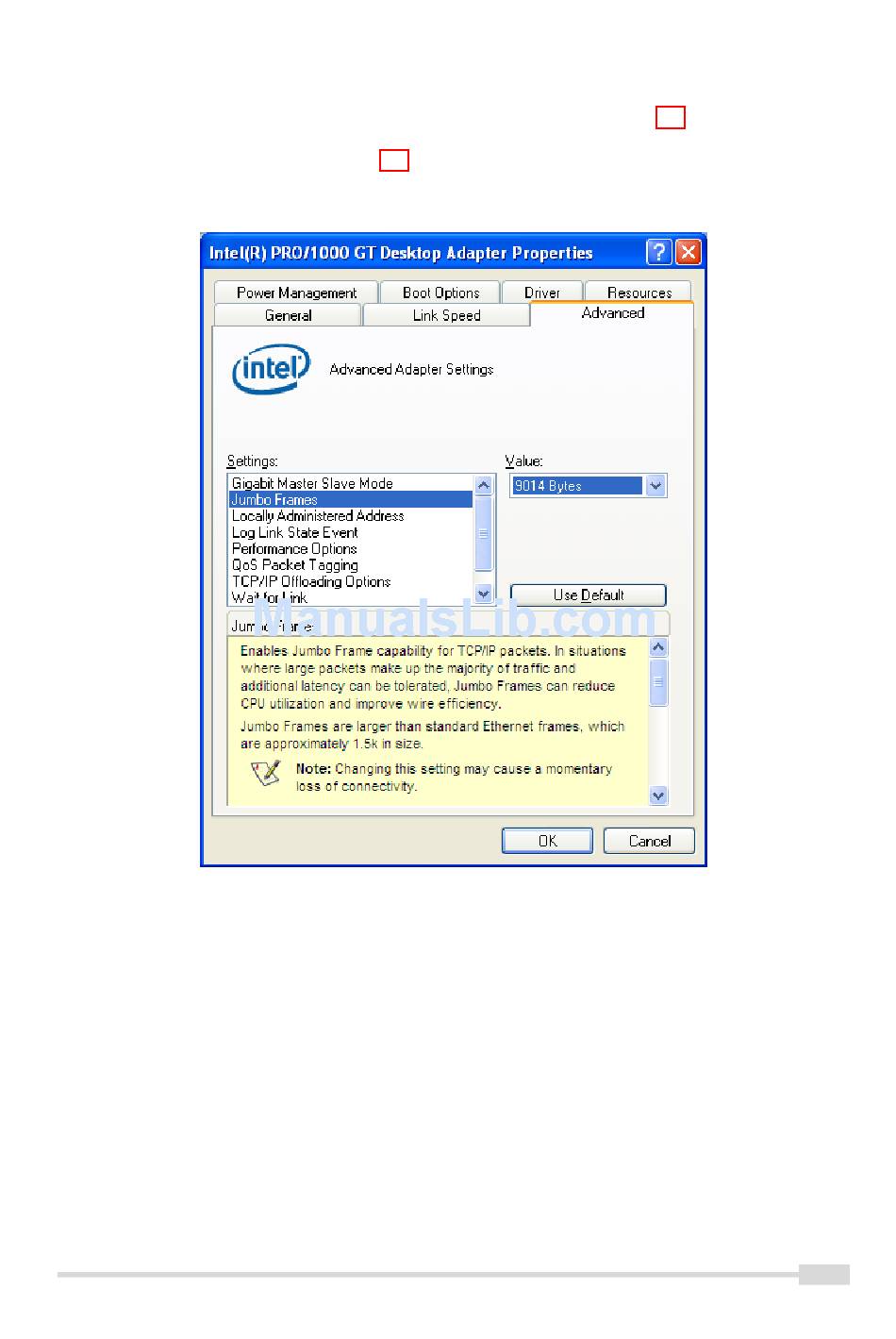

Figure 3.6: Advanced Network Adapter Properties
.
3.4 Network Adapter Configuration
17
