S
PECIFICATIONS

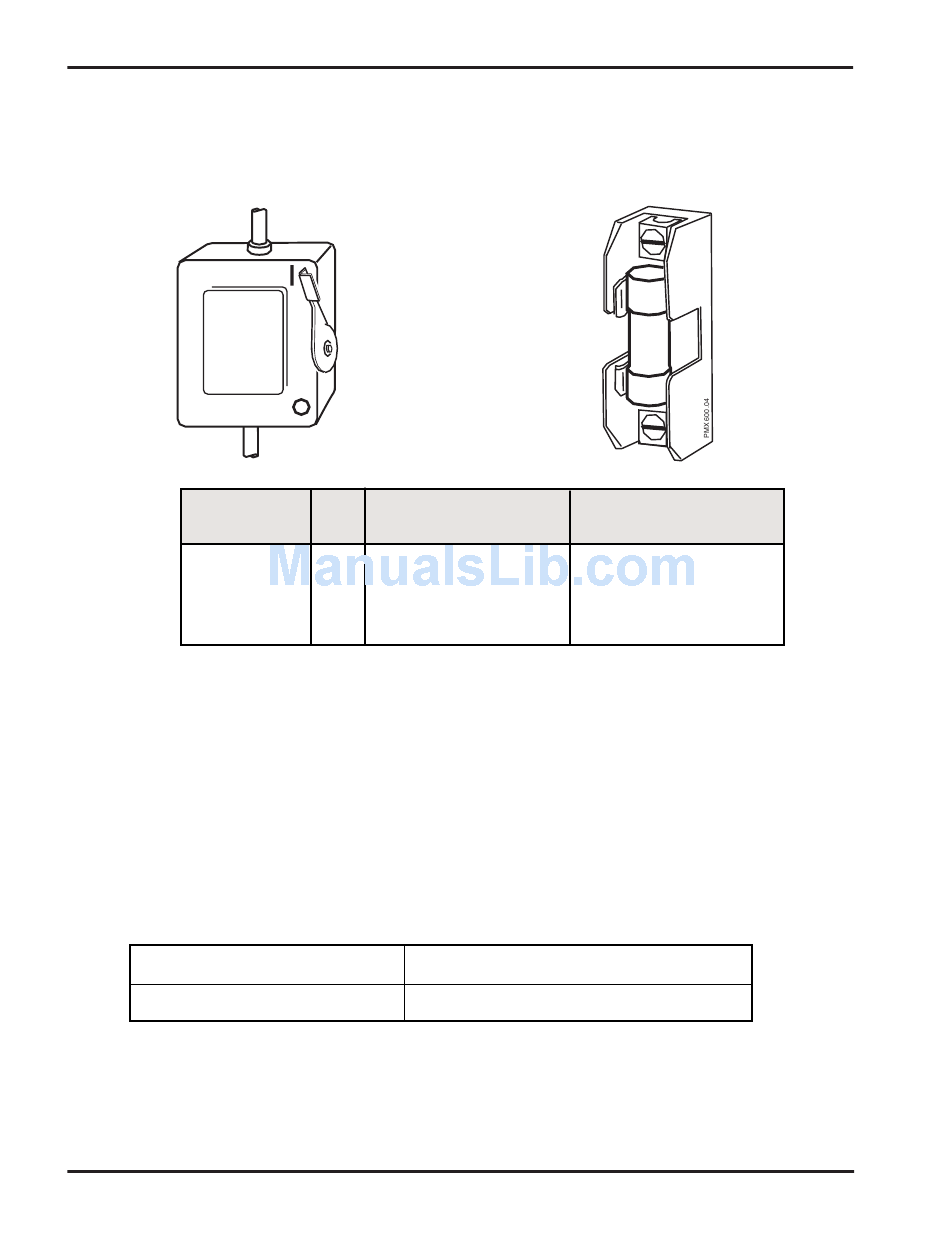

Line Voltage Disconnect Box

Use a line disconnect box for each power supply so that the operator can turn the power supply off
quickly in an emergency situation. Locate the switch near the power supply so that it is easily
accessible to the operator. The interrupt level of the switch must be equal to or exceed the continu-
ous rating of the fuses. Use slow-blow fuses as listed below.
PMX600.03
Input
Voltage
208-240 VAC
230 VAC
400 VAC
480 VAC

Gas Requirements

Air must be filtered to remove all dirt, water and oil. Contaminants can damage the power supply, torch and
consummables.
The power supply will not power-up if the gas inlet pressure is below minimum.
CAUTION: Do not exceed 120 psi / 8.3 bar pressure at the power supply
gas inlet. Damage to system may result from higher pressures.
Minimum Gas Inlet Pressure
Gas Flow
2-6
10-99
Input Current
Phase
@ 5.6 kw Output
1
46-40A
3
17A
3
9.7A
3
12A
6 scfm @ 90 psi / 170 l/min @ 6.2 bar
Recommended
Slow-Blow Fuse Size
100A
40A
25A
25A
90 psi / 6.2 bar
