netvox ZB11A1 User Manual

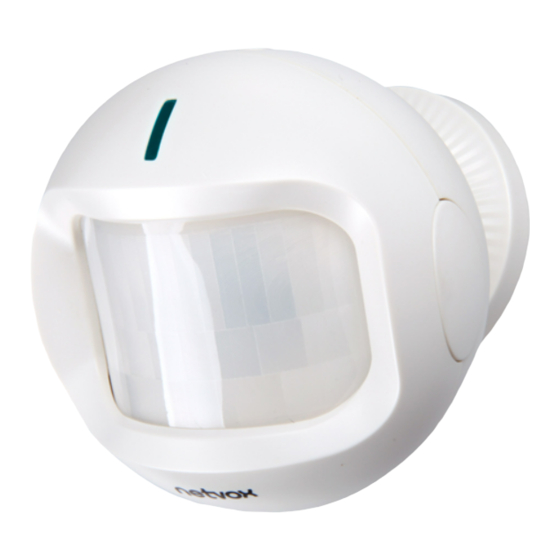

Zigbee motion detector
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TM
ZigBee
- Motion Detector

User Manual

Motion Detector
Model: ZB11A1
20140317
FW V2.0
HW V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZB11A1 and is the answer not in the manual?

Questions and answers

Related Manuals for netvox ZB11A1

Summary of Contents for netvox ZB11A1

  • Page 1: User Manual

    ZigBee - Motion Detector User Manual Motion Detector Model: ZB11A1 20140317 FW V2.0 HW V1.0...

  • Page 2: Table Of Contents

    5-4. Sleeping Mode..............................8 5-5. Wake Up ZB11A1............................8 5-6. Battery................................8 5-7. Infrared Sensor Detection and Report......................8 5-8. Tamper Alarm..............................9 5-9. Restore to Factory Setting..........................9 6. Home Automation Clusters for ZB11A1......................10 7. Important Maintenance Instructions........................12...

  • Page 3: Introduction

    ZigBee network. Users can assign specific task to other devices based on different report. ZB11A1 is also featured to play a role of the sensor (Zone device) in the ZigBee security system. When the movement is detected, ZB11A1 will notify the central security unit, CIE (Control and Indicating Equipment) device, to send commands to a siren device to trigger an alarm.

  • Page 4: Product Appearance

    2. Product Appearance Indicator (Red/ Green) Binding Key Auxiliary Key Infrared Sensor Sensor Sensitivity Adjuster Release Button...

  • Page 5: Specification

    3. Specification  Fully IEEE 802.15.4 compliant (ZigBee Pro) Utilizes 2.4GHz ISM band; up to 16 channels   Power supply: 2 x 1.5V AA batteries  Operating consumption: ≤ 45mA  Standby consumption: ≤ 100uA  Sensing angle- horizontal: 110°; vertical: 60° ...
  • Page 6  Apply the double-sided tape: 1. Clean surface with isopropyl rubbing alcohol, wipe gently, and let dry. 2. Remove one-side liner. Press adhesive to the bottom of ZB11A1. 3. Remove the-other-side liner. Press to surface for 20 seconds.

  • Page 8: Setting Up Zb11A1

    5-2. Join the ZigBee Network After ZB11A1 is turned on, it will search for an existing ZigBee network and send a request to join the network automatically. While ZB11A1 is under the coverage from a coordinator or a router whose permit-join feature is enabled, ZB11A1 will be permitted to join the network.

  • Page 9: Sleeping Mode

    A. While the device is in the network → the sleeping period is 5 minutes; it will wake up every 5 minutes to keep online. B. When it doesn’t find a network to join → ZB11A1 will go to sleeping mode. It will wake up every 15 minutes to search a network to join.

  • Page 10: Tamper Alarm

    After ZB11A1 joins the ZigBee network, the infrared sensor will not be active within 1 minute.  Under the circumstances ZB11A1 is not in a ZigBee network, it will start to join a network after the ZB11A1 detects a movement.

  • Page 11: Home Automation Clusters For Zb11A1

    A cluster is a set of related attributes and commands which are grouped together to provide a specific function. A simple example of a cluster would be the On/Off cluster which defines how an on/off switch behaves. This table lists the clusters which are supported by ZB11A1. 1、End Point(s)：0x01: 2、Device ID：...
  • Page 12 Identifier Name Type Range Access Default Mandatory / Optional string bytes 0x0007 PowerSource 8-bit 0x00 – Read only 0x03 Enumeration 0xff 0x0010 LocationDescription Character 0 – 16 Read/write string bytes 0x0012 DeviceEnabled Boolean 0x00 – Read/write 0x01 0x01...

  • Page 13: Important Maintenance Instructions

    7. Important Maintenance Instructions  Please keep the device in a dry place. Precipitation, humidity, and all types of liquids or moisture can contain minerals that corrode electronic circuits. In cases of accidental liquid spills to a device, please leave the device dry properly before storing or using.
  • Page 14 FCC Statement: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
