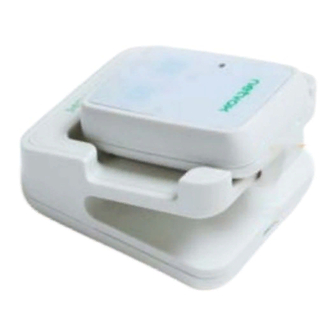

- Page 1 Z307 Wireless - Wireless Fall Sensor Wireless Rechargeable Fall Sensor User Manual Software：V4.0 Hardware：V1.2...
-
Page 2: Table Of Contents
4.7 Low power Notification ..........................5 4.8 Restore to Factory Setting ..........................5 4.9 Sleeping Mode ............................... 6 4.10 Battery Charging ............................6 5. ZigBee Description ..............................7 6. Netvox APP Control ..............................9 7. Related Devices..............................10 8. Important Maintenance Instructions ........................11... -
Page 3: Introduction
1. Introduction Z307 is ZigBee enabled fall sensor and emergency button. It can be worn on waist to detect fall on an elderly people and young children. When fall is detected, it sends alarm message to a pre-registered security system (CIE). This CIE would then instruct other devices in the network to sound or silent alarm with light strobe. -
Page 4: Product Character
Note: Power off Z307 when not in use is recommended 4.2 Join to the Network In order for the Z307 to communicate with the ZigBee network, it needs to be added to the ZigBee network first. Operations are as follows: ①... -
Page 5: Automatic Zone Registration (Enrollment)
4.3 Automatic Zone Registration (enrollment) Z307 is a zone device in the security system. Soon after the network join, the next step is to enroll itself into a CIE (Control and Indicating Equipment) –the security system device, to validate Z307 zone alarm feature. The registration will take place automatically soon after the device joined to the network. -
Page 6: Turn On Permit-Join Function
Z307 is capable of storing and saving includes network information. If you wish to remove Z307 from an exited network, you would need to clear the information and restore to the factory setting; or if you wish to join Z307 to a new network, a restore to factory default is required. -
Page 7: Sleeping Mode
C. Once Z307 was joined to a network and by any chance the network is no longer existed or the device is out of the network → Z307 will wake up every 15 minutes to find the network it joined before. It never keeps in sleeping mode and continues to find its network every 15 minutes. -
Page 8: Zigbee Description
Status indicator（red） Network indicator（green） A201 Infrared sensor A201Charging indicator DC power input（5V） Fig. 2. A201 Appearance 5. ZigBee Description 1. End Point(s)：0x01 2. Device ID：IAS Zone（0x0402） 3. Cluster ID which EndPoint supports... - Page 9 Cluster ID for Z307 Server side Client side EP 0x01 (Device ID: IAS Zone(0x0402) ) Basic(0x0000) None power configure(0x0001) Identify(0x0003) Commissioning(0x0015) Poll Control(0x0020) IAS zone ( 0x0500) Diagnostics Information(0x0B05) （1）Attributes of the Basic Information Identifier Name Type Range Access Default...
-
Page 10: Netvox App Control
6. Netvox APP Control 1 After adding Z307 into Netvox system, device information appears on the device management interface of the APP. As shown in Figure 5.1 below, there is one EP information. Click the icon to enter the state of Figure 5.2. -
Page 11: Related Devices
3. When an alarm occurs, the warning message shown in FIG. 5.5. Fig. 5.5 7. Related Devices A201 Infrared sensor A201Charging indicator DC power input（5V） A201：Wireless Charger... -
Page 12: Important Maintenance Instructions
Z302C ：Wireless Window Door Sensor and Wireless Glass Break Sensor Z302D ：Wireless Panic Button Z201B ：ZigBee HA Coordinator with CIE 8. Important Maintenance Instructions As the device is not water proof it is recommended to keep the device in a dry place. Liquid and heavy moisture contains minerals that may oxidize the electronic circuitry.
