  • Page 1 ZigBee - Light Sensor User Manual Light Sensor Model: Z311G FW V1.3 HW V1.1...

  • Page 2: Table Of Contents

    5-6. Change the Light Source Mode........................6 5-7. Calibration...............................6 5-8. Light Level Report............................6 5-9. Restore to Factory Setting..........................6 5-10. Report Configuration............................ 7 6. Home Automation Clusters for Z311G........................8 7. Netvox APP Control Interface..........................9 8. Important Maintenance Instructions........................12...

  • Page 3: Introduction

    1. Introduction Netvox Z311G, a ZigBee light sensor, acts as an End Device in ZigBee network. It does not perform permit-join function as a coordinator or a router for other devices to join the network. Z311G detects and reports the surrounding light level periodically to the ZigBee network for automation controlling applications.

  • Page 4: Product Appearance

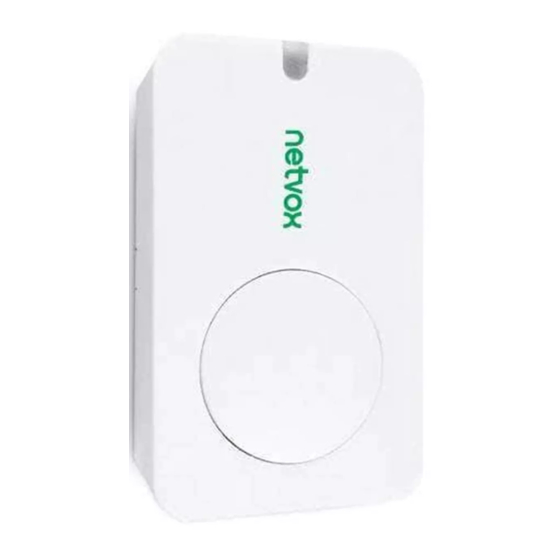

    2. Product Appearance Indicator (Red/Green) Light Sensor Binding Key Auxiliary Key...

  • Page 5: Specification

    3. Specification  Fully IEEE 802.15.4 compliant Utilizes 2.4GHz ISM band; up to 16 channels   Power supply: 2 CR2450 button cell batteries. 715 days battery life*  Operating consumption: ≤ 43mA  Standby consumption: ≤ 0.8uA  Sensing level range: 1~3000 lux Sensing accuracy: Natural light: 5%@1~600 lux;...

  • Page 6: Setting Up Z311G

    5. Setting up Z311G 5-1. Turn On/ Turn Off Z311G Under the circumstances Z311G is first time used or after resetting, when it is powered on and cannot successfully search a network, Z311G will go into turn-off mode. To manually turn on or turn off Z311G, please use the following instructions: A.

  • Page 7: Wake Up Z311G

    5-8. Light Level Report Z311G detects the light level every 5 minutes by default after binding. To assign the reporting conditions, users can modify the settings via netvox ZigBee application ZiG-BUTLER (please refer to Chapter 7). 5-9. Restore to Factory Setting To restore it to factory setting, please follow the steps: Step1.

  • Page 8: Report Configuration

    Step2. Release the button after the indicator shows fast flashes. Step3. The indicator will flash 20 times, and the restore is completed. 5-10. Report Configuration 10 seconds after powering on, Z311B will detect battery voltage, if the device report has been previously configured, it will issue 1 or 2 reports within 1-60 seconds randomly on the device, and thereafter it will report according to the configuration.

  • Page 9: Home Automation Clusters For Z311G

    0x00 – Read only 8-bit integer 0xff 0x0003 HWVersion Unsigned 0x00 – Read only 0x0B 8-bit integer 0xff 0x0004 ManufacturerName Character 0 – 32 Read only netvox string bytes 0x0005 ModelIdentifier Character 0 – 32 Read only Z311GE3ED string bytes...

  • Page 10: Netvox App Control Interface

    0x00 – Read/write 0x01 0x01 7.Netvox APP Control Interface 1. After the device is added in Netvox App system, IEEE address will show up at device management interface in APP. Z311B shows an EP which is Light Sensor as below figure:...
  • Page 11 2. Select EP1（Light Sensor）into configuration interface. In the setting interface, users are able to configurate respectively, as shown below: 3. In the control center interface, it displays the luminance value of current environment and the light sensor operation options of Z311G. As shown below:...
  • Page 12 4. Click EP1 into the basic information interface, by clicking on the bottom of the "Basic Information" "Settings" "About Device" interface to switch interfaces to check detail information of the device. As shown below.

  • Page 13: Important Maintenance Instructions

    8. Important Maintenance Instructions  Please keep the device in a dry place. Precipitation, humidity, and all types of liquids or moisture can contain minerals that corrode electronic circuits. In cases of accidental liquid spills to a device, please leave the device dry properly before storing or using.
  • Page 14 FCC Statement: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
