Model: R718PA10
Wireless Turbidity Sensor
Wireless Turbidity Sensor
R718PA10
User Manual
Copyright© Netvox Technology Co., Ltd.
This document contains proprietary technical information which is the property of NETVOX Technology. It shall
be maintained in strict confidence and shall not be disclosed to other parties, in whole or in part, without written
permission of NETVOX Technology. The specifications are subject to change without prior notice.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for netvox R718PA Series
Summary of Contents for netvox R718PA Series
- Page 1 Copyright© Netvox Technology Co., Ltd. This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained in strict confidence and shall not be disclosed to other parties, in whole or in part, without written...
-
Page 2: Table Of Contents
Table of Content Introduction ..................2 Appearance ..................3 Main Feature ..................3 Set Up Instruction ................4 Data Report ..................5 Installation ................... 7 Important Maintenance Instruction ............. 9... -
Page 3: Introduction

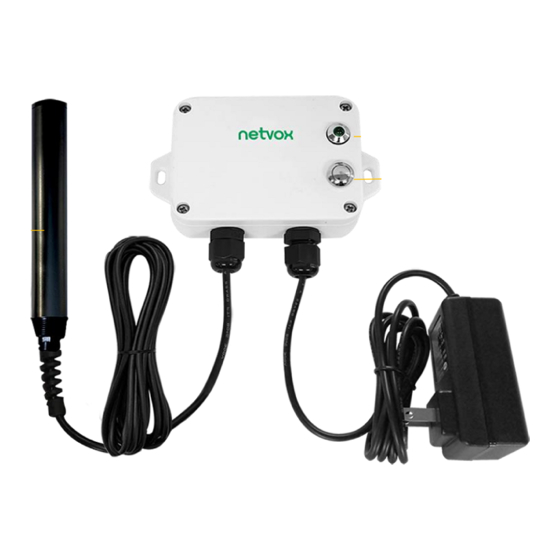

1. Introduction R718PA10 is a Class A device based on the LoRaWAN protocol of Netvox and is compatible with LoRaWAN protocol. R718PA10 can be connected with a turbidity sensor (RS485) externally and report the turbidity value and the temperature of the solution collected by the device to the corresponding gateway. -
Page 4: Appearance
⚫ Applicable to the third-party platforms: Actility/ ThingPark/ TTN/ MyDevices/ Cayenn Note: Battery life is determined by the sensor reporting frequency and other variables, please refer to http://www.netvox.com.tw/electric/electric_calc.html On this website, users can find battery lifetime for varied models at different configurations. -
Page 5: Set Up Instruction
4. Set Up Instruction On/Off Power On DC12V adapter Turn On DC12V power supply, the green indicator flashing once means turn on successfully. Restore To Factory Setting Press and hold the function key for 5 seconds, and the green indicator flashes 20 times. Power Off Remove DC12V adapter 1. -
Page 6: Data Report
1. Report interval is based on the factory default. 2. R718PA10 reports the turbidity value and the temperature of the solution. 3. The device reported data parsing please refer to Netvox LoRaWAN Application Command document and Netvox LoRa Command Resolver http://loraresolver.netvoxcloud.com:8888/page/index... - Page 7 Example of ConfigureCmd FPort：0x07 Bytes Var (Fix =9 Bytes) CmdID DeviceType NetvoxPayLoadData CmdID– 1 byte DeviceType– 1 byte – Device Type of Device NetvoxPayLoadData– var bytes (Max=9bytes) Device Description Device NetvoxPayLoadData Type ConfigReport MinTime MaxTime Reserved 0x01 (2bytes Unit: s) (2bytes Unit: s) (5Bytes,Fixed 0x00) ConfigReport...
-
Page 8: Installation
6. Installation 1. R718PA10 has the built-in magnet (as the figure below) 2. R718PA10 regularly reports the data of the turbidity value which can be attached to the surface of an iron object and the temperature of the solution according to MaxTime. during installation, which is convenient and quick. - Page 9 Note: 1. The probe contains sensitive optical and electronic components. Make sure that the probe is not subject to severe mechanical shocks. There are no parts inside the probe that need users’ maintenance. 2. The black plastic cap on the head of the turbidity sensor should be removed during the test; otherwise, it will affect the measurement.
-
Page 10: Important Maintenance Instruction
7. Important Maintenance Instruction Kindly pay attention to the following in order to achieve the best maintenance of the product: • Keep the device dry. Rain, moisture, or any liquid, might contain minerals and thus corrode electronic circuits. If the device gets wet, please dry it completely.
