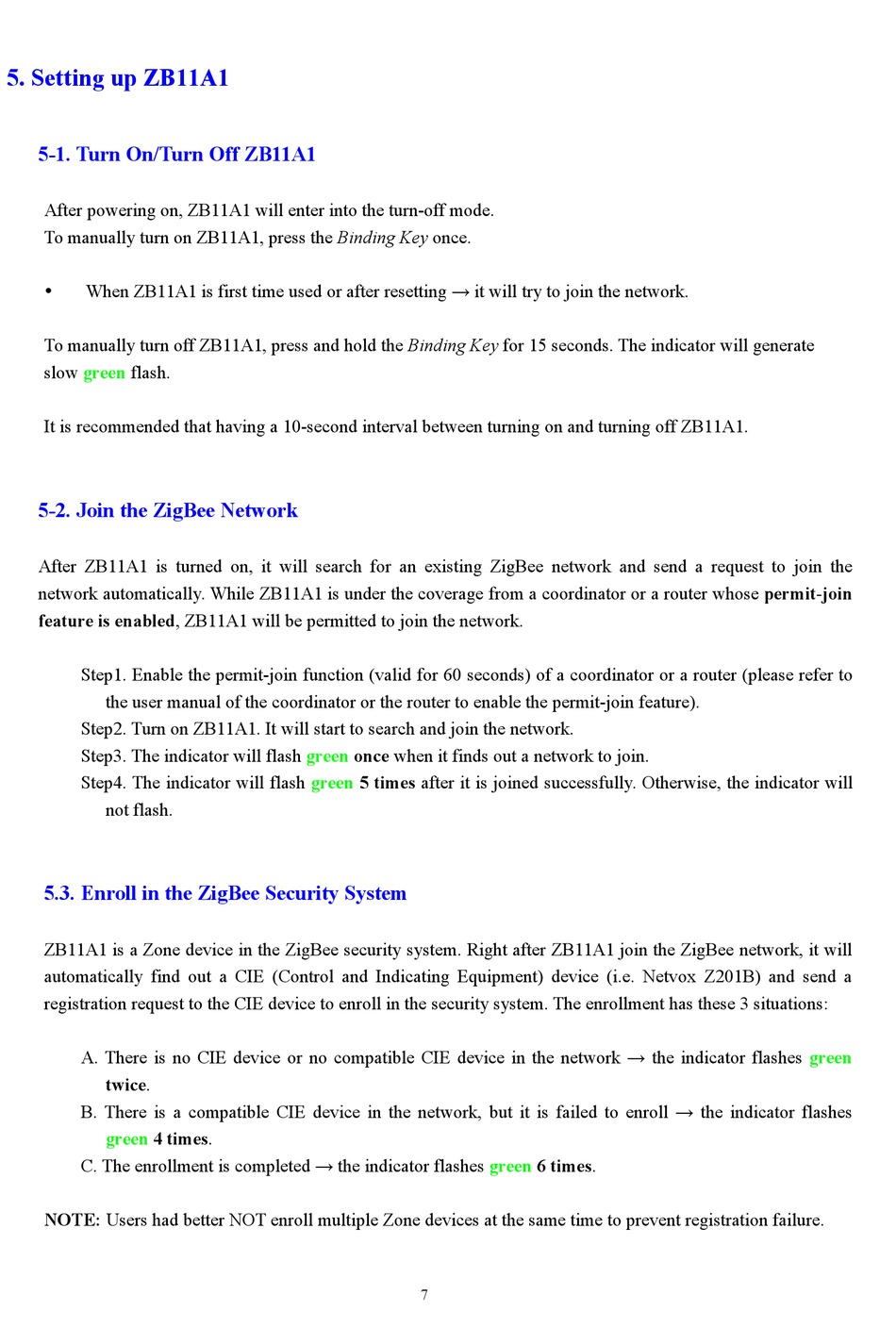

5. Setting up ZB11A1

5-1. Turn On/Turn Off ZB11A1

After powering on, ZB11A1 will enter into the turn-off mode.
To manually turn on ZB11A1, press the Binding Key once.
 When ZB11A1 is first time used or after resetting → it will try to join the network.
To manually turn off ZB11A1, press and hold the Binding Key for 15 seconds. The indicator will generate
slow green flash.
It is recommended that having a 10-second interval between turning on and turning off ZB11A1.

5-2. Join the ZigBee Network

After ZB11A1 is turned on, it will search for an existing ZigBee network and send a request to join the
network automatically. While ZB11A1 is under the coverage from a coordinator or a router whose permit-join
feature is enabled, ZB11A1 will be permitted to join the network.
Step1. Enable the permit-join function (valid for 60 seconds) of a coordinator or a router (please refer to
the user manual of the coordinator or the router to enable the permit-join feature).
Step2. Turn on ZB11A1. It will start to search and join the network.
Step3. The indicator will flash
Step4. The indicator will flash
not flash.

5.3. Enroll in the ZigBee Security System

ZB11A1 is a Zone device in the ZigBee security system. Right after ZB11A1 join the ZigBee network, it will
automatically find out a CIE (Control and Indicating Equipment) device (i.e. Netvox Z201B) and send a
registration request to the CIE device to enroll in the security system. The enrollment has these 3 situations:
A. There is no CIE device or no compatible CIE device in the network → the indicator flashes
twice.
B. There is a compatible CIE device in the network, but it is failed to enroll → the indicator flashes
green 4 times.
C. The enrollment is completed → the indicator flashes
NOTE: Users had better NOT enroll multiple Zone devices at the same time to prevent registration failure.
green once when it finds out a network to join.
green 5 times after it is joined successfully. Otherwise, the indicator will
7
green 6 times.
green
