Page 1: User Manual
ZigBee - Humidity/ Temperature/ Ultraviolet Sensor User Manual Humidity/ Temperature/ Ultraviolet Sensor Outdoor Type Model: Z713 20130816 FW V3.1 HW V7.1~V7.2... -
Page 2: Table Of Contents
5. Setting up Z713................................. 6 5-1. Join the ZigBee Network..........................6 5-2. Binding................................6 5-3. Sleeping Mode..............................6 5-4. Wake up Z713..............................7 5-5. Battery................................7 5-6. Restore to Factory Setting..........................7 6. Home Automation Clusters for Z713........................8 7. Important Maintenance Instructions........................10... -
Page 3: Introduction
1. Introduction Netvox Z713, a humidity/ temperature/ ultraviolet sensor, acts as an End Device in ZigBee network. It does not perform permit-join function as a coordinator or a router for other devices to join the network. It is used for detecting ambient and sends the humidity/ temperature/ ultraviolet data to a control center wirelessly. -
Page 4: Product Appearance

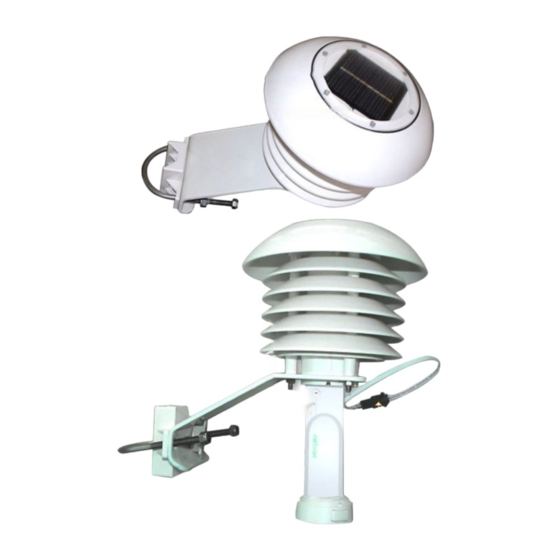

2. Product Appearance Solar Panel Board UV Sensor Mount Holder H/T Sensor LED Indicator Binding Key UV Connector... -
Page 5: Specification
3. Specification Fully IEEE 802.15.4 compliant Utilizes 2.4GHz ISM band; up to 16 channels Power supply: Two 1.5V AA batteries Operating voltage: 2.3V~3.6VDC Operating consumption: Up to 40mA Standby consumption: Up to 0.8uA Sensing range- temperature: -10℃~50℃; humidity: 5%~95% ... -
Page 6: Installation
4. Installation Remove the Front view battery Insert the The batteries batteries are installed Install the The installation battery cover is completed... -
Page 7: Setting Up Z713
A. While the device is in the network → the sleeping period is 5 minutes; it will wake up every 5 minutes to keep online. B. When it doesn’t find a network to join → Z713 will go to sleeping mode. It will wake up every 15 minutes to search a network to join. -
Page 8: Wake Up Z713
Step1. Press the Binding Key. Step2. The indicator flashes 5 times when Z713 is online. Step3. Z713 will broadcast the device data such as IP address or IEEE address to the ZigBee network. 5-5. Battery After joining the network, Z713 checks the battery level every 60 minutes. When the operating voltage is lower than 2.4V, the indicator will flash once. -
Page 9: Home Automation Clusters For Z713
A cluster is a set of related attributes and commands which are grouped together to provide a specific function. A simple example of a cluster would be the On/Off cluster which defines how an on/off switch behaves. This table lists the clusters which are supported by Z713. Cluster ID for Z713... - Page 10 0x0007 PowerSource 8-bit 0x00 – Read only 0x03 Enumeration 0xff 0x0010 LocationDescription Character 0 – 16 Read/write string bytes 0x0011 PhysicalEnvironment 8-bit 0x00 – Read/write 0x00 Enumeration 0xff 0x0012 DeviceEnabled Boolean 0x00 – Read/write 0x01 0x01...
-
Page 11: Important Maintenance Instructions
7. Important Maintenance Instructions In cases of accidental liquid spills to a device, please leave the device dry properly before storing or using. Do not use or store the device in dusty or dirty areas. Do not use or store the device in extremely hot temperatures. High temperatures may damage the device or battery.
