Issue 5
11) PIPE ADAPTOR KIT RD2311
FITTING INSTRUCTIONS

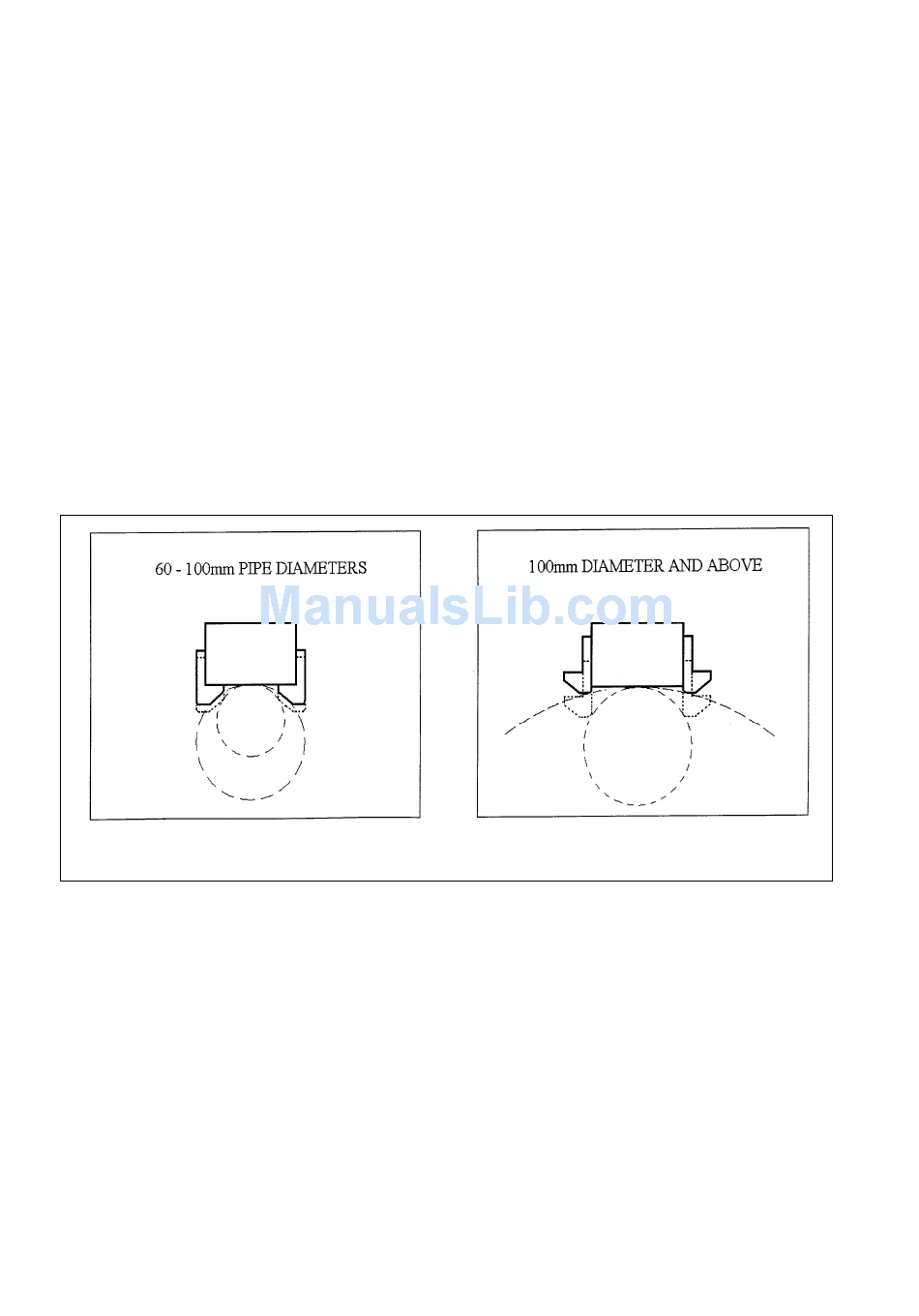

Dependent upon the size of the pipe to be cut (see illustrations) attach adjustable angle
plates RD3328 with cap screws RD4325 and washers RD4205 (4 off each) to the magnet
sides. Do not tighten.
Locate the machine on the centreline pipe taking care that the magnet is in line with the
longitudinal axis of the pipe.
Switch on the magnet and move the sliding plates down to the outside diameter of the
pipe. Tighten the screws on both sides by hand then check once again that the full length
of the moving plates is touching the pipe at the front and back, fasten the plate securely.
Feed the safety strap through the lugs at the front of the housing, around the pipe and pull
tight.
When cutting the hole DO NOT use excessive pressure but rather let the cutter ease into
the cutting surface.
Original version
15
Nov 2014
