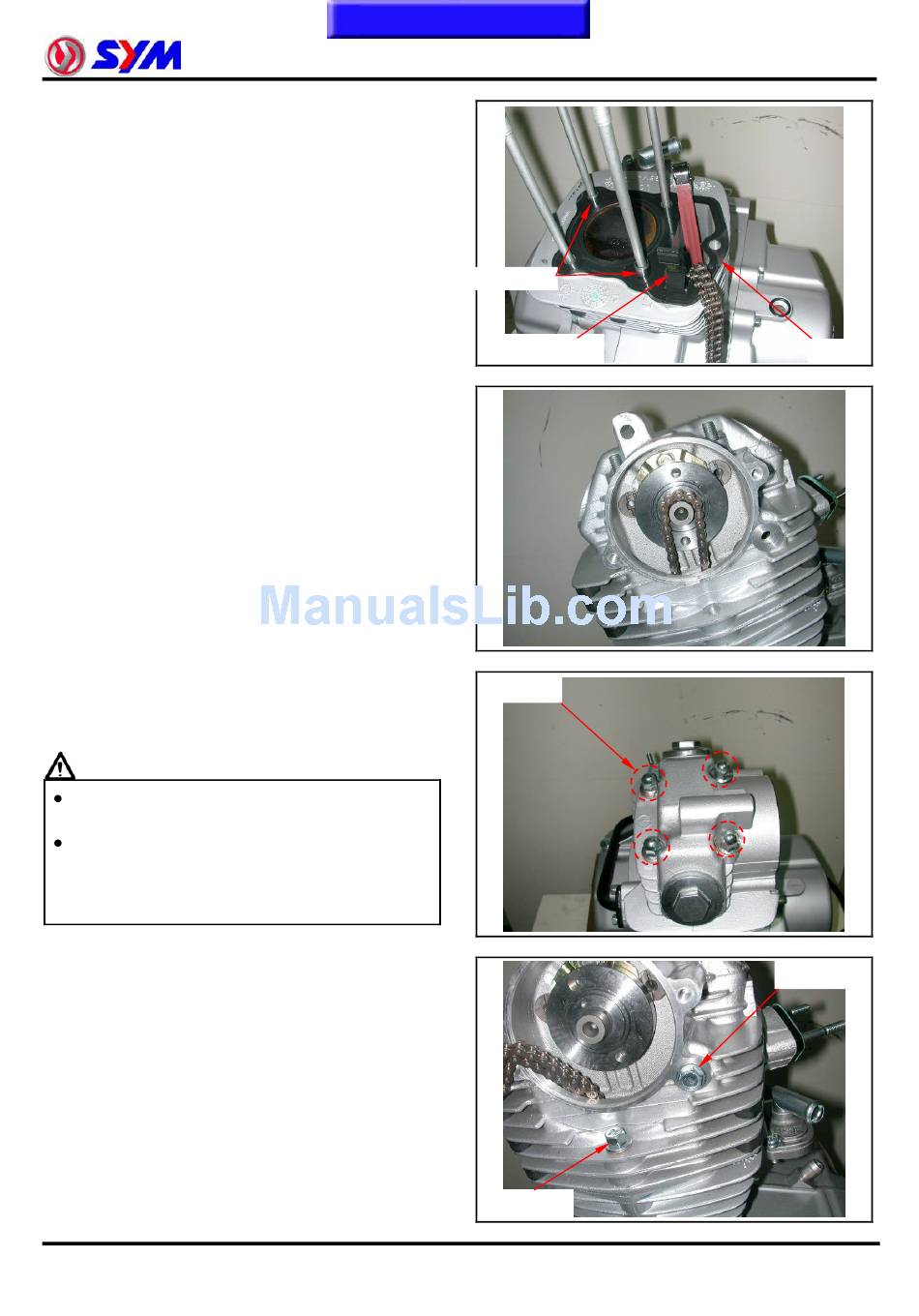

Cylinder Head Installation
Install the cam chain guide.
Put the dowel pins and new cylinder head
gasket onto the cylinder.
Install the cylinder head. Lubricate the cam
shaft and install it onto the cylinder head.
Install the cam chain onto the cam shaft.
Tighten the cylinder head upper nuts.
Torque value:
Cylinder head upper nut 2.8~3.0kgf-m
Caution
Tighten the cylinder head nuts in
diagonally opposite sequence.
Do not exceed the specified torque value
to prevent cylinder head warpage,
abnormal noise, leakage or weakening of
engine performance.
Tighten the cylinder head bolt on the left side.
Torque value:
Cylinder head left side bolt
Loosen the cam chain tensioner adjusting bolt.
Align and tighten the cam chain tensioner.
Torque value:1.0~1.4kgf-m
To this chapter contents
Dowel pins
0.8~1.2kgf-m
7. Cylinder Head / Valve
Cam chain guide
Nut×4
8mm bolt
Gasket
Cam chain
tensioner bolt
7-15
