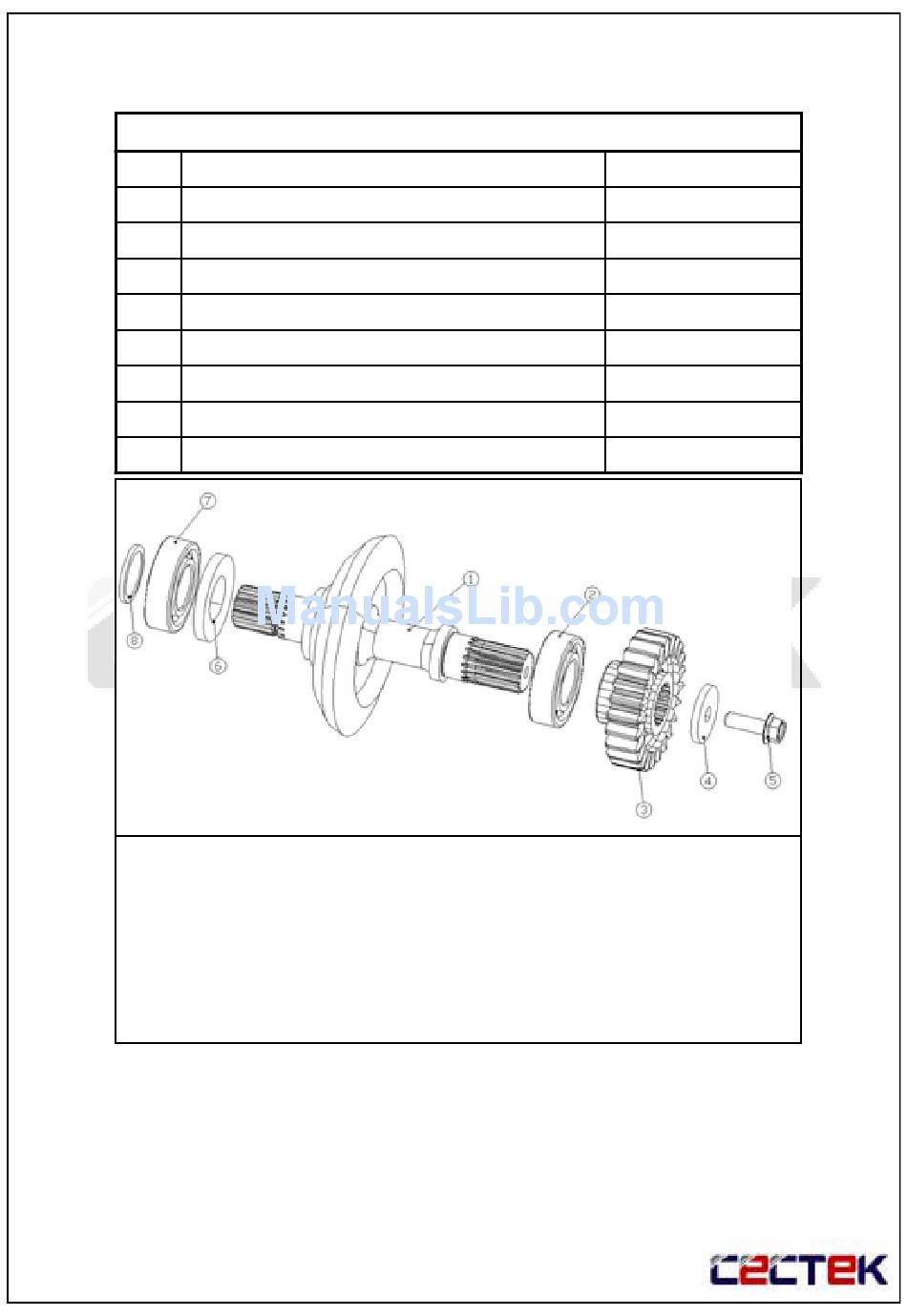

THE REAR DRIVESHAFT ASSEMBLY

NO. PART NAME
1. DRIVE SHAFT ASSY.
2. BEARING
3. GEAR
4. WASHER
5. BOLT
6. WASHER
7. BEARING
8. O-RING
Before install gear and bearing , please lubricate with 10W/40 oil
1.Press the bearing (2) into the shaft (1) thoroughly.
2.Install the gear (3) into shaft (1).
3.Tighten the bolt(5) with washer (4) on the shaft (1) , the tighten
torque 20Nm
4.Install the washer (6) which thickness shall be measured in advance
into shaft (1) , then press the bearing (7) into shaft (1) , finally intsall
the O ring (8)
PART NO.
46058001
DGB6205
46050023
46050007
BFH080251094
46050009-19
DGB6305
46050025
