REAR RACK REMOVAL
(2)
(3)
(6)

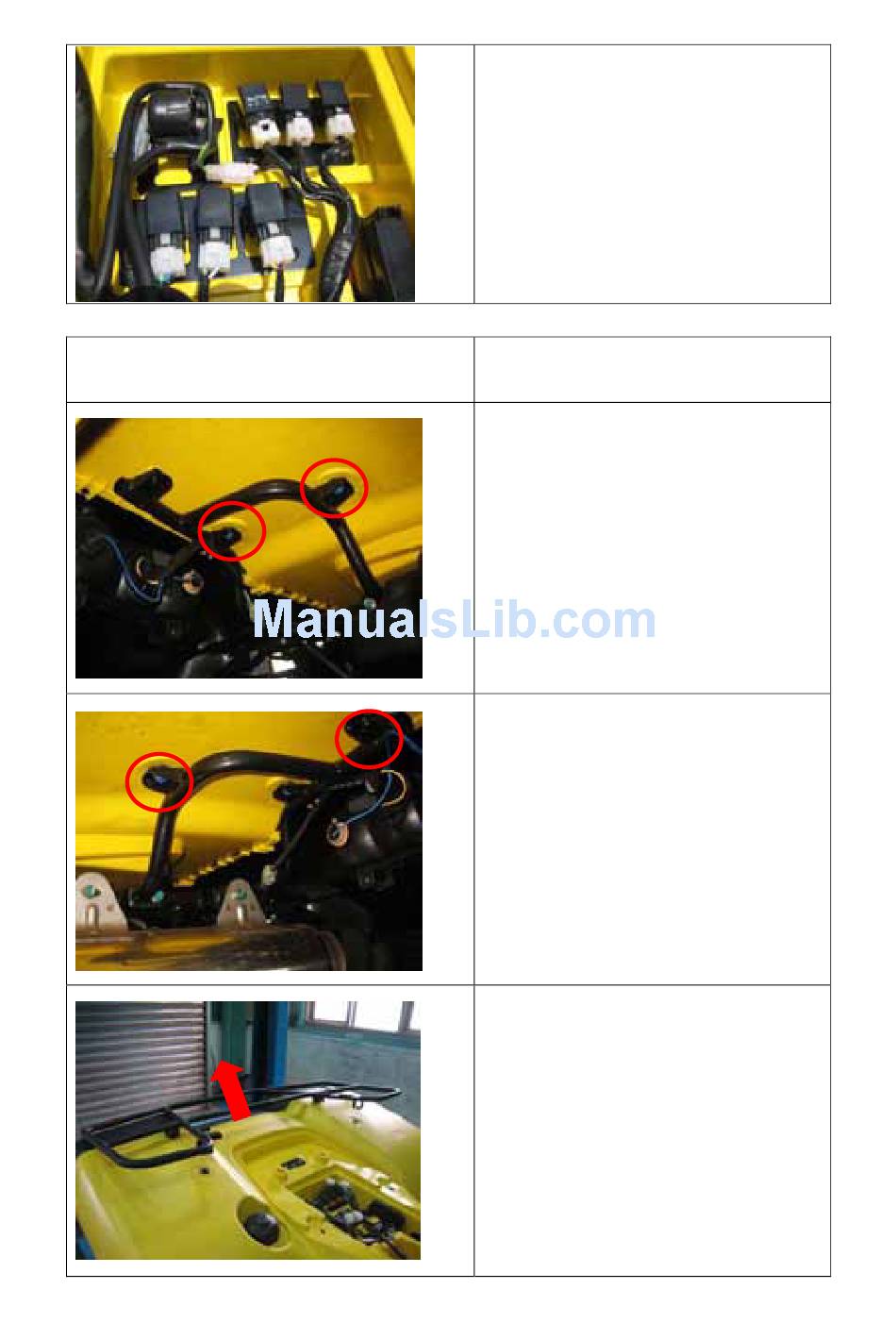

3. There are totally 7 relays in the
chamber under the seats.
Relay 1 to 6 are exactly same
specifications. Relay 7 is the
main switch relay.
Reversely perform the below
process to install.
1. Remove 2 RHS bolts under the
rear cover.
2. When install torque 10Nm
3. Remove 2 LHS bolts under the
rear cover.
4. When install torque 10Nm
5. Lift the rear rack up to remove.
