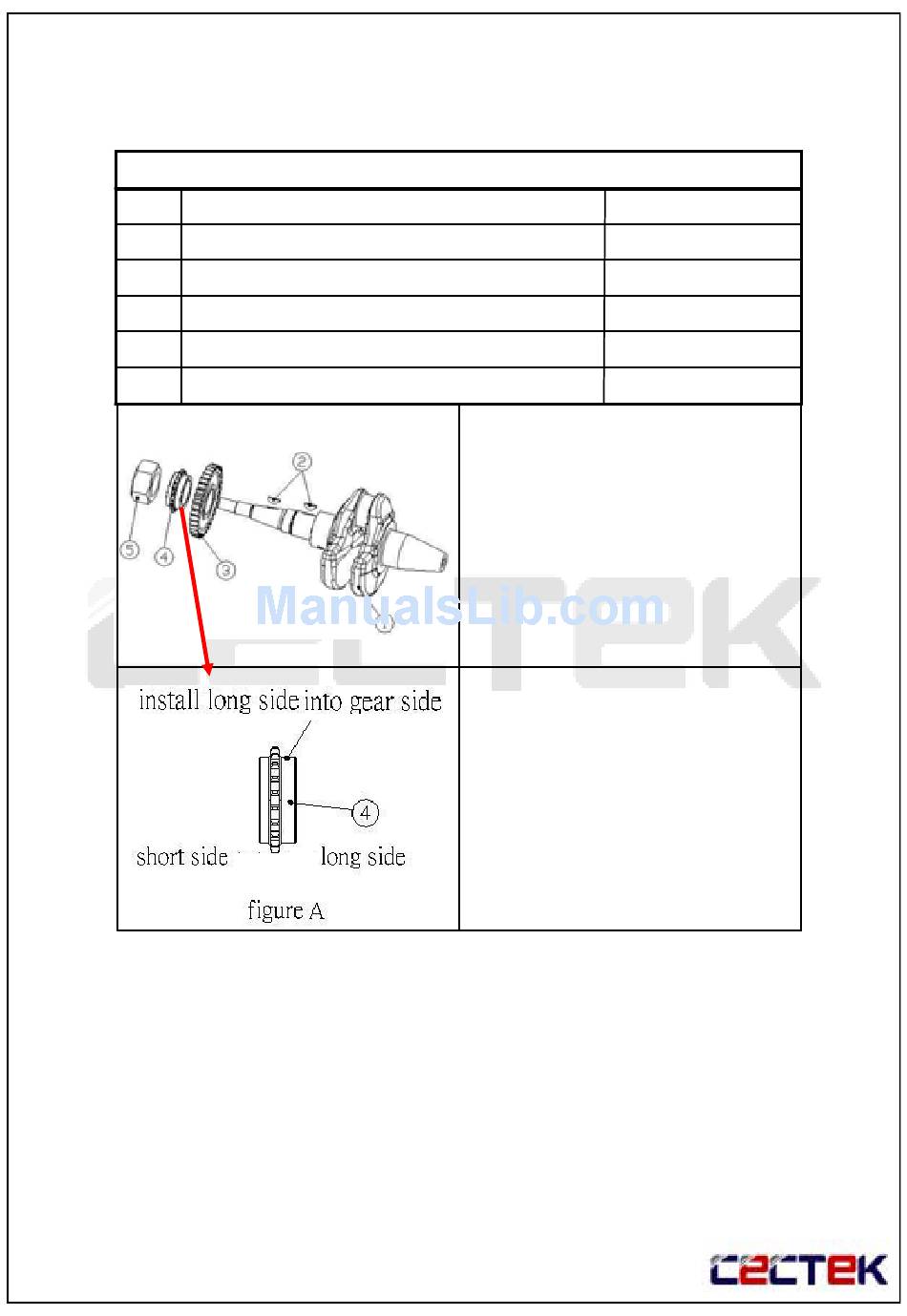

THE BALANCER ASSEMBLY

NO. PART NAME
1. CRANKSHAFT
2. KEY
3. GEAR (36T)
4. PCAM CHAIN SPROCKET
5. NUT (M30)
PART NO.
40110023
40110108
40120018
41010004
40110024
1.Install key (2) into crankshaft (1)
, keep the key parallel with
crankshafttaper
2.Install gear (3) into crankshaft
(1) , gear groove must be
alignment key of crankshaft
3.Install cam chain sprocket (4)
into crankshaft (1) , be shall
install long side into gear side
of crankshaft , reference to
figure A
4.Screw nut (5) to crankshaft (1) ,
tighten torque 250Nm
48
