SmartNode 5200 front panel

Figure 3 shows SmartNode 5200 LEDs, the LED definitions are listed in
LED
Note
Power
VoIP Link
Ethernet
(LAN 1–4 and WAN)
SmartNode 5200 overview

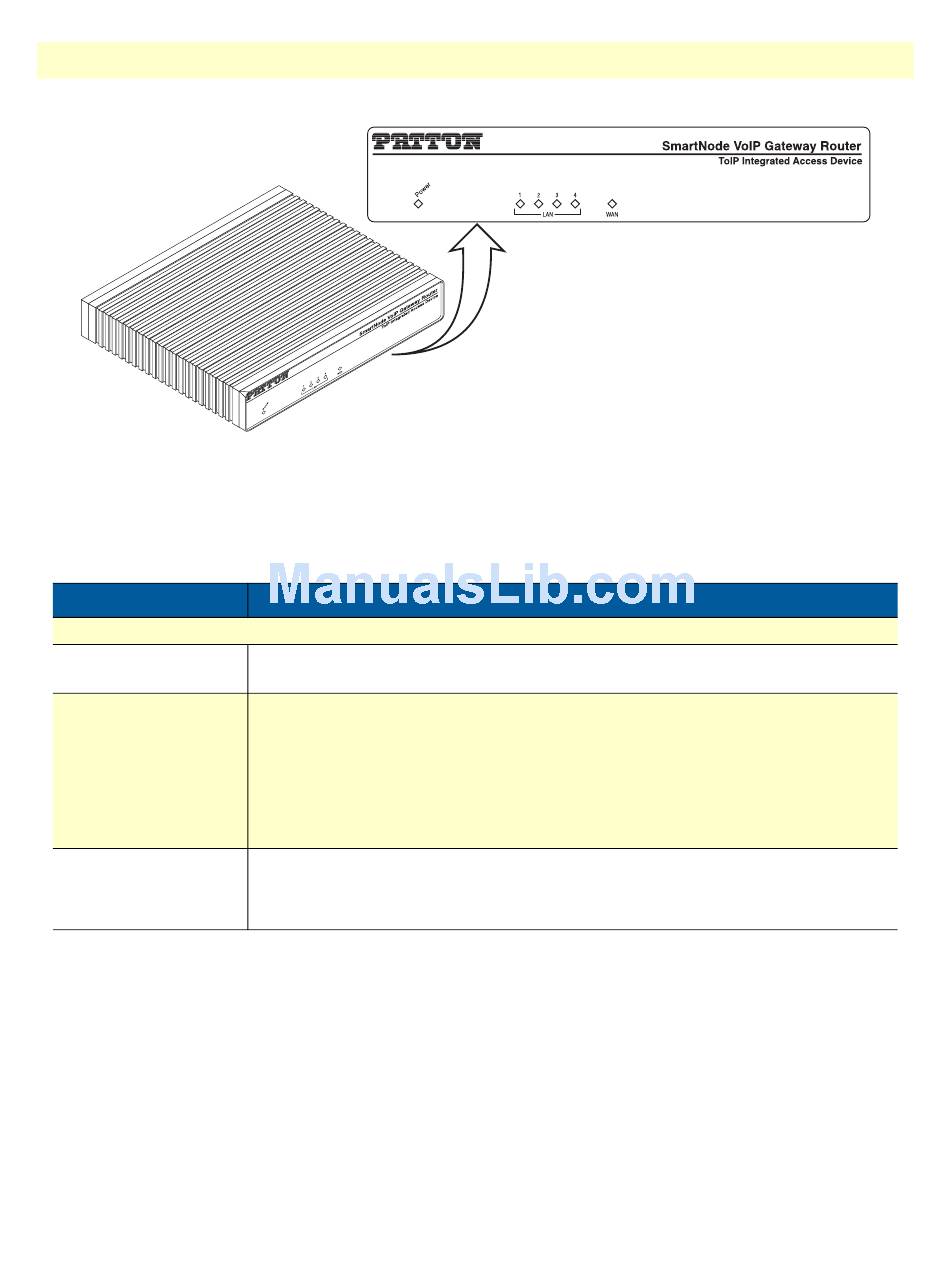

Figure 3. SmartNode 5200 front panel
Table 3. SmartNode 5200 LED definitions
If an error occurs, all LEDs will flash once per second.
When lit, indicates power is applied and the unit is in normal operation. Off indi-
cates no power applied. Flashes once per second during boot (startup).
• On indicates the gateway is registered to an H.323 gatekeeper/SIP server, or,
in the case of direct routing, has at least one active VoIP connection.
Off indicates the unit is not configured or registered, or has no active direct-
•
routed VoIP connection.
Flashing green indicates that the unit is attempting to register or has failed
•
to register.
• On when the Ethernet connection on the corresponding port has a
link indication.
Flashes when data is received or transmitted at the corresponding Ethernet port.
•
1 • General information
table 3.
Description
17
