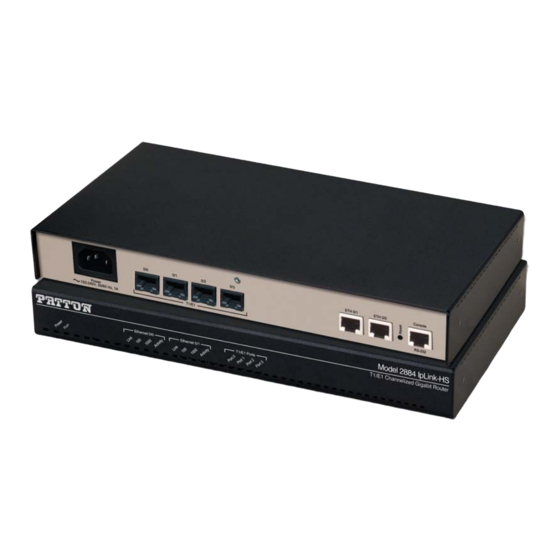

IPLink 2884
T1/E1 Channelized Gigabit Router
IPLink 2888
T1/E1 Multi-Megabit Inverse Mux
Quick Start Guide
Important
intended nor approved for use in an industrial or residential environment.
Document Number: 13223U7-002 Rev. B
Part Number: 07M2884-QS
Revised: August 8, 2007
—This is a Class A device and is intended for use in a light industrial environment. It is not
Sales Office: +1 (301) 975-1000
Technical Support: +1 (301) 975-1007
E-mail: support@patton.com
WWW: www.patton.com
Advertisement
Table of Contents
Related Manuals for Patton electronics IPLink 2884
Summary of Contents for Patton electronics IPLink 2884
-

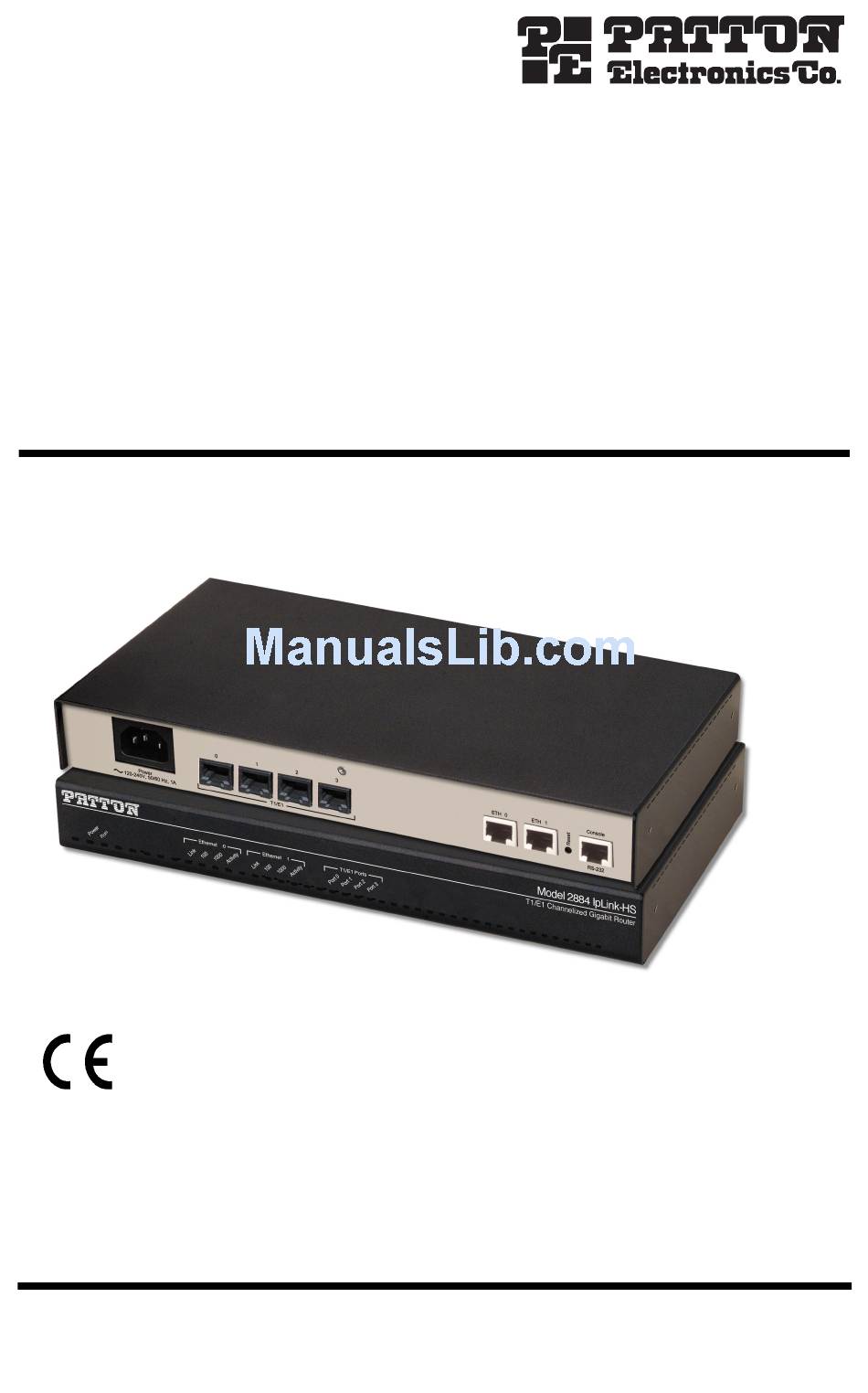

Page 1: Quick Start Guide
IPLink 2884 T1/E1 Channelized Gigabit Router IPLink 2888 T1/E1 Multi-Megabit Inverse Mux Quick Start Guide Important —This is a Class A device and is intended for use in a light industrial environment. It is not intended nor approved for use in an industrial or residential environment. -
Page 2: Connecting The Power Supply
• The IPLink contains no user serviceable parts. The equipment shall be returned to Patton Electronics for repairs, or repaired by qualified service personnel. WARNING • Mains Voltage: Line voltages are present when the power cord is con- nected. The mains outlet shall be within 10 feet (3 meters) of the device, shall be easily accessible, and protected by a circuit breaker. - Page 3 Connecting DC Power to the 288x DC Power Supply There are no user-serviceable parts in the power supply section of the Model 2701. Contact Patton Electronics Technical support at (301)975-1007, via our web site at http://www.patton.com, or by e-mail at support@patton.com, for more information.
-
Page 4: Setting The Ip Address
Configure your PC’s Ethernet port to be on the same subnet as the IPLink. Open a Telnet connection to the default LAN IP address of the IPLink ( 192.168.200.10 ). Log into the unit using the following: login: admin password: IPLink 2884/2888 Quick Start Guide... -
Page 5: Changing The Ip Address
Trinity[eth-eth0]# ip address 192.168.1.1 netmask 255.255.255.0 2.5 Saving the IP address To save the IPLink’s IP address: Login to the unit using admin , then use the following set of commands: Trinity# [eth-eth0]# end Trinity# copy running-config startup-config Trinity# IPLink 2884/2888 Quick Start Guide... -
Page 6: Connecting The T1/E1 Ports
For detailed information about configuring and operating guidance, set up procedures and troubleshooting, refer to the IPLink 2884/2888 Getting Started Guide and the Administrator’s Reference Guide on the enclosed Patton CD-ROM or at www.patton.com/manuals. On the CD-ROM you will also find numerous freeware and shareware tools, including TFTP servers, Telnet clients, etc. -
Page 7: Compliance Information
A.2 CE Declaration of Conformity Product Description: IPLink 2884 and IPLink 2888 We certify that the apparatus identified above conforms to the requirements of Council Directive 1999/5/EC on the approximation of the laws of the member states relating to Radio and Telecommunication Terminal Equip- ment and the mutual recognition of their conformity. -
Page 8: Copyright Statement
• Note For additional service and support information, refer to the “Contacting Patton for assistance” chapter of the IPLink 2884/2888 Getting Started Guide located on the CD-ROM that came with your IPLink or available online at www.patton.com. Warranty, Compliance Information For warranty, trademark and compliance information, refer to the IPLink 2884/2888 Getting Started Guide located on the CD-ROM that came with your model or available online at www.patton.com.
