SmartNode 5200
Enterprise Session Border Router
Getting Started Guide
Important
This is a Class A device and is intended for use in a light industrial (commercial) environment only. It is not intended nor approved for
use in a heavy industrial or residential environment.
This device is approved for connection to the public ISDN telecommunication network, over BRI/S0-ISDN interfaces.
Sales Office:
+1 (301) 975-1000
Technical Support:
+1 (301) 975-1007
E-mail:
support@patton.com
WWW:
www.patton.com
Part Number: 07MSN5200-GSG, Rev. A
Revised: April 21, 2010
Advertisement
Table of Contents
Related Manuals for Patton electronics SmartNode 5200
Summary of Contents for Patton electronics SmartNode 5200
-
Page 1: Smartnode 5200
For Quick For Quick SmartNode 5200 Enterprise Session Border Router Getting Started Guide Important This is a Class A device and is intended for use in a light industrial (commercial) environment only. It is not intended nor approved for use in a heavy industrial or residential environment. - Page 2 Patton Electronics Company, Inc. 7622 Rickenbacker Drive Gaithersburg, MD 20879 USA Tel: +1 (301) 975-1000 Fax: +1 (301) 869-9293 Support: +1 (301) 975-1007 Web: www.patton.com E-mail: support@patton.com Trademark Statement The terms SmartNode, SmartWare and SmartView are trademarks of Patton Electronics Company. All other trademarks presented in this document are the prop- erty of their respective owners.
-
Page 3: Summary Table Of Contents
18 SmartNode installation... 20 Initial configuration ... 25 Contacting Patton for assistance Compliance information ... 34 Specifications ... 36 Cabling ... 39 Port pin-outs ... 41 SmartNode 5200 factory configuration End user license agreement ... 48 ... 31 ... 43... -
Page 4: Table Of Contents
Safety when working with electricity General observations ...12 Typographical conventions used in this General conventions ...13 General information ... 14 SmartNode 5200 overview ...15 SmartNode 5200 rear panel SmartNode 5200 front panel Applications overview... 18 Introduction ...19 Typical application ...19 SmartNode installation... 20 Planning the installation...21... - Page 5 SmartNode 5200 Getting Started Guide Changing the WAN IP address Connecting the SmartNode to the network Loading the configuration (optional) Additional information...30 Contacting Patton for assistance Introduction ...32 Contact information...32 Patton support headquarters in the USA Alternate Patton support for Europe, Middle East, and Africa (EMEA)
- Page 6 SmartNode 5200 Getting Started Guide End user license agreement ... 48 End User License Agreement ...49 1. Definitions ...49 2. Title ...49 3. Term ...49 4. Grant of License ...49 5. Warranty ...49 6. Termination ...50 7. Other licenses ...50...
-
Page 7: List Of Figures
SmartNode 5200 front panel ........ -
Page 8: List Of Tables
SmartNode 5200 LED definitions ........ -
Page 9: About This Guide
About this guide This guide describes the SmartNode 5200 hardware, installation and basic configuration. For detailed software configuration information refer to the SmartWare Software Configuration Guide and the available Configura- tion Notes. Audience This guide is intended for the following users: •... -
Page 10: Precautions
SmartNode 5200 Getting Started Guide Precautions Notes, cautions, and warnings, which have the following meanings, are used throughout this guide to help you become aware of potential problems. sonal injury. are intended to prevent situations that could result in property damage or impaired functioning. -
Page 11: Safety When Working With Electricity
SmartNode 5200 Getting Started Guide Safety when working with electricity • Do not open the device when the power cord is connected. For systems without a power switch and without an external power adapter, line volt- ages are present within the device when the power cord is connected. -
Page 12: General Observations
SmartNode 5200 Getting Started Guide Electrostatic Discharge (ESD) can damage equipment and impair electrical cir- cuitry. It occurs when electronic printed circuit cards are improperly handled and can result in complete or intermittent failures. Do the following to prevent ESD: •... -
Page 13: Typographical Conventions Used In This Document
SmartNode 5200 Getting Started Guide Typographical conventions used in this document This section describes the typographical conventions and terms used in this guide. General conventions The procedures described in this manual use the following text conventions: Convention Indicates a cross-reference hyperlink that points to a figure, graphic, table, or sec- Garamond blue type tion heading. -
Page 14: General Information
Chapter 1 General information Chapter contents SmartNode 5200 overview ...15 SmartNode 5200 rear panel SmartNode 5200 front panel ...16 ...17... -
Page 15: Smartnode 5200 Overview
Internet Telephony on existing IP-PBX equipment for complete SoHo and branch office voice and data connectivity. The SmartNode 5200 is equipped with a 10/100Base-T Ethernet WAN port and an integrated 4-port 10/100Base-T Ethernet switch. -
Page 16: Smartnode 5200 Rear Panel

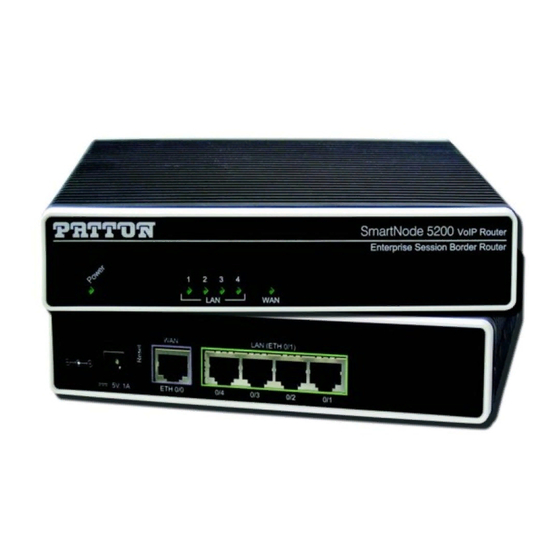

SmartNode 5200 Getting Started Guide SmartNode 5200 rear panel The SmartNode 5200 is a compact VoIP Gateway Router that supports 32 simultaneous SIP sessions. The SmartNode 5200 rear panel ports are described in Model SN5200 Port WAN ETH 0/0 Auto-MDX Fast-Ethernet port, RJ-45 (see device (for example, a cable modem, DSL modem, or fiber modem). -
Page 17: Smartnode 5200 Front Panel
SmartNode 5200 Getting Started Guide SmartNode 5200 front panel Figure 3 shows SmartNode 5200 LEDs, the LED definitions are listed in Note If an error occurs, all LEDs will flash once per second. Power When lit, indicates power is applied and the unit is in normal operation. Off indi- cates no power applied. -
Page 18: Applications Overview
Chapter 2 Applications overview Chapter contents Introduction ...19 Typical application ...19... -
Page 19: Introduction
SmartNode 5200 Getting Started Guide Introduction Patton’s SmartNode VoIP Enterprise Session Routers deliver the features you need for advanced multiservice voice and data network applications. They combine high quality voice-over-IP with powerful quality of service routing functions to build professional and reliable VoIP and data networks. This chapter describes typical applications for which this SmartNode is uniquely suited. -
Page 20: Smartnode Installation
Chapter 3 SmartNode installation Chapter contents Planning the installation...21 Site log ...21 Network information ...21 Network Diagram ...21 IP related information ...22 Software tools ...22 Power source ...22 Location and mounting requirements Installing the gateway router...22 Placing the SmartNode ...22 Installing cables ...23 Connecting the 10/100Base-T Ethernet LAN and WAN cables... -
Page 21: Planning The Installation
SmartNode 5200 Getting Started Guide Planning the installation The mains outlet that is utilized to power the equipment must be within 10 feet (3 meters) of the device and shall be easily accessible. Before installing the gateway router device, the following tasks should be completed: •... -
Page 22: Ip Related Information
SmartNode 5200 Getting Started Guide IP related information Before you can set up the basic IP connectivity for your SmartNode 5200 you should have the following infor- mation: • IP addresses used for Ethernet LAN and WAN ports • Subnet mask used for Ethernet LAN and WAN ports •... -
Page 23: Installing Cables
2. Connect the power supply (see section Connecting the 10/100Base-T Ethernet LAN and WAN cables The SmartNode 5200 has automatic MDX (auto-crossover) detection and configuration on all Ethernet ports. Any of the ports can be connected to a host or hub/switch with a straight-through wired cable. -
Page 24: Router Front Panel Leds
SmartNode 5200 Getting Started Guide 3 • SmartNode installation Power LAN ports 1–4 activity Figure 5. Router front panel LEDs 4. Verify that the green Power LED is lit (see figure Congratulations, you have finished installing the SmartNode Gateway Router! Now go to chapter 4, “Initial... -
Page 25: Initial Configuration
Chapter 4 Initial configuration Chapter contents Introduction ...26 Connecting the SmartNode to your laptop Configuring the desired IP address Factory-default IP settings Login ...27 Changing the WAN IP address Connecting the SmartNode to the network Loading the configuration (optional) Additional information...30 PC...26 ...27... -
Page 26: Introduction
The SmartNode 5200 Series is equipped with Auto-MDX Ethernet ports, so you can use straight-through cables for host or hub/switch connections (see Laptop PC Figure 6. -
Page 27: Configuring The Desired Ip Address
SmartNode 5200 Getting Started Guide Configuring the desired IP address Factory-default IP settings The factory default configuration for the Ethernet interface IP addresses and network masks are listed in Both Ethernet interfaces are activated upon power-up. LAN interface ETH 0/1 (LAN) provides a default DHCP server, the WAN interface uses DHCP client to automatically assign the IP address and network mask. -
Page 28: Connecting The Smartnode To The Network
In general, the SmartNode will connect to the network via the WAN (ETH 0/0) port. This enables the Smart- Node to offer routing services to the PC hosts on LAN (ETH 0/1) port. The SmartNode 5200 Series is equipped with Auto-MDX Ethernet ports, so you can use straight-through or crossover cables for host or... -
Page 29: Loading The Configuration (Optional)
SmartNode 5200 Getting Started Guide You can check the connection with the ping command from the SmartNode to another host on the network. 172.16.1.99(if-ip)[eth0]#ping <IP Address of the host> Note If the WAN address is LAN you must first configure the default gateway. (For information on con- figuring the default gateway, refer to section “Set IP addresses”... -
Page 30: Additional Information
SmartNode 5200 Getting Started Guide 172.16.1.99(if-ip)[eth0]#reload Running configuration has been changed. Do you want to copy the 'running-config' to the 'startup-config'? Press 'yes' to store, 'no' to drop changes : no Press 'yes' to restart, 'no' to cancel : yes... -
Page 31: Contacting Patton For Assistance
Chapter 5 Contacting Patton for assistance Chapter contents Introduction ...32 Contact information...32 Patton support headquarters in the USA Alternate Patton support for Europe, Middle East, and Africa (EMEA) Warranty Service and Returned Merchandise Authorizations Warranty coverage ...32 Out-of-warranty service Returns for credit ...33 Return for credit policy RMA numbers... -
Page 32: Introduction
SmartNode 5200 Getting Started Guide Introduction This chapter contains the following information: • “Contact information”—describes how to contact Patton technical support for assistance. • “Warranty Service and Returned Merchandise Authorizations RAS warranty and obtaining a return merchandise authorization (RMA). Contact information Patton Electronics offers a wide array of free technical services. -
Page 33: Out-Of-Warranty Service
SmartNode 5200 Getting Started Guide Out-of-warranty service Patton services what we sell, no matter how you acquired it, including malfunctioning products that are no longer under warranty. Our products have a flat fee for repairs. Units damaged by lightning or other catastro- phes may require replacement. -
Page 34: Compliance Information
Appendix A Compliance information Chapter contents Compliance ...35 ...35 Low-Voltage Directive (Safety) PSTN Regulatory ...35 CE Declaration of Conformity Authorized European Representative ...35 ...35 ...35... -
Page 35: Compliance
SmartNode 5200 Getting Started Guide Compliance • EN55022, Class A • EN55024 Low-Voltage Directive (Safety) • IEC/EN60950-1, 2nd edition • AS/NZS60950-1 PSTN Regulatory • TBR 3:1995 A1 • AS/ACIF S031:2001 CE Declaration of Conformity This device conforms to the requirements of Council Directive 1999/5/EC on the approximation of the laws of the member states relating to Radio and Telecommunication Terminal Equipment and the mutual recogni- tion of their conformity. -
Page 36: Specifications
Appendix B Specifications Chapter contents Data connectivity ...37 Voice signalling ...37 services...37 Management ...37 Operating environment ...38 Operating temperature ...38 Operating humidity ...38 System...38 Dimensions ...38 Weight and power dissipation ...38... -
Page 37: B Specifications
Manual Key; IKE optional AES/DES/3DES Encryption Note To use the IPSec VPN capabilities including AES/DES/3DES encryption with the SmartNode 5200, you may need to purchase additional license keys. Note The SmartNode 4562 is loaded with the VPN license from the factory. Management... -
Page 38: Operating Environment
SmartNode 5200 Getting Started Guide Built-in diagnostic tools (trace, debug) Operating environment Operating temperature 32–104°F (0–40°C) Operating humidity 5–80% (non condensing) System CPU Motorola MC875 operating at 66 MHz Memory: • 16 Mbytes SDRAM • 4 Mbytes Flash Dimensions 7.3W x 1.6H x 6.1D in. (18.5H x 4.1W x 15.5D cm) -
Page 39: Cabling
Appendix C Cabling Chapter contents Introduction ...40 Ethernet ...40... -
Page 40: Introduction
SmartNode 5200 Getting Started Guide Introduction This section provides information on the cables used to connect the SmartNode and the interface cards to the existing network infrastructure and to third party products. Ethernet Ethernet devices (10Base-T/100Base-T) are connected to the SmartNode over a cable with RJ-45 plugs. All Ethernet ports on the SN5200 &... -
Page 41: Port Pin-Outs
Appendix D Port pin-outs Chapter contents Introduction ...42 Ethernet ...42... -
Page 42: Introduction
SmartNode 5200 Getting Started Guide Introduction This section provides pin-out information for the ports of the SmartNode. Ethernet Note Pins not listed are not used. Introduction Table 7. RJ-45 socket Signal D • Port pin-outs... -
Page 43: Smartnode 5200 Factory Configuration
Appendix E SmartNode 5200 factory configuration Chapter contents Introduction ...44... -
Page 44: Introduction
SmartNode 5200 Getting Started Guide Introduction The factory configuration settings for SmartNode 5200 are as follows: #----------------------------------------------------------------# # 5200 # R3.xx BUILDxxxxx SIP # 2005-08-25T00:00:00 # Factory configuration file #----------------------------------------------------------------# dns-client server 10.56.128.44 dns-relay webserver port 80 language en sntp-client sntp-client server primary 129.132.2.21 port 123 version 4... - Page 45 SERVICE-SIP-LAN bind location-service LS-LAN context cs switch no shutdown authentication-service AUTHSERV username 37060 password qHDk6Ej6cAk= encrypted username 37061 password qHDk6Ej6cAk= encrypted username 37062 password qHDk6Ej6cAk= encrypted username 37063 password qHDk6Ej6cAk= encrypted Introduction E • SmartNode 5200 factory configuration...
- Page 46 1 authentication-service AUTHSERV username 37063 authentication inbound authenticate 1 authentication-service AUTHSERV username 37063 registration inbound location-service LS-WAN domain 1 sip.local.com identity-group IDENT-GROUP-WAN authentication outbound authenticate 1 authentication-service AUTHSERV registration outbound registrar sip.local.com register auto Introduction E • SmartNode 5200 factory configuration...
- Page 47 LS-LAN no shutdown port ethernet 0 0 medium auto encapsulation ip bind interface eth0 router no shutdown port ethernet 0 1 medium auto encapsulation ip bind interface eth1 router no shutdown Introduction E • SmartNode 5200 factory configuration...
-
Page 48: End User License Agreement
Appendix F End user license agreement Chapter contents End User License Agreement ...49 1. Definitions ...49 2. Title ...49 3. Term ...49 4. Grant of License ...49 5. Warranty ...49 6. Termination ...50 7. Other licenses ...50... -
Page 49: End User License Agreement
SmartNode 5200 Getting Started Guide End User License Agreement By opening this package, operating the Designated Equipment or downloading the Program(s) electronically, the End User agrees to the following conditions: 1. Definitions Effective Date shall mean the earliest date of purchase or download of a product containing the Patton Electronics Company Program(s) or the Program(s) themselves. -
Page 50: Termination
SmartNode 5200 Getting Started Guide If the Program(s) are acquired by or on behalf of a unit or agency of the United States Government, the Gov- ernment agrees that such Program(s) are commercial computer software or computer software documentation and that, absent a written agreement to the contrary, the Government’s rights with respect to such Program(s) are...
