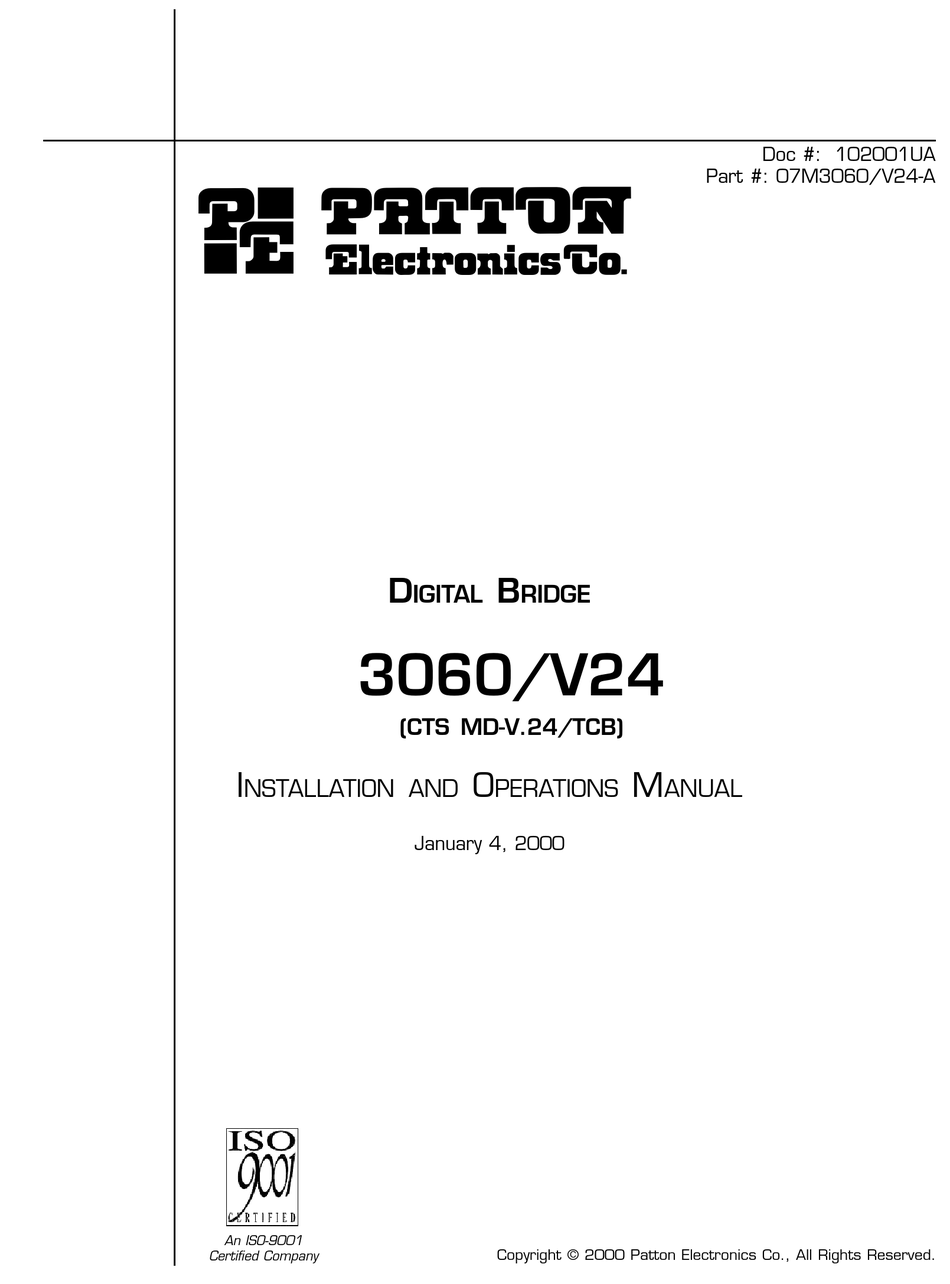

- Page 1 Doc #: 102001UA Part #: 07M3060/V24-A IGITAL RIDGE 3060/V24 (CTS MD-V.24/TCB) NSTALLATION AND PERATIONS ANUAL January 4, 2000 An ISO-9001 Copyright © 2000 Patton Electronics Co., All Rights Reserved. Certified Company...
-
Page 2: Copyright Notice
3060/V24 ATTON LECTRONICS NSTALLATION PERATIONS ANUAL 102001UA COPYRIGHT NOTICE Copyright © 2000 Patton Electronics Co., All Rights Reserved. PROPRIETARY NOTICE The information contained herein is proprietary and confidential to Patton Electronics Co. Any reproduction or redistribution of this publication, in whole or in part, is expressly prohibited unless written authorization is given by Patton Electronics Co. -
Page 3: Fcc Class A
NSTALLATION PERATIONS ANUAL 3060/V24 ATTON LECTRONICS 102001UA EMISSION REQUIREMENTS FCC CLASS A Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC rules. -
Page 4: Table Of Contents
3060/V24 ATTON LECTRONICS NSTALLATION PERATIONS ANUAL 102001UA Contents CHAPTER 1 - OPERATION Channel Clocking... 1-1 Fallback Clocking... 1-1 Channel Interface ... 1-1 Anti-streaming... 1-2 Channel Selection Modes ... 1-3 Channel Tail Circuits ... 1-4 Interface Connections ... 1-4 Front Panel LEDs ... 1-4 Channel Enable / Disable Switches ... -
Page 5: Chapter 1 - Operation
Sub-Channel 6 RX Clock (pin 17). Channel Interface The 3060/V24 (MD-V.24/TCB) has seven DB-25 female connectors located on the rear of the unit. Each port is DCE/DTE selectable, which eliminates the need for crossover cables. DSR or DTR can additionally be forced to the active state individually on each Sub-Channel by Jumper control. -
Page 6: Anti-Streaming
Operator Control mode (front panel push button switch). Automatic Anti-Streaming - Automatic Anti-streaming will block the asserted control signal from the Sub-Channel Port, releasing the 3060/V24 (MD-V.24/TCB) to accept requests from any other Sub-Channel that has not been locked out due to a streaming condition. When a Sub-Channel is locked out for streaming, a visual indication, by Sub-Channel, is provided on the front panel. -
Page 7: Channel Selection Modes
Sub-Channel become active that Sub-Channel is switched through to the master port by the 3060/V24 (MD-V.24/TCB). All remaining Sub-Channels are locked out until the first device becomes inactive. When the Sub-Channel device becomes inactive, the 3060/V24 (MD-V.24/TCB) will resume scanning the Sub-Channels for another active signal. -
Page 8: Channel Tail Circuits
The unit is Rackmountable for 19" or 23" cabinets, by ordering an optional Rackmount Kit. Safety approvals granted are UL, CSA and TÜV as well as emission approval for FCC Class A. PERATION 3060/V24 NSTALLATION OUT” position, the switch will PERATIONS... -
Page 9: Chapter 2 - Setup And Installation
AC outlet. Factory Configuration Switch Settings The 3060/V24 (CTS MD-V.24/TCB) is configured prior to shipment with the switches set to the following default positions: Switch 21 - 1,2,3 and 8 to OFF... -
Page 10: Disassembly
"PORT 1" on the rear panel of the 3060/V24 (CTS MD-V.24/TCB). Secure other terminals or Modems to be serviced to the remaining “PORT” connectors. Connect the MODEM or TERMINAL to the connector designated “MASTER DTE/DCE”. -
Page 11: Rts To Cts Delay (Sw22-1,2,3)
Receive Data Mode (SW23-4) Setting switch SW23-4 to ON ON sets the 3060/V24 (CTS MD-V.24/TCB) into the Gated Mode. Only the Sub-Channel that is currently active will receive the data from the master port. Setting OFF enables the Broadcast mode. Receive Data from the Master Port is sent to position 4 to OFF all Sub-Channels. -
Page 12: Control Turn-Off Delay In "Data" Switching Mode (Sw23-1,2)
The value selected is the number of clocks at the current baud rate that must occur without any data transitions on the Sub-Channel to indicate that Sub-Channel has completed its transmission and the 3060/V24 (CTS MD-V.24/TCB) can resume servicing the other Sub- Channels. The following table should be used to set this time period. -
Page 13: Fallback Clock Enable (Sw-23-5)
TX Clock Source Selection (SW21-4,5,6) TX Clock Source is selected by switch SW21-4, 5 and 6. The following table indicates the source options provided by the 3060/V24 (CTS MD-V.24/TCB). When using the unit in Async Mode, the INTERNAL clock source must be selected. -
Page 14: Rx Clock Source Selection (Sw24-1,2,3)
RX Clock Source is selected by SW24-1, 2 and 3. The following table indicates the source options provided by the 3060/V24 (CTS MD-V.24/TCB). If the TXC source is pin 24, both RXC and TXC will be sourced from pin 24. When the unit is used in an Async network select INTERNAL as the source of the RX Clock. -
Page 15: Test Voltage Enable Pins 9 & 10 (Jp4 & Jp5)
DTR/DSR jumper (JP6-JP12) for the appropriate Sub-Channel will solve this problem. The line is forced to +8V via an 820 resistor, providing isolation to any driver that might be on the interface. Channel Jumper Channel Master 3060/V24 NSTALLATION Jumper JP10 JP11... -
Page 16: Factory Test Jumpers (Jp1, Jp2 And Jp3)
3060/V24 ATTON LECTRONICS NSTALLATION PERATIONS ANUAL 102001UA FACTORY Test Jumpers (JP1, JP2 and JP3) The three test jumpers JP1, 2 and 3, must be installed for the unit to properly function. These jumpers are used in the manufacture and test of the product prior to shipment. -
Page 17: Appendix
ATTON LECTRONICS APPENDIX Leased Dial Line RS-232 MODEM 3060/V24 3060/V24 RS-232 Leased Dial Line RS-232 MODEM Typical Application Typical Tail Circuit Configuration Interface Pins Supported NSTALLATION PERATIONS ANUAL RS-232 Leased Dial Line RS-232 MODEM RS-232 RS-232 102001UA PPENDIX... -
Page 18: Master Dte / Sub-Channel Dte Interface Flow Diagram
3060/V24 ATTON LECTRONICS NSTALLATION PERATIONS ANUAL 102001UA Master DTE / Sub-Channel DTE Interface Flow Diagram Master DTE / Sub-Channel DCE Interface Flow Diagram PPENDIX... -
Page 19: Master Dce / Sub-Channel Dte Interface Flow Diagram
3060/V24 ATTON LECTRONICS NSTALLATION PERATIONS ANUAL 102001UA Master DCE / Sub-Channel DTE Interface Flow Diagram Master DCE / Sub-Channel DCE Interface Flow Diagram PPENDIX... -
Page 20: Technical Specifications
Scanning Mode: .. Channels are continuously scanned for activity on a sequential basis. Priority Mode: ... Channels are simultaniously monitored channel one has highest access PPENDIX 3060/V24 NSTALLATION Sub-Channel Interface EIA RS-232 female connectors (DB-25) Master Interface EIA RS-232 female connector (DB-25) Front Panel Indicators: . - Page 21 JP6 Thru JP12 Force DTR (20) / DSR(6) Active on the Master or Associated Port Master RX Clock Source SW24 S W 7 S W 8 Source Master O F F Port 1 O F F Port 2 O F F O F F Port 3 O F F...
