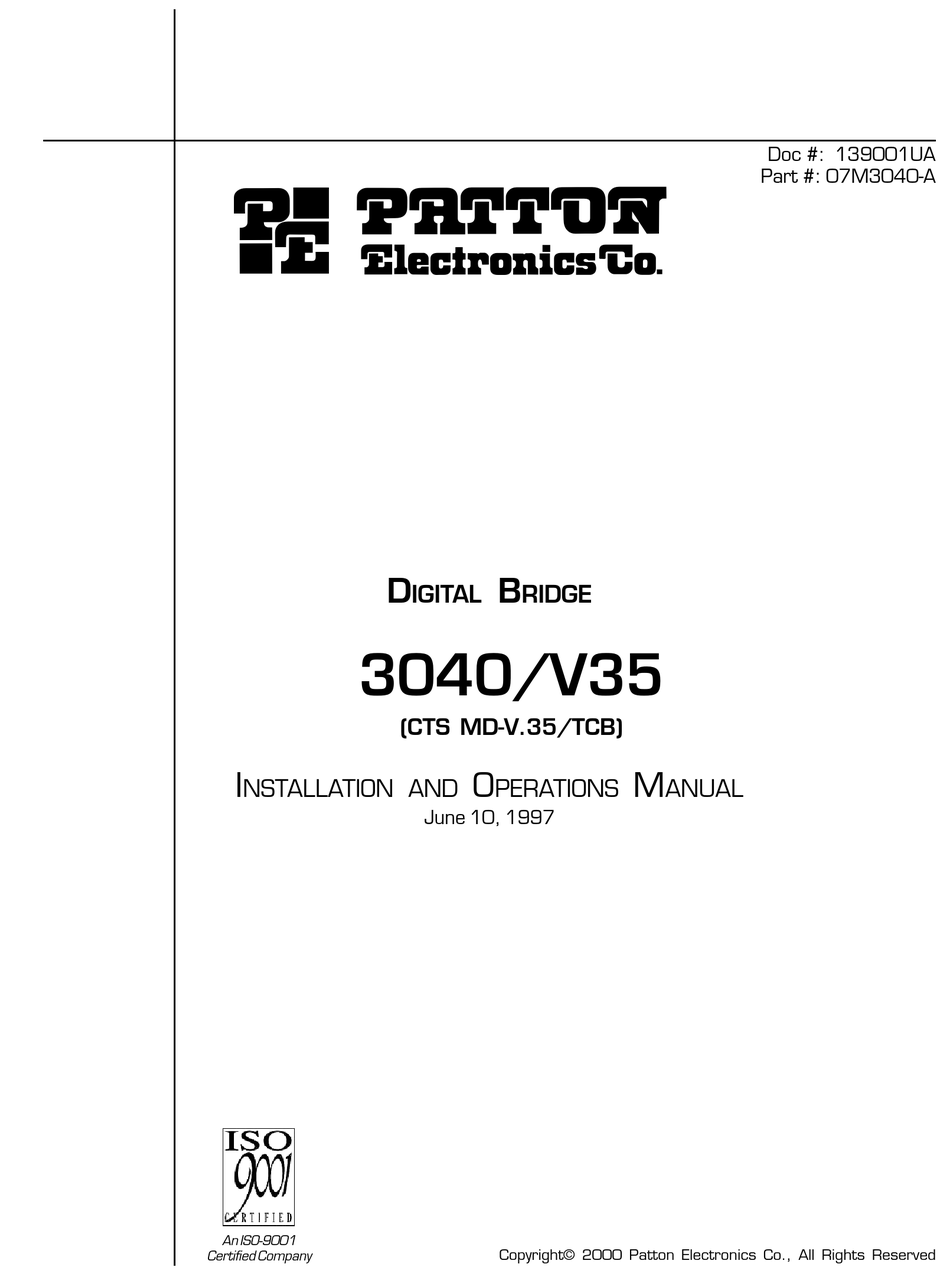

- Page 1 Doc #: 139001UA Part #: 07M3040-A IGITAL RIDGE 3040/V35 (CTS MD-V.35/TCB) NSTALLATION AND PERATIONS ANUAL June 10, 1997 An ISO-9001 Copyright© 2000 Patton Electronics Co., All Rights Reserved Certified Company...
-
Page 2: Copyright Notice
3040/V35 ATTON LECTRONICS NSTALLATION PERATIONS ANUAL 139001UA COPYRIGHT NOTICE Copyright© 2000 Patton Electronics Co., All Rights Reserved. PROPRIETARY NOTICE The information contained herein is proprietary and confidential to Patton Electronics Co. Any reproduction or redistribution of this publication, in whole or in part, is expressly prohibited unless written authorization is given by Patton Electronics Co. -
Page 3: Radio And Tv Interference
3040/V35 ATTON LECTRONICS NSTALLATION PERATIONS ANUAL 139001UA EMISSION REQUIREMENTS RADIO AND TV INTERFERENCE The Patton devices generate and use radio frequency energy, and if not installed and used properly—that is, in strict accordance with the manufacturer’s instructions—may cause interference to radio and television reception. The Patton devices have been tested and found... -
Page 4: Table Of Contents
3040/V35 ATTON LECTRONICS NSTALLATION PERATIONS ANUAL 139001UA Contents CHAPTER 1 - OPERATION Channel Clocking ... 1-1 Fallback Clocking ... 1-1 Channel Interface ... 1-1 Anti-streaming ... 1-2 Channel Selection Modes ... 1-2 Channel Tail Circuits ... 1-3 Interface Connections ... 1-4 Front Panel LEDs ... -
Page 5: Chapter 1 - Operation
In the event of loss of an externally provided clock or optionally Sub-Channel 1 DCD becoming inactive, the 3040/V35 (CTS MD-V.35/TCB) has the ability to automatically fall back to the predetermined internal baud rate clock or the Sub-Channel 4 RX Clock (pins V,X). -
Page 6: Anti-Streaming
Manual Anti-Streaming - If manual Anti-Stream protection is chosen, a streaming condition caused by one of the attached terminals can be quickly corrected by the 3040/V35 (CTS MD- V.35/TCB) via the associated front panel locking switches. A switch is provided for each Sub- Channel and permits the rapid removal of a streaming terminal without having to disconnect any cables or power down the offending terminal. -
Page 7: Channel Tail Circuits
PERATIONS ANUAL 139001UA In the Scanning Mode the CTS 3040/V35 (CTS MD-V.35/TCB) scans each Sub-Channel, in sequence, beginning with Sub-Channel 1. This rotational sequence is repeated continually with each attached Sub-Channel having equal access to the communications link. When data or control lines from a Sub-Channel become active that Sub-Channel is switched through to the master port by the 3040/V35 (CTS MD-V.35/TCB). -
Page 8: Interface Connections
The unit is Rackmountable for 19" cabinets or optional 23" cabinets, by using the provided Rackmount Kit. Safety approvals granted are UL and CSA as well as emission approval for FCC Class A. PERATION 3040/V35 NSTALLATION OUT” position, the switch will PERATIONS... -
Page 9: Chapter 2 - Setup And Installation
You may now connect the power cord into your AC outlet. Factory Configuration Switch Settings The 3040/V35 (CTS MD-V.35/TCB) is configured prior to shipment with the switches set to the following default positions: Switch 15 - 1,2,3, 4 and 8 to OFF... -
Page 10: Disassembly
“PORT 1” on the rear panel of the 3040/V35 (CTS MD-V.35/TCB). Secure other terminals or Modems to be serviced to the remaining “PORT” connectors. Connect the MODEM or TERMINAL to the connector designated “MASTER DTE/DCE”. -
Page 11: Equipment Grounding (Sw15-1)
The maximum data block size is user selectable via switch SW18- 1, 2 and 3. As shown below eight block sizes are provided to the user. To disable anti-streaming set SW18-8 to the OFF position. The maximum block size is normally defined at the time of installation. SW18-1 SW18-2 SW18-3 CLOCKS 3040/V35 NSTALLATION PERATIONS ANUAL... -
Page 12: Receive Data Mode (Sw18-7)
The value selected is the number of clocks at the current baud rate that must occur without any data transitions on the Sub-Channel to indicate that Sub-Channel has completed its transmission and the 3040/V35 (CTS MD-V.35/TCB) can resume servicing the other Sub- Channels. The following table should be used to set this time period. -
Page 13: Fallback Clock Enable (Sw16-7)
If Fallback is required, two modes are available via switch SW16-6. To Fallback when the transitions from the primary clock source stop, set SW16-6 to ON Sub-Channel 1 becomes inactive, set SW16-6 to OFF 3040/V35 NSTALLATION ON. The Fallback clock rate is selected with the ON. -
Page 14: Tx Clock Source Selection (Sw17-1,2,3)
RX Clock Source is selected by SW18-4, 5 and 6. The following table indicates the source options provided by the 3040/V35 (CTS MD-V.35/TCB). If the TXC source is pins U,W, both RXC and TXC will be sourced from pins U,W. When the unit is used in an Async network select INTERNAL as the source of the RX Clock. -
Page 15: Tail Circuit Buffers (Sw16-4)
LECTRONICS Tail Circuit Buffers (SW16-4) The 3040/V35 (CTS MD-V.35/TCB) has a Tail Circuit Buffer that is automatically selected when a Sub-Channel is set as a DTE. The buffer will provide clock synchronization of the data from the Sub-Channel to the Master Port for Tail Circuit operations. The buffer is de-activated when the Sub-Channel is configured as a DCE. -
Page 16: Dtr / Dsr Forced Active (Jp8 Thru Jp12)
The three test jumpers JP1, 2 and 3, must be installed for the unit to properly function. These jumpers are used in the manufacture and test of the product prior to shipment. & I ETUP NSTALLATION 3040/V35 NSTALLATION resistor, providing isolation to any driver Jumper Channel... -
Page 17: Appendix
3040/V35 ATTON LECTRONICS NSTALLATION PERATIONS ANUAL 139001UA APPENDIX V.35 V.35 Leased Dial Line V.35 DSU/CSU V.35 Leased 3040/V35 Dial Line V.35 DSU/CSU 3040/V35 Typical Application Typical Tail Circuit Configuration PPENDIX... -
Page 18: M-34 Interface Pins Supported
Receive Clock(A) (from DCE) Data Terminal Ready (from DTE) Receive Data(B) (from DCE) Receive Data(A) (from DCE) Transmit Data(A) (from DTE) DB-25 Interface Pins Supported PPENDIX 3040/V35 R D ( A ) RT(A) R D ( B ) RT(B) TD(A) ETT(A) -
Page 19: Master Dte / Sub-Channel Dte Interface Flow Diagram
3040/V35 ATTON LECTRONICS NSTALLATION PERATIONS ANUAL 139001UA Master DTE / Sub-Channel DTE Interface Flow Diagram Master DTE / Sub-Channel DCE Interface Flow Diagram PPENDIX... -
Page 20: Master Dce / Sub-Channel Dce Interface Flow Diagram
3040/V35 ATTON LECTRONICS NSTALLATION PERATIONS ANUAL 139001UA Master DCE / Sub-Channel DCE Interface Flow Diagram Master DCE / Sub-Channel DTE Interface Flow Diagram PPENDIX... -
Page 21: Technical Specifications
Scanning Mode: ... Channels are continuously scanned for activity on a sequential basis. Priority Mode: ... Channels are simultaniously monitored channel one has highest access 3040/V35 NSTALLATION Sub-Channel Interface CCITT V.35 female connectors (MR-34) Master Interface CCITT V.35 female connector (MR-34 & DB-25) Front Panel Indicators: ... - Page 22 V.35 on DB-25 No Data Timer - SW15 Count 2048 SW15 CTS Delay Timer - SW16 Signal to Chassis Ground Delay Unused No Delay No Data Timeout 1 mS 2 mS 4 mS Baud Rate Selection 8 mS 16 mS OF F 32 mS 64 mS...
