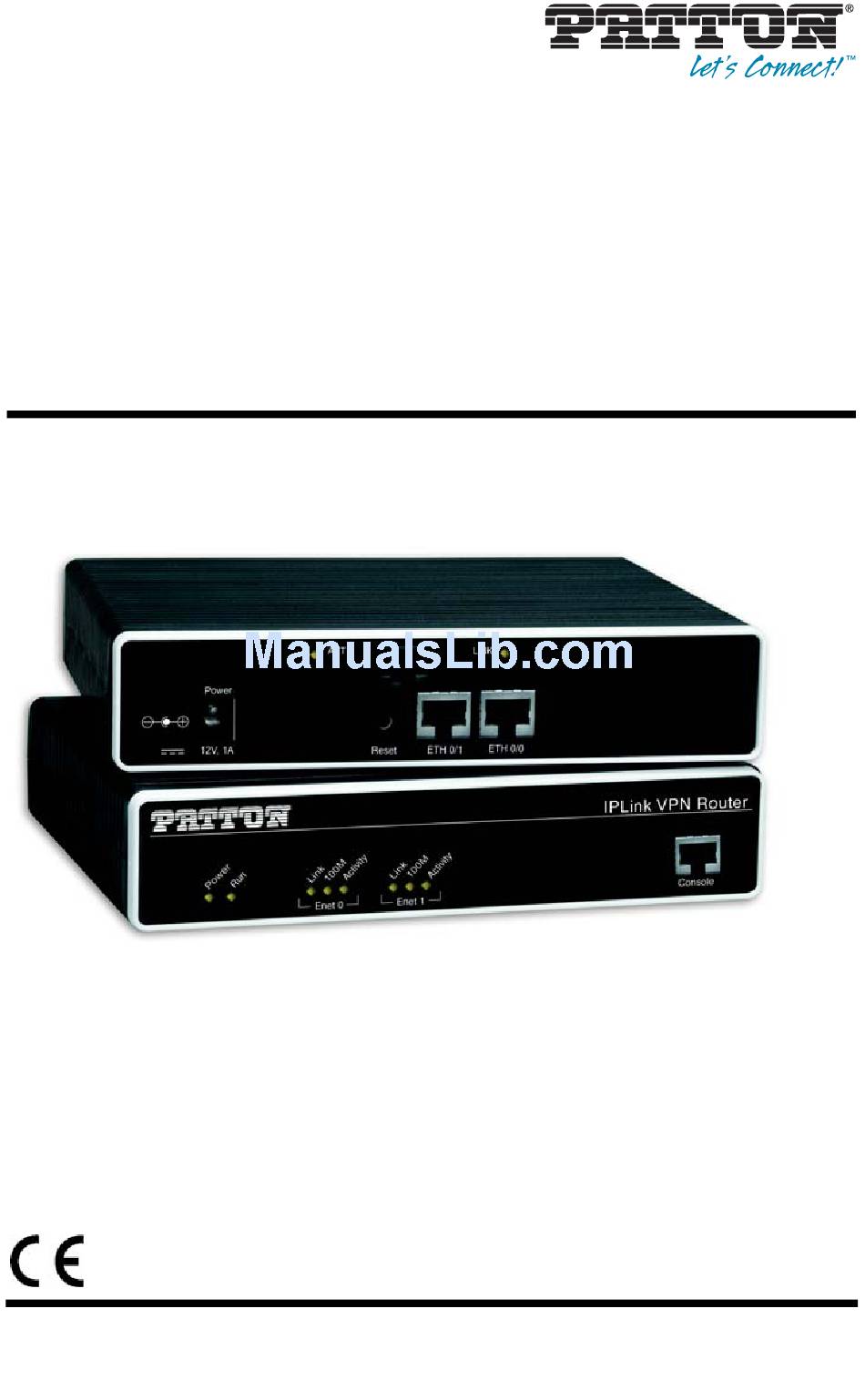

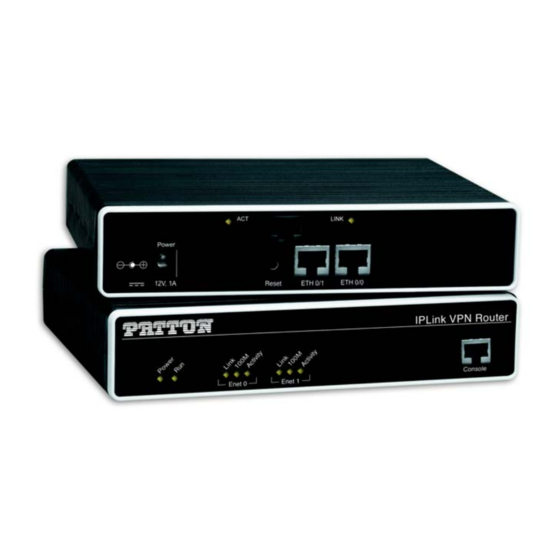

Page 1: Quick Start Guide
OnSite™ 3210 Series G.SHDSL VPN Router Quick Start Guide Sales Office: +1 (301) 975-1000 Technical Support: +1 (301) 975-1007 Part Number: 07M3210-QS, Rev. B E-mail: support@patton.com Revised: February 23, 2012 WWW: www.patton.com... - Page 2 • The OnSite contains no user serviceable parts. The equipment shall be returned to Patton Electronics for repairs, or repaired by qualified service personnel. WARNING • Mains Voltage: Line voltages are present when the power cord is con- nected. The mains outlet shall be within 10 feet (3 meters) of the device, shall be easily accessible, and protected by a circuit breaker.
-
Page 3: Setting The Ip Address
1.3 Models with internal DC power supply Strip insulation 1/4-inch from the wires connecting the power source to the OnSite. Connect the ground terminal from the power source with to the E terminal on the OnSite. Connect the negative (-) terminal from the power source with to the (-) terminal on the OnSite. Connect the positive (+) terminal from the power source with to the (+) terminal on the OnSite. -
Page 4: Changing The Ip Address
Open a Telnet connection to the default LAN IP address of the OnSite (192.168.1.1). Use the name administrator after the login prompt and simply press the Enter key after the password prompt. login:administrator password: 3210/EUI> The prompt includes the model number of your OnSite (3210/EUI in the example above) of the WAN Note (ETH 0/0) port. -
Page 5: Connecting To The Network
3.0 Connecting to the network Connect the OnSite to the IP network (see 2) and do any remaining configuration from a PC connected Figure to the same Ethernet segment. Host with Telnet Client 192.168.1.10/24 192.168.1.1/24 172.16.1.100/24 Host with TFTP server (static IP address) IP Network 172.16.1.X/24... -
Page 6: Additional Information
5.0 Additional information For detailed information about configuring and operating guidance, set up procedures and troubleshooting, refer to the OnSite Model 3210 User Manual available online at www.patton.com/manuals/3210.pdf. 6.0 EC Declaration of Conformity OnSite 3210 Product Description: We certify that the apparatus identified above conforms to the requirements of Council Directive 1999/5/EC on the approximation of the laws of the member states relating to Radio and Telecommunication Terminal Equip- ment and the mutual recognition of their conformity. -
Page 7: Copyright Statement
Copyright statement Copyright © 2012, Patton Electronics Company. All rights reserved. The information in this document is subject to change without notice. Patton Electronics assumes no liability for errors that may appear in this document. Trademarks statement The term OnSite is a trademark of Patton Electronics Company. All other trademarks presented in this document are the property of their respective owners. - Page 8 OnSite 3210 Quick Start Guide...
