When all the cables are connected, verify that the following status light behavior
takes place:
•
•
•
•
•
CellPipe IAD 4A and CellPipe IAD 8T Hardware Installation Guide
The pwr light is on initially and remains on. If not on, make sure the power
supply is properly connected.
The act light blinks during any LAN traffic. Otherwise, it remains off.
The lnk light is on if an Ethernet connection is established. If not on, check to
make sure your Ethernet cable is properly connected.
The wan light blinks until a DSL connection is established, and then it remains
on.
The con light is on only during the CellPipe IAD unit self-test and blinks when a
voice port is offhook.

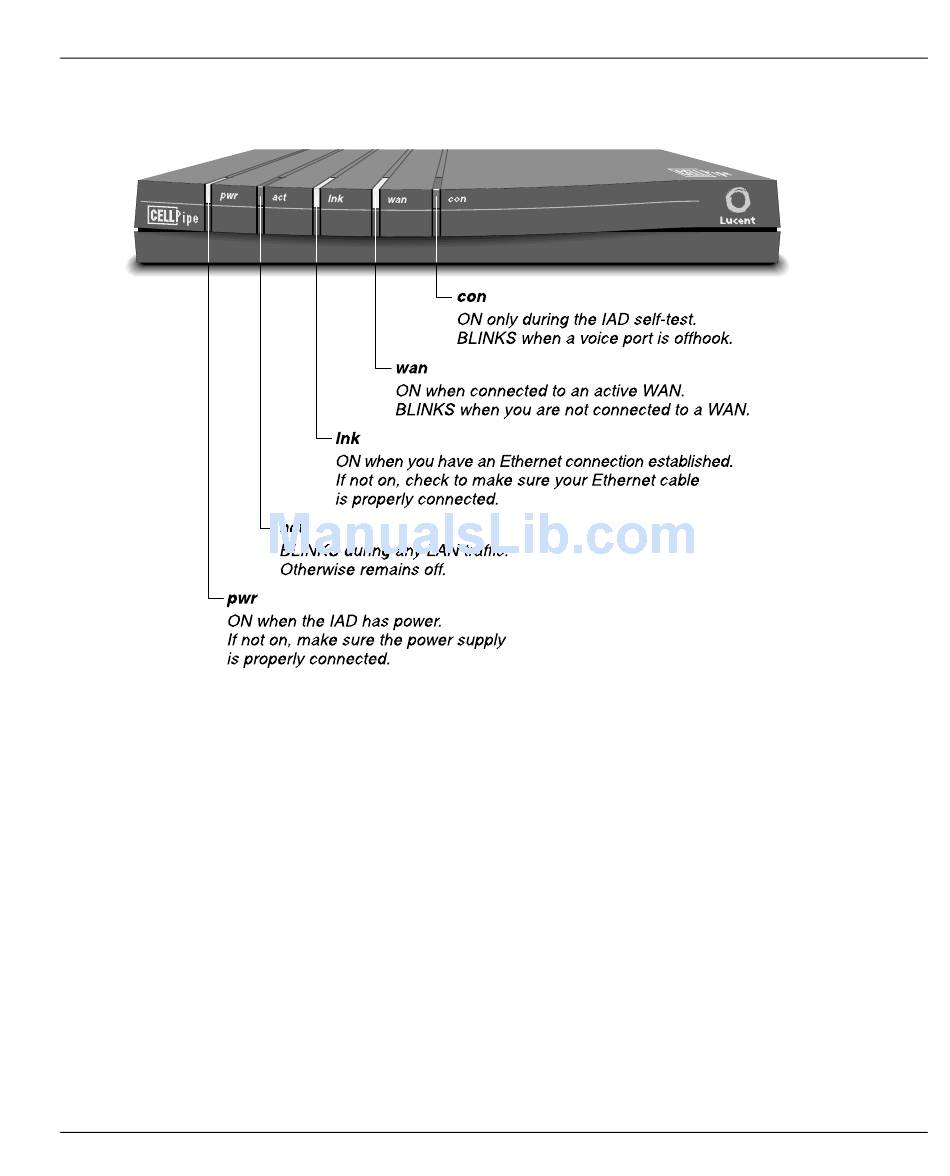

Checking the activity of CellPipe IAD 4A status lights
