Checking the activity of CellPipe IAD 4A status lights

7

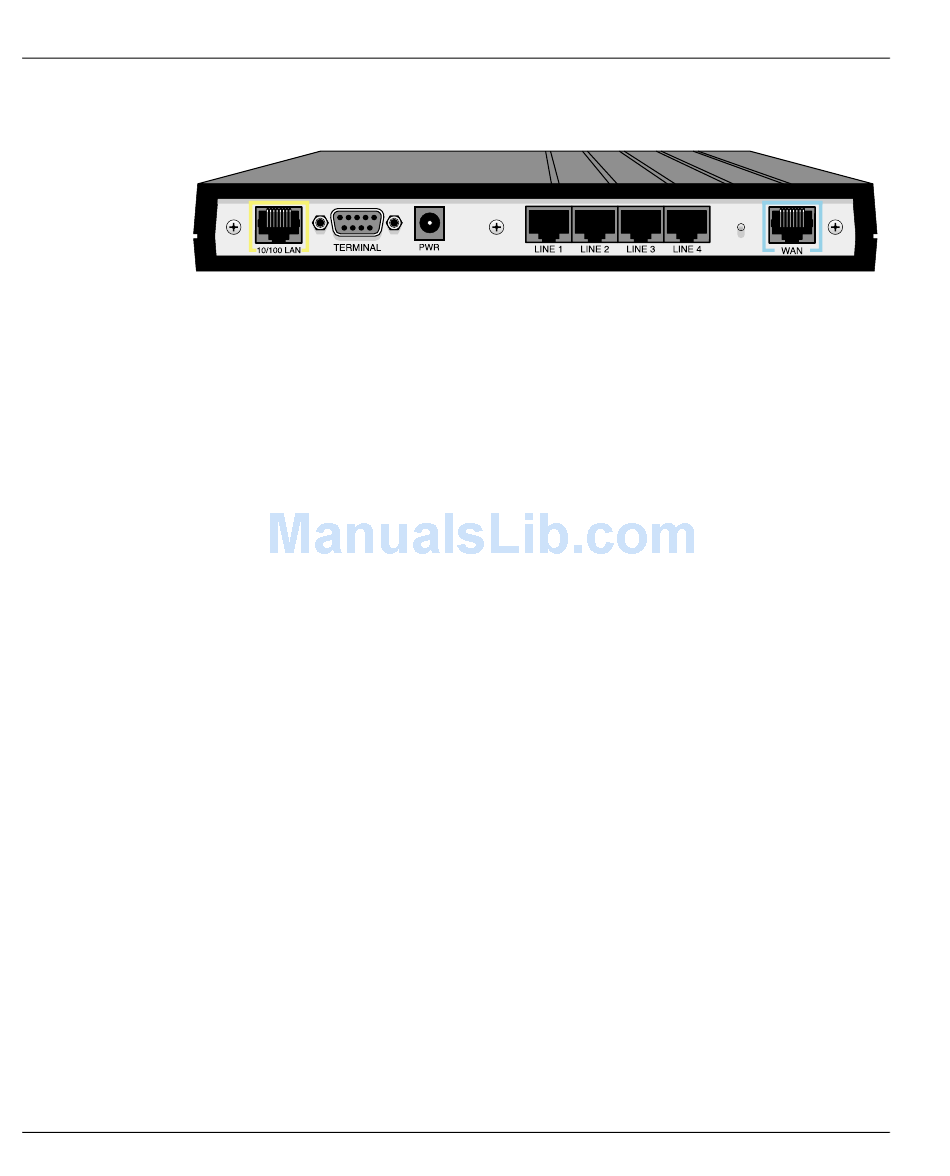

To connect to the CellPipe IAD 4A unit, proceed as follows:
1
2
3
4
5
Note: The unit has no power switch and connecting the power cable turns on the
CellPipe IAD unit.
Checking the activity of CellPipe IAD 4A status
lights
Observe the activity pattern of the lights on the front of the CellPipe IAD 4A unit to
verify that the unit is connected properly.
6
Warranty card
Connect one end of the yellow Ethernet cable to the port labeled LAN on your
unit and the other end to the Ethernet adapter on your computer.
Note: To connect the CellPipe unit to an Ethernet hub, use a straight-through
Ethernet cable (not supplied).
Connect one end of the blue WAN cable to the port labeled WAN and plug the
other end into the wall jack.
Connect up to four telephone lines to the four POTS ports.
Connect the power cable to your unit.
Plug the other end of the power cable into a wall outlet.
