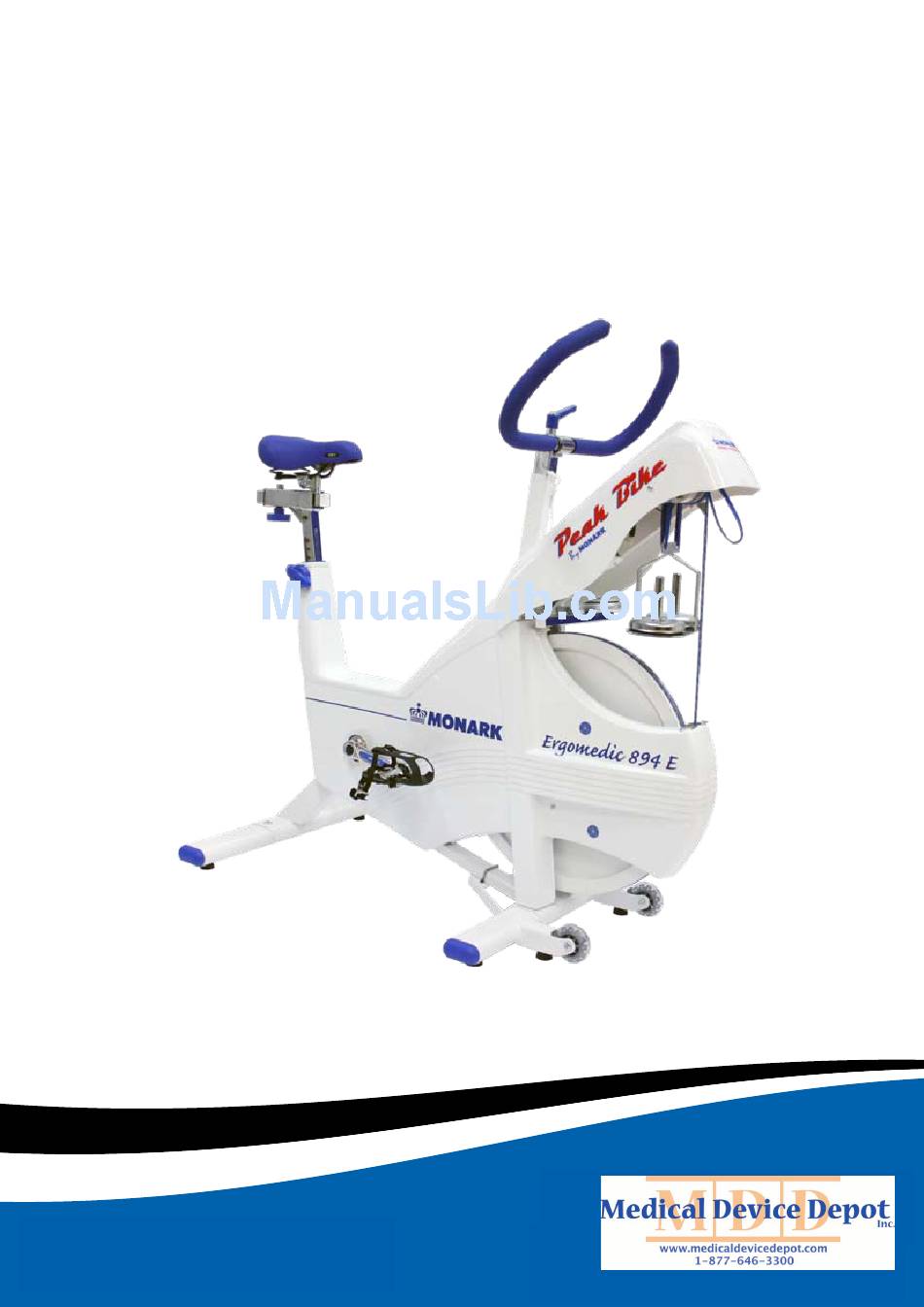

  • Page 1 Manual for 894 E...

  • Page 2: Table Of Contents

    Brake belt contact surface ���������������������������������� 15 Chain 1/2“ x 1/8“ ������������������������������������������������� 16 Freewheel sprocket ��������������������������������������������� 17 Spare parts list ��������������������������������������������� 18 Important Read the manual carefully before using the cycle and save it for future use. 2013 MONARK EXERCISE AB, Vansbro, Sweden...

  • Page 3: Monark Exercise Ab

    Monark Exercise AB Monark has 100 years’ experience of bicycle production. The Monark tradition has yielded know-how, experience, and a real feel for the product and quality. Since the early 1900s, Monark’s cycles have been living proof of precision, reliability, strength and service. Those are the reasons why we are now the world leader in cycle ergometers and the market leader in Scandinavia in transport cycles.

  • Page 4: Product Information

    Congratulations on your new Ergometer! • Stable frame, solid steel tube • Powder painted The Monark 894 E is an ergometer for anaerobic • Wheels for easy transport tests that also works as a normal traditional weight • Electronic meter with heart rate ergometer.

  • Page 5: Operating Instruction

    “MAX” on the stem (3). The handlebar setting should be in a comfortable position when cycling. During longer exercise sessions it is recommended to occasionally change handlebar position. To adjust the handlebar, loosen the quick release lever (2). See Fig: Adjustments. Monark 894 E...

  • Page 6: Connection To Pc

    Wingate tests and so forth. The anaerobic tests can easily be Before installing the Monark Software for your set from 5 up to 300 seconds duration. For a closer ergometer, you must take the following steps.

  • Page 7: Meter Instructions

    The timer starts automatically when pedals are moved. Meter values for Time, Distance and Calories can be set to zero by pressing the RESET button for more than two seconds. Monark 894 E...

  • Page 8: Calories

    "burnt" on the flywheel. We have chosen the formula given above that we think complies with the results given for a standard cycle position. Monark 894 E...

  • Page 9: Adjusting The Brake Cord/Belt Tension

    Fig: Brake device 1) Release button 2) Stop 3) Cord bracket 4) Tension center 5) Return strap 6) Weight basket 7) DC connector 8) PC serial port 9) Pin on tension center 10) Tip of the magnet arm Monark 894 E...

  • Page 10: Troubleshooting Guide

    Check if the brake belt is to tight so the magnet will not pass the sensor. This will result in no signal from sensor. There is a video available of website www.monark.net which describe adjustment. Bike would not start. •...
  • Page 11 2. Incorrect type of data cable is used. Correct type 0-modem cable. 3. Start button in Monark software has not been activated. 4. Communication settings within the Monark software is not correct. Try to change COM-port. In the software’s menu click on –...
  • Page 12 Connector R: Sensor on flywheel Connector +: Power supply (red/black wire) Connector M: Magnet Connector RS232: Communication cables (5 pcs) Connector 1MS: Button on handlebar Fig: Sensor and magnets on flywheel. 1) Sensor 2) Magnets (6 pcs.) Monark 894 E...

  • Page 13: Service

    Play in bearings causes fast wearing and with that follows a highly reduced lifetime. • Check that the flywheel is placed in the center and with plane rotation. Monark 894 E...

  • Page 14: Batteries

    The flywheel bearing is long-term greased and requires Brake belt contact surface no supplementary lubrication. If a problem arises, please contact your Monark dealer. Deposits of dirt on the brake belt and on the contact surface may cause the unit to operate unevenly and will Crank bearing also wear down the brake belt.

  • Page 15: Chain 1/2" X 1/8

    Otherwise the chain and sprockets make a lot of noise and wear out rapidly. Fig: Chain replacement 4) Lock spring 5) Movement direction Then assemble the removed parts as above but in 6) Chain lock reverse order. Monark 894 E...

  • Page 16: Freewheel Sprocket

    The sprocket should be lubricated with a few drops of oil once a year. Tilt the cycle to make it easier for the oil to reach the bearing. See Fig: Lubrication. Fig: Lubrication Fig: Hub assembly Monark 894 E...

  • Page 17: Spare Parts List

    9300-716 Bushing f. saddle post 9394-70 Frame cover, right 9334-110 Saddle 5671-19 Screw 5466 -Saddle clamp 9374-16 Magnet 9300-293 Handlebar, complete with but- 9339-98 Chest belt 9100-180 -Screw 9300-365 PC program 5866 -Washer 9338-20 USB- Serial converter Monark 894 E...
  • Page 18 14380 Screw 9374-21 Stop 5843-9 Locking nut 14374 Screw M8 160mm 9374-23 Holder for sensor 9103-41 Screw 9324-25 Weight basket 9326-270 Sensor with cable 390 mm 5844 Locking nut M8 9374-22 Holder for sensor 9384-650 Power adaptor Monark 894 E...
  • Page 19 Version 1312 Art. No: 7950-312 KROONS VÄG 1, SE-780 50 VANSBRO, SWEDEN | WWW.MONARKEXERCISE.SE | TEL: +46(0)281 59 49 40 | FAX: +46(0)281 719 81...
