LED mode select button and indicator LEDs
The Port Mode LED shows Activity (Act LED on), Duplex (FDx LED on), or Speed (Spd LED on). Press
the LED Mode Select button to sequence through the three modes.

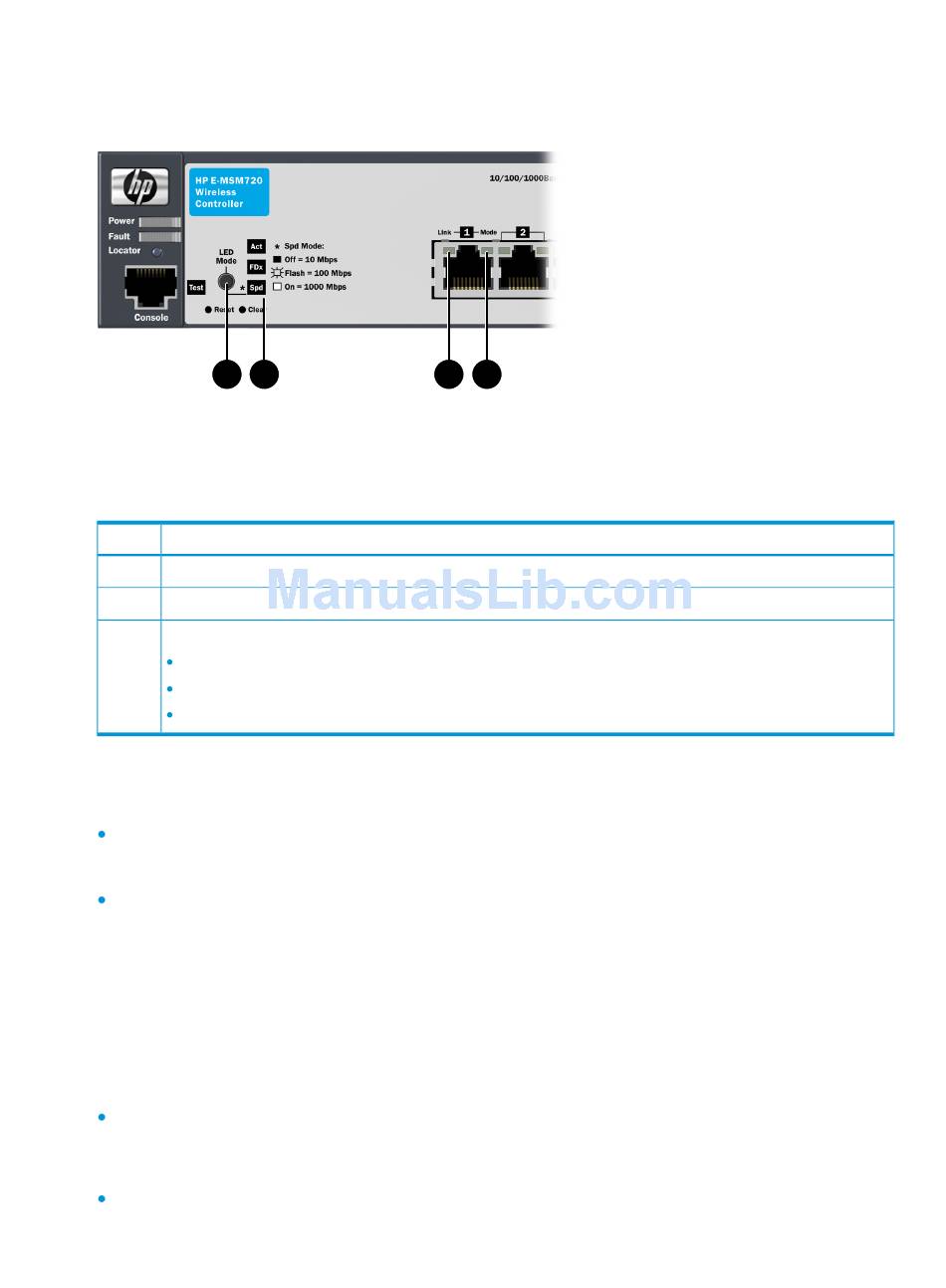

Figure 2 LED mode select button and LEDs
1. LED Mode Select button
2. Mode Indicator LEDs (Act, FDx, Spd)
Table 3 Port mode indicator LEDs
Mode
Meaning
Act
The Port Mode LED displays network activity.
FDx
The Port Mode LED is on when the port is in full-duplex mode.
Spd
The Port Mode LED indicates port speed:
If the Port Mode LED is off, the port is operating at 10 Mbps.
If the Port Mode LED is flashing, the port is operating at 100 Mbps.
If the Port Mode LED is on, the port is operating at 1000 Mbps.

Restarting the controller

HP recommends that you use the web interface to restart the controller as follows:
Simplified UI
Select Views > Home > Summary > Restart.
Advanced UI
Select Controller >> Maintenance > System > Restart.
Alternatively, the controller can be restarted by pressing the Reset button on the front panel. To
restart the controller, insert a paper clip into the Reset button hole, and press and quickly (in less
than four seconds) release the button.

Resetting the controller to factory defaults

HP recommends that you use the web interface to reset the controller to factory defaults as follows:
Simplified UI
1.
Select Views > Software Settings > Backup & Restore > Restore.
2.
Under Restore to Factory Defaults, select Restore to Factory Defaults.
Advanced UI
1.
Select Controller >> Maintenance > Config file management.
2.
Under Reset configuration, select Reset.
6
Product overview
1
2
3
4
3. Port Link LED
4. Port Mode LED
