ZXMSG 5200 (V2.0.2) Multiplex Service Gateway Technical Manual
Description
Introduction
Structure
4 Confidential and Proprietary Information of ZTE CORPORATION
H.248 system is responsible for maintaining connection between
ZXMSG 5200 and SoftSwitch (SS), interpreting and executing SS
commands. H.248 describes service (CALL) and its operation
logically. The CALL implements following functions.
H.248 command execution
Physical operations on ZXMSG 5200 through bottom layer
drive software
Signal receiving and forwarding to the H.248 system
Operations maintenance and creation related with ZXMSG
5200 structure
Refer to System Description for the functions and operation flow
of the software modules.

Hardware Architecture

ZXMSG 5200 hardware system consists of a control unit and a
subscriber unit. The control unit implements system functions
and service access expansion unit implements expansion to
serve more subscribers.

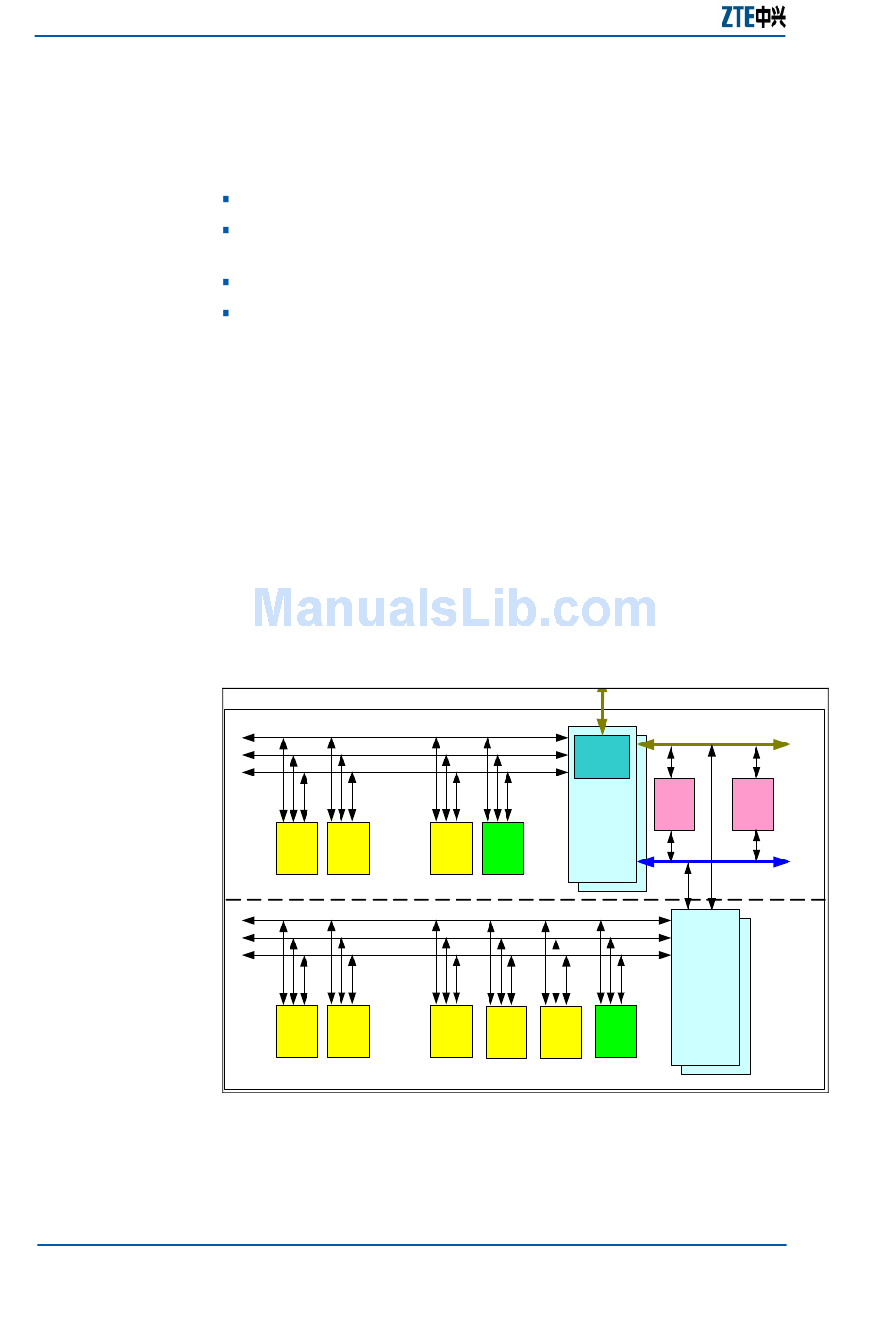

Figure 3 shows the ZXMSG 5200 hardware structure.
F 3 – Z X M S G 5 2 0 0 H
I G U R E
100M Ethernet
8K,2M,4M Clock
2M Hw
LC0 LC1 ...
Control unit (shelf)
100M Ethernet
8K,2M,4M Clock
2M Hw
LC0 LC1 ...
Subscriber unit (shelf)
LC: Line Card, including narrowband line card and broadband line card
TSLC: Test Subscriber Line Card
S
A R D W A R E T R U C T U R E
CNIC
ICS
LC9 TSLC
LC9
LC10 LC11
ICS: Integrated Control and Switch Card
2*100M, 1GE
Ethernet
2*100M
MPR MPR
ICS
2*8MHw
1*8MHw 1*100M
ICS
ICS
TSLC
