Vehicle Menu

Use the Vehicle menu to configure the field computer for the machine or implement configuration. The field
computer requires calibration for the GPS antenna location on each vehicle as well as the swath width
(guidance width) and the section configuration for the machine or implement. Once configured, vehicle profiles
can be saved for later use, transferred to a USB drive, or loaded onto another Envizio Pro field computer.

Low Speed Mode

A filter is normally applied to the course over ground or heading information displayed by the Envizio Pro at
speeds under 1.5 mph [2.4 km/h]. The low speed mode reduces the minimum speed to 0.7 mph [1.1 km/h] for
operations and equipment that require normal operation speeds near this range. It is recommended to disable
the low speed mode if the normal operation speeds for field operations will be above 1.5 mph [2.4 km/h]
consistently.

Guidance Width

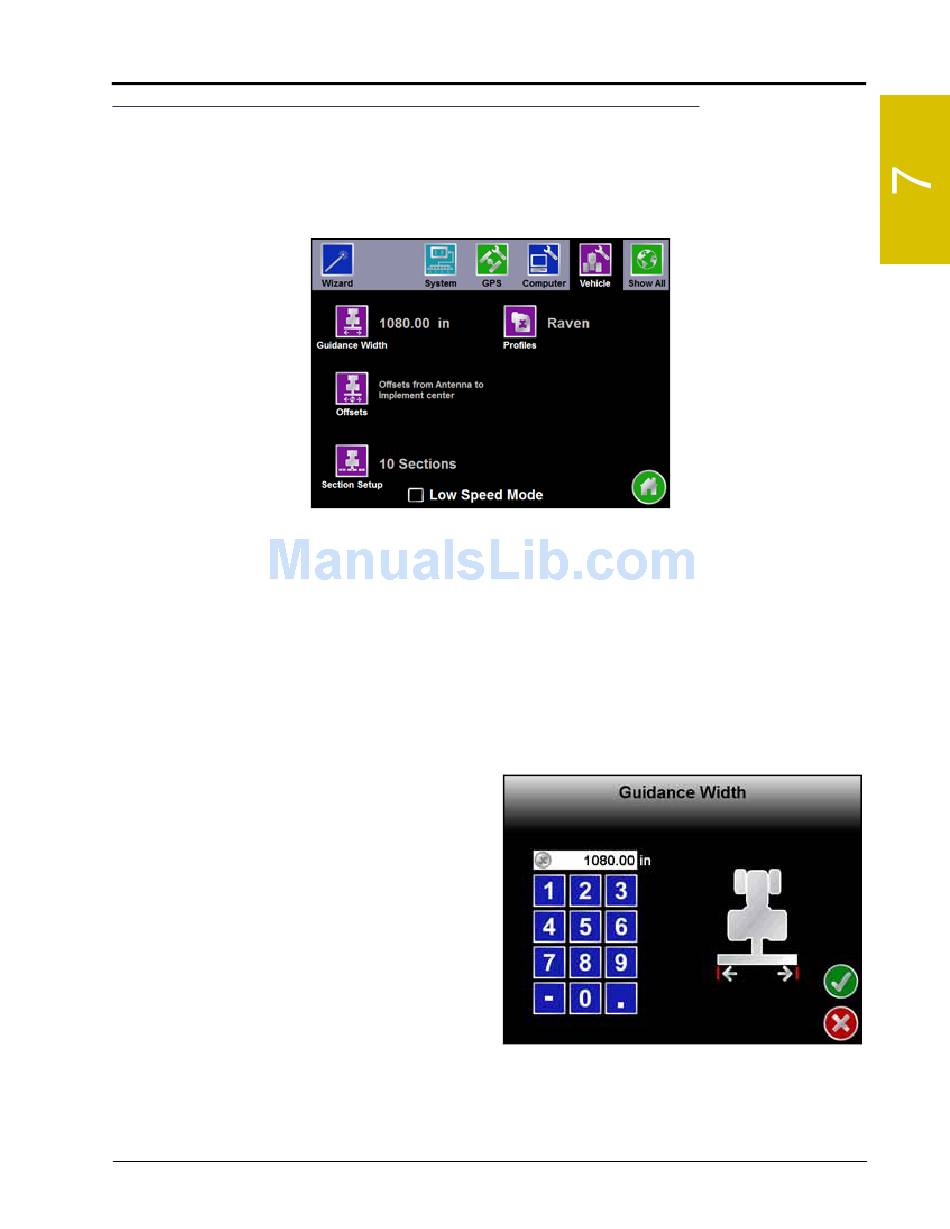

Use the on-screen keypad to enter the guidance width
in inches [centimeters] for the boom, implement, or
header.
The guidance width should be entered as the width of
the boom, implement or header which actually
completes an operation while the vehicle drives a
swath. A few examples of the guidance widths for
various implements would include the following:
•
Enter the guidance width for a sprayer boom as the
number of spray tips multiplied by the tip spacing.
The entered guidance width should not include
fence row nozzles or foam markers.
•
The guidance width of a combine header should be
the cutting surface, not the overall header width.
•
The guidance width for row crop planters is equal to the row spacing multiplied by the number of row units.
