CRX INSTALLATION GUIDE
This guide provides an overview of CR7 and CR12 field computers connections as well as drawings that illustrate
the cab connections for various machine configurations.

IMPORTANT SAFETY INFORMATION

This is a safety-alert symbol. When you see the symbol below on the device, be alert because there is the potential
for personal injury.
Follow the recommended precautions and safe operating practices.

CR7 CONNECTIONS

The image below shows the connections on the back of the CR7 that will be used for installation. Please note that,
depending on machine configuration, some of these connections may not be used.

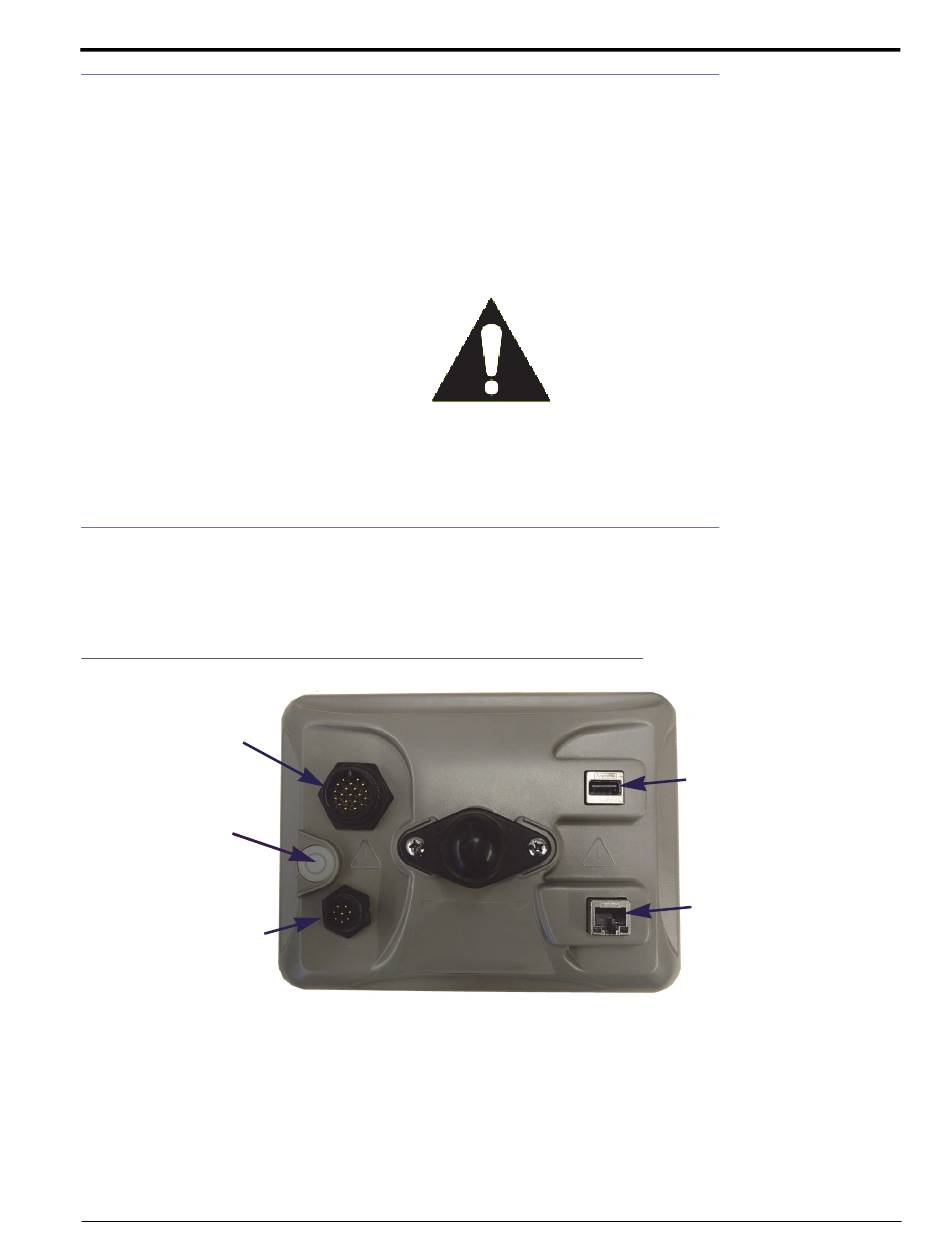

FIGURE 1. Back of CR7
I/O Cable
Power
Button
Power and
GPS
Connection

CR7 WIRING ILLUSTRATIONS

The illustrations on the next few pages show CR7 wiring diagrams for various cabling generations with optional
accessories and are for reference only.
Manual No. 016-0171-667 Rev. D ECO32077 09/18
USB Port
Ethernet
Port
