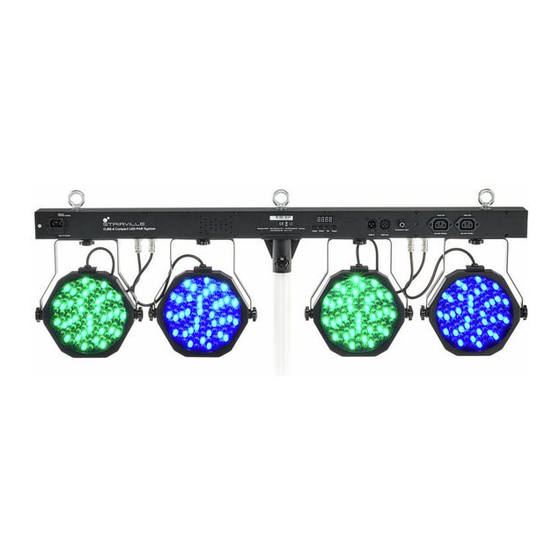

CLB2.4 Compact
LED PAR System
LED lighting set
user manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLB2.4 Compact and is the answer not in the manual?

Questions and answers

Related Manuals for Stairville CLB2.4 Compact

Summary of Contents for Stairville CLB2.4 Compact

  • Page 1 CLB2.4 Compact LED PAR System LED lighting set user manual...
  • Page 2 Musikhaus Thomann Treppendorf 30 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 29.01.2015, ID: 349574...

  • Page 3: Table Of Contents

    Connections and operating elements................... 21 Operating..............................24 7.1 Operating on the unit........................24 7.2 Menu overview..........................32 7.3 Foot switch functions........................33 7.4 Remote control functions......................33 7.5 Functions in DMX mode 1, 3-channel mode................34 CLB2.4 Compact LED PAR System...
  • Page 4 Table of contents 7.6 Functions in DMX mode 2, 4-channel mode................34 7.7 Functions in DMX mode 3, 8-channel mode................35 7.8 Functions in DMX mode 4, 14-channel mode............... 36 7.9 Functions in DMX mode 5, 2-channel mode................38 7.10 Functions in DMX mode 6, 7-channel mode............... 41 Technical specifications........................

  • Page 5: General Notes

    If you sell the unit please make sure that the buyer also receives this manual. Our products are subject to a process of continuous development. Thus, they are subject to change. CLB2.4 Compact LED PAR System...

  • Page 6: Further Information

    General notes 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly.

  • Page 7: Notational Conventions

    Texts and values displayed on the device are marked by quotation marks and italics. Examples: ‘24ch’ , ‘OFF’ . 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. CLB2.4 Compact LED PAR System...
  • Page 8 General notes Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in death or serious injury if it is not avoided.

  • Page 9: Safety Instructions

    Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and choke! Never let children unattended use electrical devices. CLB2.4 Compact LED PAR System...
  • Page 10 Safety instructions DANGER! Electric shock caused by high voltages inside Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. Do not use the device if covers, protectors or optical components are missing or damaged.
  • Page 11 NOTICE! Risk of fire Do not cover the device nor any ventilation slots. Do not place the device near any direct heat source. Keep the device away from naked flames. CLB2.4 Compact LED PAR System...
  • Page 12 Safety instructions NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker.

  • Page 13: Features

    Control via DMX (6 modes), buttons and display on the unit, IR remote control and foot switch (optional accessory) 14 preprogrammed automatic shows Sound control Stand-alone mode Master / Slave mode Thermal protection Carrying case included CLB2.4 Compact LED PAR System...

  • Page 14: Installation

    Installation Installation Unpack and carefully check that there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.
  • Page 15 Possible data transmission errors For error-free operation make use of dedicated DMX cables and do not use ordi‐ nary microphone cables. Never connect the DMX input or output to audio devices such as mixers or ampli‐ fiers. CLB2.4 Compact LED PAR System...
  • Page 16 Installation Pre-assembled spots The four spots are pre-assembled on the T bar. Attach the T Bar on a tripod and connect the footswitch unit (tripod and footswitch not included). LED lighting set...
  • Page 17 Locking screws to fix the height and inclination angle. Locking screw to fix the spots on the T bar and the horizontal alignment (beam direction). Electrical connection of the spots on the T bar (pre-assembled). CLB2.4 Compact LED PAR System...

  • Page 18: Starting Up

    Starting up Starting up Establish all connections as long as the unit is switched off. Use the shortest possible high- quality cables for all connections. LED lighting set...
  • Page 19 Such a chain may consist of up to 30 DMX devices. Make sure that the output of the last device in the chain is terminated by a resistor (110 Ω, ¼ W). CLB2.4 Compact LED PAR System...
  • Page 20 Starting up DMX indicator If the unit is in DMX mode and a DMX controller is connected and turned on, the ‘d’ is flashing in the first digit of the display. Connections in ‘Master / When you configure a group of devices in ‘Master / Slave’ mode, the first device controls the Slave‘...

  • Page 21: Connections And Operating Elements

    Connections and operating elements Connections and operating elements Front panel CLB2.4 Compact LED PAR System...
  • Page 22 Connections and operating elements 1 IEC chassis plug for power supply with fuse holder. 2 IEC chassis socket for the power supply cable to the next unit. 3 Display. 4 [Mode] Activates the main menu and toggles between menu items. Closes an opened submenu. 5 [Setup] Selects an option of the respective operating mode, confirms the set value.
  • Page 23 Connections and operating elements 9 [DMX Out] DMX output. 10 [Footswitch Input] 1/4" phone socket to connect the footswitch unit. CLB2.4 Compact LED PAR System...

  • Page 24: Operating

    Operating Operating Connect the device to the power supply to start operation. After a few seconds, the display indicates that a reset is in progress. The device is then ready for use. 7.1 Operating on the unit Press [Mode] to activate the main menu and select an operating mode. Use [Up] and [Down] to change the respectively indicated value.
  • Page 25 [Up] and [Down] to select a desired colour (see following table). After selection, press again [Mode]to set the flash frequency. With [Up] and [Down] you can now select a value between ‘FS.00’ (slow) and ‘FS.99’ (fast). Colour Display Cyan ‘9b’ Purple ‘rb’ Pink ‘rb’ Orange ‘r9’ White ‘rb’ CLB2.4 Compact LED PAR System...
  • Page 26 Operating Colour Display Light red ‘rb’ Light green ‘r9’ Light blue ‘rb’ Yellow ‘rb’ Warm white ‘1Y’ ‘–r’ Green ‘–9’ Blue ‘–b’ Amber ‘r9’ LED lighting set...
  • Page 27 Press [Mode] repeatedly until the display shows ‘Auto’ . Playback of preprogrammed shows Pr. 02 … Pr.14 starts automatically. Operating mode ‘Slave’ This setting is only relevant if the device is serving as Slave in a Master / Slave configuration and is not controlled via DMX. CLB2.4 Compact LED PAR System...
  • Page 28 Operating DMX address This setting is only relevant if the device is controlled via DMX. Press [Mode] repeatedly until the display shows ‘dxxx’ . Now you can set the number of the first DMX channel to be used by the device (DMX address). Use [Up] and [Down] to select a value between 1 and 512 (the display shows ‘d001’...
  • Page 29 Press [Mode] repeatedly until the display shows ‘dxxx’ . Press [Setup]. With [Up] and [Down] you can now select one of the following DMX modes: ‘2-ch’ (two channels) ‘3-ch’ (three channels) ‘4-ch’ (four channels) ‘7-ch’ (seven channels) ‘8-ch’ (eight channels) ‘14-ch’ (fourteen channels) CLB2.4 Compact LED PAR System...
  • Page 30 Operating Operating mode ‘Dimmer’ A constant colour can only be activated when the unit is operating in stand-alone mode or as master in a master / slave combination. This setting is only relevant if the device is not con‐ trolled via DMX. Press [Mode] repeatedly until the display shows ‘Colr’...
  • Page 31 Press [Mode] repeatedly until the display shows ‘Soud’ . This activates the sound controlled automatic show. Press [Setup] and use [Up] and [Down] to adjust the sensitivity for the sound control in a range from ‘SU.00’ to ‘SU.31’ . CLB2.4 Compact LED PAR System...

  • Page 32: Menu Overview

    Operating 7.2 Menu overview LED lighting set...

  • Page 33: Foot Switch Functions

    Operating 7.3 Foot switch functions Optional accessories, not included. Follow the instruction manual of the remote control. 7.4 Remote control functions Optional accessories, not included. Follow the instruction manual of the remote control. CLB2.4 Compact LED PAR System...

  • Page 34: Functions In Dmx Mode 1, 3-Channel Mode

    Operating 7.5 Functions in DMX mode 1, 3-channel mode Channel Value Function 0 … 255 Intensity red (0 % … 100 %) 0 … 255 Intensity green (0 % … 100 %) 0 … 255 Intensity blue (0 % … 100 %) 7.6 Functions in DMX mode 2, 4-channel mode Channel Value...

  • Page 35: Functions In Dmx Mode 3, 8-Channel Mode

    Intensity blue (0 % … 100 %), PAR 1 and 2 0 … 255 Intensity red (0 % … 100 %), PAR 3 and 4 0 … 255 Intensity green (0 % … 100 %), PAR 3 and 4 CLB2.4 Compact LED PAR System...

  • Page 36: Functions In Dmx Mode 4, 14-Channel Mode

    Operating Channel Value Function 0 … 255 Intensity blue (0 % … 100 %), PAR 3 and 4 0 … 255 Strobe effect, increasing speed 7.8 Functions in DMX mode 4, 14-channel mode Channel Value Function 0 … 255 Dimmer (0 % … 100 %) 0 …...
  • Page 37 Intensity red (0 % … 100 %), PAR 4 0 … 255 Intensity green (0 % … 100 %), PAR 4 0 … 255 Intensity blue (0 % … 100 %), PAR 4 0 … 255 Strobe effect, increasing speed CLB2.4 Compact LED PAR System...

  • Page 38: Functions In Dmx Mode 5, 2-Channel Mode

    Operating 7.9 Functions in DMX mode 5, 2-channel mode Channel Value Function 0 … 17 Preprogrammed automatic show no. 01 18 … 35 Preprogrammed automatic show no. 02 36 … 53 Preprogrammed automatic show no. 03 54 … 71 Preprogrammed automatic show no. 04 72 …...
  • Page 39 0 … 17 LEDs off 18 … 35 Cyan 36 … 53 Purple 54 … 71 Pink 72 … 89 Orange 90 … 107 White 108 … 125 Light red 126 … 143 Light green CLB2.4 Compact LED PAR System...
  • Page 40 Operating Channel Value Function 144 … 161 Light blue 162 … 179 Yellow 180 … 197 Warm white 198 … 215 216 … 233 Green 234 … 251 Blue 252 … 255 Amber Programme speed, if channel 1 = 18 … 251 (preprogrammed automatic show No.

  • Page 41: Functions In Dmx Mode 6, 7-Channel Mode

    Preprogrammed automatic show no. 02 36 … 53 Preprogrammed automatic show no. 03 54 … 71 Preprogrammed automatic show no. 04 72 … 89 Preprogrammed automatic show no. 05 90 … 107 Preprogrammed automatic show no. 06 CLB2.4 Compact LED PAR System...
  • Page 42 Operating Channel Value Function 108 … 125 Preprogrammed automatic show no. 07 126 … 143 Preprogrammed automatic show no. 08 144 … 161 Preprogrammed automatic show no. 09 162 … 179 Preprogrammed automatic show no. 10 180 … 197 Preprogrammed automatic show no. 11 198 …...

  • Page 43: Technical Specifications

    1364 Lux / 2 m Operating supply voltage AC 230 V , 50 Hz Power consumption 50 W Fuse 5 mm × 20 mm, 2,0 A, 250 V, slow-blow Diameter of tripod holder 36 mm CLB2.4 Compact LED PAR System...
  • Page 44 Technical specifications Dimensions T bar with assembled flat PARs 1007 mm × 305 mm × 63 mm (W × H × D) Dimensions T bar without assembled flat PARs 982 mm × 55 mm × 55 mm (W × H × D) Weight 5.6 kg LED lighting set...

  • Page 45: Plug And Connection Assignments

    The unit offers a 3-pin XLR socket for DMX output and a 3-pin XLR plug for DMX input. Please refer to the drawing and table below for the pin assignment of a suitable XLR plug. Configuration Ground, shielding Signal inverted (DMX–, ‘cold signal’) Signal (DMX+, ‘hot signal’) CLB2.4 Compact LED PAR System...

  • Page 46: Troubleshooting

    Troubleshooting Troubleshooting NOTICE! Possible data transmission errors For error-free operation make use of dedicated DMX cables and do not use ordi‐ nary microphone cables. Never connect the DMX input or output to audio devices such as mixers or ampli‐ fiers. In the following we list a few common problems that may occur during operation.
  • Page 47 DMX interface circuits. 2. Try using another DMX controller. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. CLB2.4 Compact LED PAR System...

  • Page 48: Cleaning

    Cleaning Cleaning Optical lenses Clean the optical lenses, that are accessible from the outside, regularly in order to optimize the light output. The frequency of cleaning depends on the operating environment: wet, smoky or particularly dirty surroundings can cause more accumulation of dirt on the optics of the device.

  • Page 49: Protecting The Environment

    Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. CLB2.4 Compact LED PAR System...
  • Page 50 Notes LED lighting set...
  • Page 52 Musikhaus Thomann e.K. · Treppendorf 30 · 96138 Burgebrach · Germany · www.thomann.de...
