Stairville CLB2.4 Compact LED PAR System User Manual

Led lighting set
Hide thumbs Also See for CLB2.4 Compact LED PAR System:
Table of Contents

Advertisement

Quick Links

Download this manual

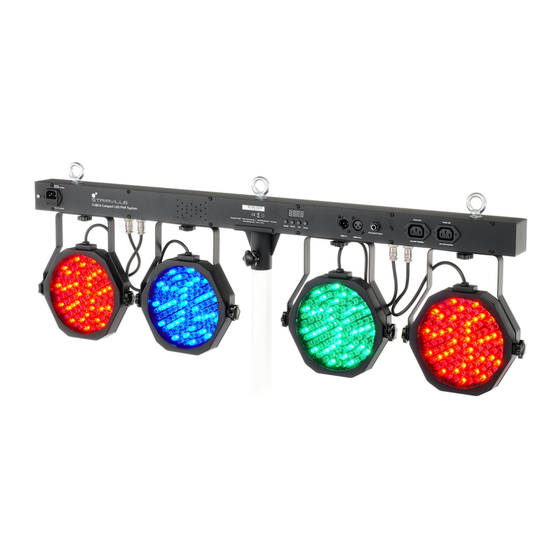

CLB2.4 Compact LED PAR System
LED Lighting Set

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLB2.4 Compact LED PAR System and is the answer not in the manual?

Questions and answers

Related Manuals for Stairville CLB2.4 Compact LED PAR System

Summary of Contents for Stairville CLB2.4 Compact LED PAR System

  • Page 1 CLB2.4 Compact LED PAR System LED Lighting Set...
  • Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 15.05.2024, ID: 349574 (V7)

  • Page 3: Table Of Contents

    7.5 Functions in 4-channel DMX mode................... 37 7.6 Functions in 7-channel DMX mode................... 37 7.7 Functions in 8-channel DMX mode................... 39 7.8 Functions in 14-channel DMX mode..................40 Technical specifications........................42 Plug and connection assignments....................45 CLB2.4 Compact LED PAR System LED Lighting Set...
  • Page 4 Table of contents Troubleshooting............................46 Cleaning............................... 48 Protecting the environment......................49 CLB2.4 Compact LED PAR System LED Lighting Set...
  • Page 5 CLB2.4 Compact LED PAR System LED Lighting Set...

  • Page 6: General Information

    1.1 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this document. CLB2.4 Compact LED PAR System LED Lighting Set...
  • Page 7 Warning signs Type of danger Warning – high-voltage. Warning – dangerous optical radiation. Warning – suspended load. CLB2.4 Compact LED PAR System LED Lighting Set...
  • Page 8 General information Warning signs Type of danger Warning – danger zone. CLB2.4 Compact LED PAR System LED Lighting Set...

  • Page 9: Safety Instructions

    Always dispose of packaging material properly when it is not in use. Never allow children to use the device without supervi‐ sion. Keep small parts away from children and make sure that the device does not shed any small parts (such knobs) that children could play with. CLB2.4 Compact LED PAR System LED Lighting Set...
  • Page 10 Never cover the device or the vents. Do not install the device in the immediate vicinity of other heat sources. Never operate the device in the immediate vicinity of naked flames. CLB2.4 Compact LED PAR System LED Lighting Set...
  • Page 11 Using fuses of a different type than compatible with the device may cause a fire and seriously damage the device. Only use fuses of the same type. Observe the labelling on the device casing and the information in the "Technical data” chapter. CLB2.4 Compact LED PAR System LED Lighting Set...
  • Page 12 Possible damage due to leaking batteries! Batteries can leak and cause permanent damage to the device. Take the batteries out of the device if it is not going to be used for an extended period of time. CLB2.4 Compact LED PAR System LED Lighting Set...

  • Page 13: Features

    For technological reasons, the light output of LEDs decreases over their lifetime. This effect increases with higher operating temperature. You can extend the service life of the illuminants by providing adequate ventilation and operating the LEDs with the lowest possible brightness. CLB2.4 Compact LED PAR System LED Lighting Set...

  • Page 14: Installation

    When installing and operating, make sure to follow the standards and regulations that apply in your country. Always secure the device with a secondary safety attachment, such as a safety cable or a safety chain. CLB2.4 Compact LED PAR System LED Lighting Set...
  • Page 15 Make sure that illuminated surfaces are more than 2 m away. Do not operate the device in ambient temperatures above 40 °C. Always ensure sufficient ventilation at the operating location. CLB2.4 Compact LED PAR System LED Lighting Set...
  • Page 16 If the DMX connections are wired incorrectly, this can cause errors during the data transfer. Do not connect the DMX input and output to audio devices, e.g. mixers or ampli‐ fiers. Use special DMX cables for the wiring instead of normal microphone cables. CLB2.4 Compact LED PAR System LED Lighting Set...
  • Page 17 Threads for attaching additional effects units or for hanging using the C-hooks. Locking screw for attachment of spots to the T bar and their horizontal alignment (beam direction). Electrical connection for the spots on the T bar (pre-assembled). Safety cable eyelet CLB2.4 Compact LED PAR System LED Lighting Set...
  • Page 18 Installation Please note that this device must not be connected to a dimmer. CLB2.4 Compact LED PAR System LED Lighting Set...
  • Page 19 Possible damage due to leaking batteries! Batteries can leak and cause permanent damage to the device. Take the batteries out of the device if it is not going to be used for an extended period of time. CLB2.4 Compact LED PAR System LED Lighting Set...

  • Page 20: Starting Up

    Such a chain may consist of up to 30 DMX devices. Make sure that the output of the last device in the chain is terminated by a resistor (110 Ω, ¼ W). CLB2.4 Compact LED PAR System LED Lighting Set...
  • Page 21 DMX input of the first slave unit. Then connect the DMX output of the first slave unit to the DMX input of the second slave unit and so on (maximum 30 slaves). CLB2.4 Compact LED PAR System LED Lighting Set...

  • Page 22: Connections And Controls

    [Down] | Decreases the displayed value by one. 3 [DMX In] | DMX input, designed as XLR panel plug, 3-pin 4 [DMX Out] | DMX output, designed as XLR panel socket, 3-pin CLB2.4 Compact LED PAR System LED Lighting Set...
  • Page 23 5 [Footswitch Input] | 6.35-mm jack socket for connecting a foot switch unit 6 Infrared sensor for the optional remote control 7 [Power Out] | Rubber panel socket for the power supply cable to the next device CLB2.4 Compact LED PAR System LED Lighting Set...
  • Page 24 10 [Dimming] | Activates the dimming function for fixed colours. Set the value for each fixed colour using [+] and [–]. 11 [R], [G], [B], [A], [W] | Buttons for selecting the colour shade in dimmer mode. CLB2.4 Compact LED PAR System LED Lighting Set...
  • Page 25 2 [Sound Active] | Activates “Sound control” mode (playback of sound-controlled automatic shows). 3 [Freeze] | Pauses the running show (“freeze”) and resumes it after a break. 4 [Blackout] | Blacks out all LEDs or turns them back on again. CLB2.4 Compact LED PAR System LED Lighting Set...

  • Page 26: Operation

    If you don't press any button for about 20 seconds, the current setting will be automatically applied and the display turns off. The set values are retained as long as the device is connected to the mains power supply. CLB2.4 Compact LED PAR System LED Lighting Set...
  • Page 27 [Mode] again to set the strobe frequency. You can now use [Up] and [Down] to select a value between ‘FS.00’ (slow) and ‘FS.99’ (fast). Colour Display Cyan ‘9b’ Purple ‘rb’ Pink ‘rb’ Orange ‘r9’ White ‘rb’ Light red ‘rb’ Light green ‘r9’ Light blue ‘rb’ CLB2.4 Compact LED PAR System LED Lighting Set...
  • Page 28 This setting is only relevant if the device is not con‐ trolled via DMX. Press [Mode] repeatedly until the display shows ‘Auto’ . Playback of pre-programmed shows Pr.02 … Pr.14 starts automatically. CLB2.4 Compact LED PAR System LED Lighting Set...
  • Page 29 Make sure that this number matches the configuration of your DMX controller. The following table shows the highest possible first DMX address for the various DMX modes. Mode Highest possible DMX address 2-channel 3-channel 4-channel 7-channel 8-channel 14-channel CLB2.4 Compact LED PAR System LED Lighting Set...
  • Page 30 Press [Mode] repeatedly until the display shows ‘dxxx’ . Press [Setup]. Now use [Up] and [Down] to select one of the following DMX modes: ‘2-ch’ (two channels) ‘3-ch’ (three channels) ‘4-ch’ (four channels) ‘7-ch’ (seven channels) ‘8-ch’ (eight channels) ‘14-ch’ (fourteen channels) CLB2.4 Compact LED PAR System LED Lighting Set...
  • Page 31 (display shows ‘r.xxx’ , ‘G.xxx’ or ‘b.xxx’ ). Press [Setup] to change the colour. Use [Up] and [Down] to adjust the intensity of the colour: Display Meaning ‘r.000’ … ‘r.255’ ‘g.000’ … ‘g.255’ Green ‘b.000’ … ‘b.255’ Blue CLB2.4 Compact LED PAR System LED Lighting Set...
  • Page 32 Press [Setup] and use [Up] and [Down] to adjust the sensitivity for the built-in microphone in a range from ‘SO.00’ (low sensitivity) to ‘SO.31’ (high sensitivity). Press [Setup] again and use [Up] and [Down] to select one of the programmed shows ‘SU.01’ to ‘SU.31’ . CLB2.4 Compact LED PAR System LED Lighting Set...

  • Page 33: Menu Overview

    Operation 7.2 Menu overview CLB2.4 Compact LED PAR System LED Lighting Set...

  • Page 34: Functions In 2-Channel Dmx Mode

    180 … 197 Pre-programmed automatic show no. 11 198 … 215 Pre-programmed automatic show no. 12 216 … 233 Pre-programmed automatic show no. 13 234 … 251 Pre-programmed automatic show no. 14 CLB2.4 Compact LED PAR System LED Lighting Set...
  • Page 35 Light red 126 … 143 Light green 144 … 161 Light blue 162 … 179 Yellow 180 … 197 Warm white 198 … 215 216 … 233 Green 234 … 251 Blue CLB2.4 Compact LED PAR System LED Lighting Set...

  • Page 36: Functions In 3-Channel Dmx Mode

    7.4 Functions in 3-channel DMX mode Channel Value Function 0 … 255 Red intensity (0% … 100%) 0 … 255 Green intensity (0% … 100%) 0 … 255 Blue intensity (0% … 100%) CLB2.4 Compact LED PAR System LED Lighting Set...

  • Page 37: Functions In 4-Channel Dmx Mode

    0 … 255 Green intensity (0% … 100%) 0 … 255 Blue intensity (0% … 100%) Pre-programmed automatic shows, if channel 2 … 4 = 0 0 … 17 Pre-programmed automatic show no. 01 CLB2.4 Compact LED PAR System LED Lighting Set...
  • Page 38 Pre-programmed automatic show no. 11 198 … 215 Pre-programmed automatic show no. 12 216 … 233 Pre-programmed automatic show no. 13 234 … 251 Pre-programmed automatic show no. 14 252 … 255 Sound control CLB2.4 Compact LED PAR System LED Lighting Set...

  • Page 39: Functions In 8-Channel Dmx Mode

    Red intensity (0% … 100%), PAR 3 and 4 0 … 255 Green intensity (0% … 100%), PAR 3 and 4 0 … 255 Blue intensity (0% … 100%), PAR 3 and 4 0 … 255 Strobe effect, increasing speed CLB2.4 Compact LED PAR System LED Lighting Set...

  • Page 40: Functions In 14-Channel Dmx Mode

    Green intensity (0% … 100%), PAR 3 0 … 255 Blue intensity (0% … 100%), PAR 3 0 … 255 Red intensity (0% … 100%), PAR 4 0 … 255 Green intensity (0% … 100%), PAR 4 CLB2.4 Compact LED PAR System LED Lighting Set...
  • Page 41 Operation Channel Value Function 0 … 255 Blue intensity (0% … 100%), PAR 4 0 … 255 Strobe effect, increasing speed CLB2.4 Compact LED PAR System LED Lighting Set...

  • Page 42: Technical Specifications

    1 × XLR panel plug, 3-pin Foot switch unit 1 × 6.35-mm jack socket Output connections Power supply for further devices 2 × rubber panel socket C13 Combined output current, max.: 6 A CLB2.4 Compact LED PAR System LED Lighting Set...
  • Page 43 Dimensions of T bar with mounted 1,007 mm × 305 mm × 63 mm flat PARs (W × H × D) Weight 5.6 kg Ambient conditions Temperature range 0 °C…40 °C Relative humidity 20%…80% (non-condensing) CLB2.4 Compact LED PAR System LED Lighting Set...
  • Page 44 Technical specifications Further information Spotlight included Effect devices included LED bars included Controller included Stand included Case/bag included CLB2.4 Compact LED PAR System LED Lighting Set...

  • Page 45: Plug And Connection Assignments

    The unit offers a 3-pin XLR socket for DMX output and a 3-pin XLR plug for DMX input. Please refer to the drawing and table below for the pin assignment of a suitable XLR plug. Configuration Ground, shielding Signal inverted (DMX–, ‘cold signal’) Signal (DMX+, ‘hot signal’) CLB2.4 Compact LED PAR System LED Lighting Set...
  • Page 46 Use special DMX cables for the wiring instead of normal microphone cables. In the following we list a few common problems that may occur during operation. We give you some suggestions for easy troubleshooting: CLB2.4 Compact LED PAR System LED Lighting Set...
  • Page 47 DMX interface circuit. 2. Try using another DMX controller. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. CLB2.4 Compact LED PAR System LED Lighting Set...
  • Page 48 Before cleaning, switch off the device and disconnect mains-operated devices from the mains. Only use pH-neutral, solvent-free and non-abrasive cleaning agents. Clean the unit with a slightly damp lint-free cloth. CLB2.4 Compact LED PAR System LED Lighting Set...
  • Page 49 Dispose the built-in lithium batteries together with the device. Check for an appropriate collection facility. Dispose of the batteries and rechargeable batteries at relevant collection points or through your local waste facility. CLB2.4 Compact LED PAR System LED Lighting Set...
  • Page 50 Also note that waste avoidance is a valuable contribution to environmental protection. Repairing a device or passing it on to another user is an ecologically valuable alternative to disposal. If your old device contains personal data, delete those data before disposing of it. CLB2.4 Compact LED PAR System LED Lighting Set...
  • Page 52 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
