1073 & 1084 Channel Amplifiers

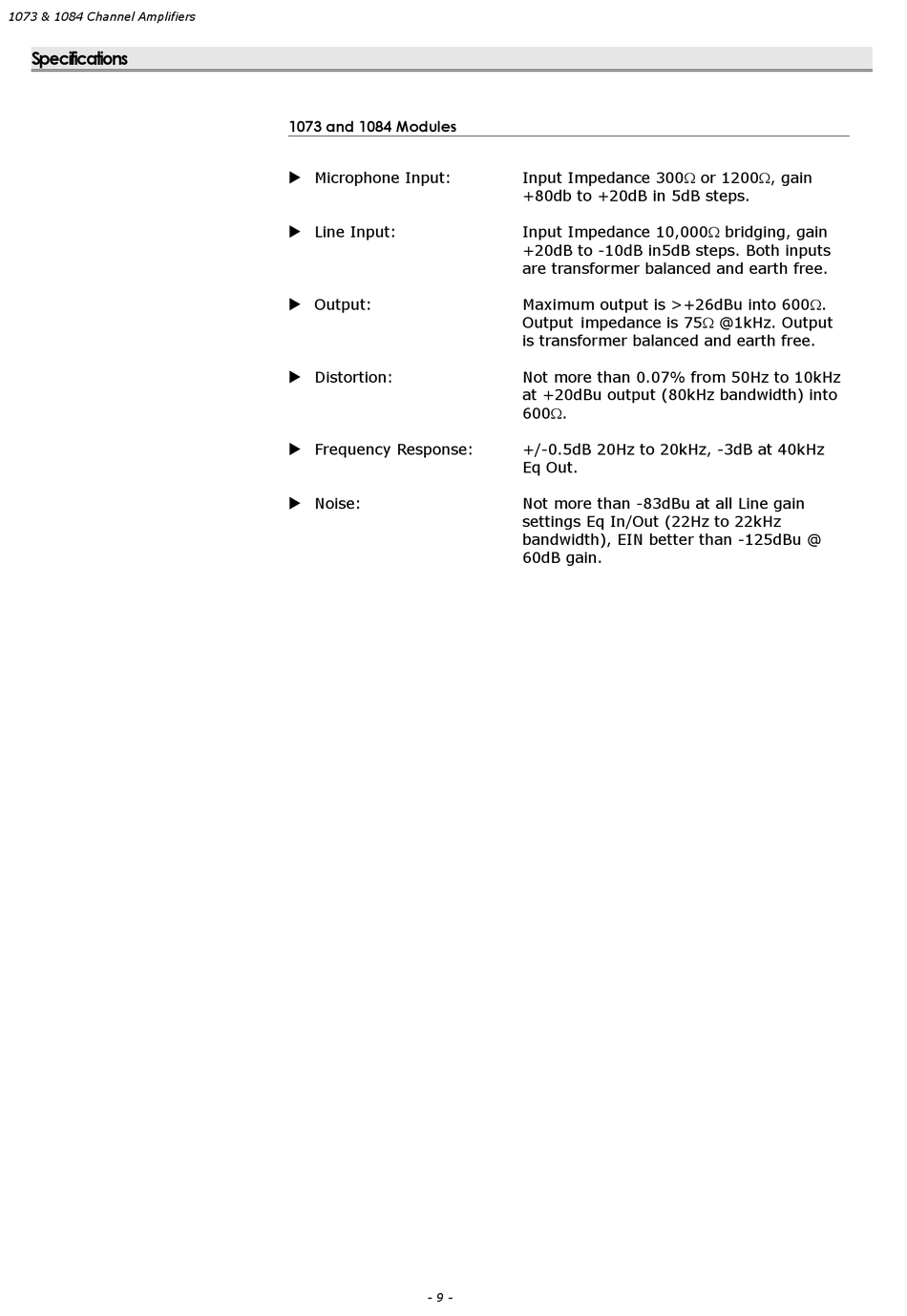

Specifications

1073 and 1084 Modules

u Microphone Input:
u Line Input:
u Output:
u Distortion:
u Frequency Response:
u Noise:
- 9 -
Input Impedance 300W or 1200W, gain
+80db to +20dB in 5dB steps.
Input Impedance 10,000W bridging, gain
+20dB to -10dB in5dB steps. Both inputs
are transformer balanced and earth free.
Maximum output is >+26dBu into 600W.
Output impedance is 75W @1kHz. Output
is transformer balanced and earth free.
Not more than 0.07% from 50Hz to 10kHz
at +20dBu output (80kHz bandwidth) into
600W.
+/-0.5dB 20Hz to 20kHz, -3dB at 40kHz
Eq Out.
Not more than -83dBu at all Line gain
settings Eq In/Out (22Hz to 22kHz
bandwidth), EIN better than -125dBu @
60dB gain.
