Summary of Contents for Neve 1073
-
Page 1: Table Of Contents
Ser vice In for ma tion Sche matic Draw ing In dex - 1073/1084 Racks Sche matic Draw ing In dex - 1073 Mod ule Sche matic Draw ing In dex - 1084 Mod ule User Guide Is sue 5.1... -
Page 2: In Tro Duc Tion
High Pass Fil ter (re sis tor mod i fi ca tion) Im por tant Note The high pass filter in both the 1073 & 1084 modules is a passive design and as such must be correctly terminated to achieve a maximally flat response. -
Page 3: Rack Mount Instructions
1073 & 1084 User Man ual AM5028 In stal la tion The 1073s and 1084s are available as stand-alone modules, or in a choice of two housings. The 3U rack houses two modules mounted horizontally in a 19” rack-mounting unit. -
Page 4: Di Men Sions
1073 & 1084 User Man ual Di men sions Mains Voltage Adjustment 1.) Switch off unit. Remove fuse. 3.) Turn inner barrel with screwdriver or coin until correct voltage figure is under the white arrow on the housing. 4.) Replace fuse. -
Page 5: Power Re Quire Ments
1073 & 1084 User Man ual Power Re quire ments Power Re quire ments Rack Units Rated Volt age 100- 230V AC 100- 230V AC Rated Fre quency 50- 60 Hz 50- 60Hz Rated Cur rent 0.5A Max 0.8A Max... -
Page 6: Phan Tom Power
Mod ules In Tran sit Please note that the designs of the AMS Neve classic modules and racks are to the original Neve specifications and are not designed to withstand transit. Should you wish to move the rack from one location to another (for example shipping to another... -
Page 7: Con Nec Tor De Tails
1073 & 1084 User Man ual Con nec tor De tails Con nec tor De tails Standalone 1073 & 1084 Module Wiring to 18 way Free Plug To Pin V Mic I/P -20dBu Line I/P 0dBu To Pin V Link... -
Page 8: Am Pli Fier Con Trols

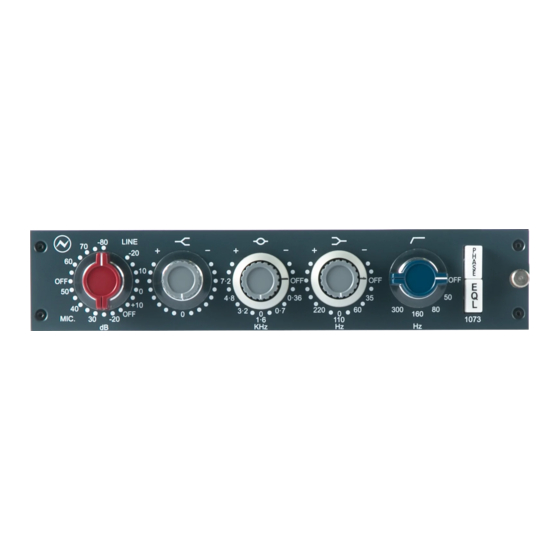

1073 & 1084 User Man ual Am pli fier Con trols Am pli fier Con trols 1073 Mod ule LINE High Frequency: Smooth +/-16dB fixed frequency shelving at 12kHz. Low Frequency: Smooth +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz. -
Page 9: 1084 Mod Ule
1073 & 1084 User Man ual Am pli fier Con trols 1084 Mod ule LINE High Frequency: Smooth +/-16dB shelving wit selectable frequencies of 10kHz, 12kHz and 16kHz. Low Frequency: Smooth +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz. -
Page 10: Spec I Fi Ca Tions
1073 & 1084 User Man ual Spec i fi ca tions Spec i fi ca tions 1073 and 1084 Mod ules Microphone Input: Input Impedance 300 or 1200 , gain +80db to +20dB in 5dB steps. Line Input: Input Impedance 10,000 bridging, gain +20dB to -10dB in 5dB steps. -
Page 11: Re Call Sheets
1073 & 1084 User Man ual Re call Sheets Re call Sheets 1073 - Vertical Mod ule LINE 0.36 PHASE User Guide Is sue 5.1 Page 10... -
Page 12: 1073 - Hor I Zon Tal Mod Ule
1073 & 1084 User Man ual Re call Sheets 1073 - Hor i zon tal Mod ule User Guide Is sue 5.1 Page 11... -
Page 13: 1084 - Ver Ti Cal Mod Ule
1073 & 1084 User Man ual Re call Sheets 1084 - Ver ti cal Mod ule LINE Hi-Q 0.35 PHASE User Guide Is sue 5.1 Page 12... -
Page 14: 1084 - Hor I Zon Tal Mod Ule
1073 & 1084 User Man ual Re call Sheets 1084 - Hor i zon tal Mod ule User Guide Is sue 5.1 Page 13... -
Page 15: Ser Vice In For Ma Tion
AM5028 Assembly Drawing AM5028 Wiring Diagram 5U Vertical Rack (AM5033) AM5033 Assembly Drawing AM5033 Wiring Diagram Sche matic Draw ing In dex - 1073 Mod ule 1073 Channel Amplifier (PL31073-C) E10006 Block Diagram EH10023 Circuit Diagram High Pass Filter (PL10182/C) -
Page 16: Sche Matic Draw Ing In Dex - 1084 Mod Ule
1073 & 1084 Chan nel Am pli fiers Ser vice In for ma tion Sche matic Draw ing In dex - 1084 Mod ule 1084 Channel Amplifier (PL31084-C) EB20039 Block Diagram EH10036 Circuit Diagram High Pass Filter (PL10182/A) PL10182/A Assembly Drawing...
