Neve Portico 5032 User Manual

Mic pre/eq
Hide thumbs
Table of Contents

Advertisement

Quick Links

Rev. A Copyright 2005

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Portico 5032 and is the answer not in the manual?

Questions and answers

Related Manuals for Neve Portico 5032

Summary of Contents for Neve Portico 5032

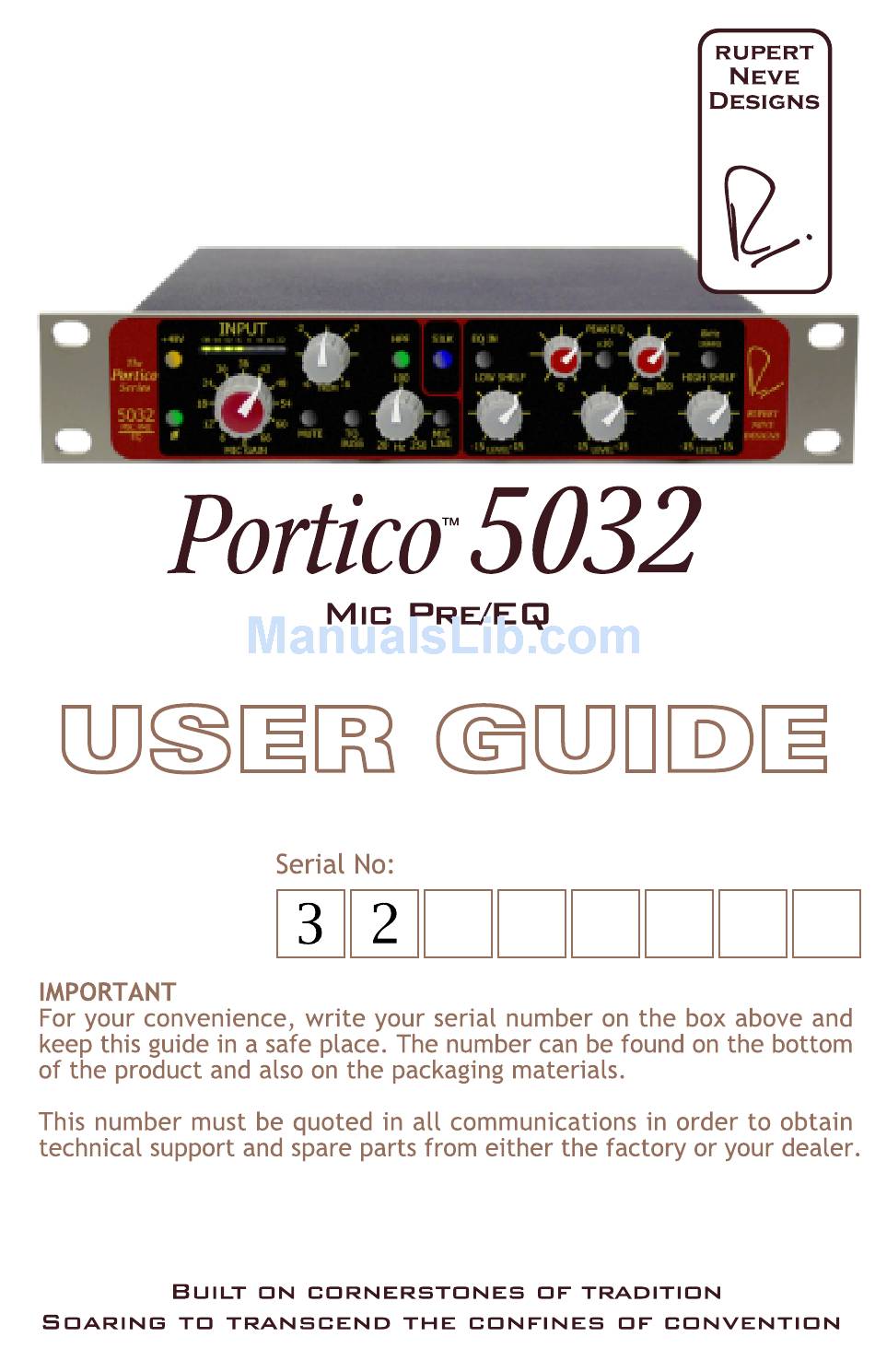

  • Page 1 Rev. A Copyright 2005...
  • Page 2 Thank you for your purchase of the Portico™ 5032 Microphone Pre-amplifier and Equalizer module. Everyone at Rupert Neve Designs hope you enjoy using this tool as much as we have enjoyed designing and building it. Please take note of the following list of safety concerns and power requirements before the use of this or any Portico™...
  • Page 3 Referenced to the output PEAK EQ EQ IN -18 -12 SILK Portico Series TRIM INPUT SELECT 5032 RUPERT HIGH NEVE MIC PRE SHELF SHELF MUTE LINE DESIGNS BUSS MIC GAIN High Pass Filter Phase Invert Fully variable from Swings phase...

  • Page 4: Microphone Input

    5032 MIC PRE/EQUALIZER The Rupert Neve Designs Portico™ 5032 MICROPHONE PRE-AMPLIFIER AND EQUALIZER MODULE The Rupert Neve Designs 5032 PEAK EQ module is a half rack width, 1.75” -18 -12 SILK EQ IN (1U) module in the now well-known Portico...
  • Page 5 When multiple Portico™ modules are configured in a console assembly, mixing busses will be available at many points (beyond the ones traditionally expected), providing enormous flexibility. More detailed descriptions with suggested block and system diagrams will be available in the future on the Rupert Neve Designs website at www.rupertneve.com.

  • Page 6: Design Notes

    5032 MIC PRE/EQUALIZER DESIGN NOTES In former years, before the introduction of solid state amplifiers, transformers were necessary to step up to the very high input impedance of tubes, and to provide a balanced input for the microphone line. An input impedance of 1,000 or 1,200 ohms became established for microphones having a source impedance of 150 or 200 ohms.

  • Page 7: Signal Routing

    5032 MIC PRE/EQUALIZER SIGNAL ROUTING Separate MIC and LINE inputs are available on the 5032 rear panel. Connections can be made to both inputs simultaneously and the desired source signal is selected using the INPUT SELECT button on the 5032 front panel. 1.When the INPUT SELECT push button is UP, (i.e.

  • Page 8: Line Input

    Signals within this band can be attenuated, leaving higher frequencies unaffected. Helps get rid of building rumble, air handling motor hum etc. RUPERT NEVE DESIGNS 5032 HPF min, mid, max LINE INPUT The line input is a 10,000 ohms (bridging) floating and balanced transformer design that provides uncompromising isolation and protection against ground currents and other unwanted interference.
  • Page 9 15 dB and a true “Flat” response at the center of the control track. Frequencies chosen for these “turnover” points are the result of critical listening and follow traditional equalizer patterns. RUPERT NEVE DESIGNS 5032 - 160 Hz Low Shelf min and max...
  • Page 10 5032 MIC PRE/EQUALIZER RUPERT NEVE DESIGNS 8kHz position 5032 Hi shelf, min, max at both frequencies 16kHz position These sections each provide EQ curves that approximate to 6 dB/Octave with a boost or cut of up to 15 dB and a true “Flat” response at the center of the control track. Frequencies chosen for these...
  • Page 11 A “x10” button multiplies the frequency of the base band by x10 (i.e. it provides continuity from 800 Hz to 8.0 kHz). RUPERT NEVE DESIGNS 5032 Mid EQ: 80Hz- 8kHz range, min, mid, max Q's...
  • Page 12 SPECIFICATIONS Frequency Response: Main Output, no load, –0.2 dB @ 10 Hz –3 dB @ 160 kHz Noise: Measured at Main Output, unweighted, 22Hz-22kHz, Terminated 150 Ohms. With gain at unity better than –100 dBu With gain at 66 dB better than –62 dBu Equivalent Input Noise better than –128 dBu...
  • Page 13 BLOCK DIAGRAM...
