Summary of Contents for Neve 1073

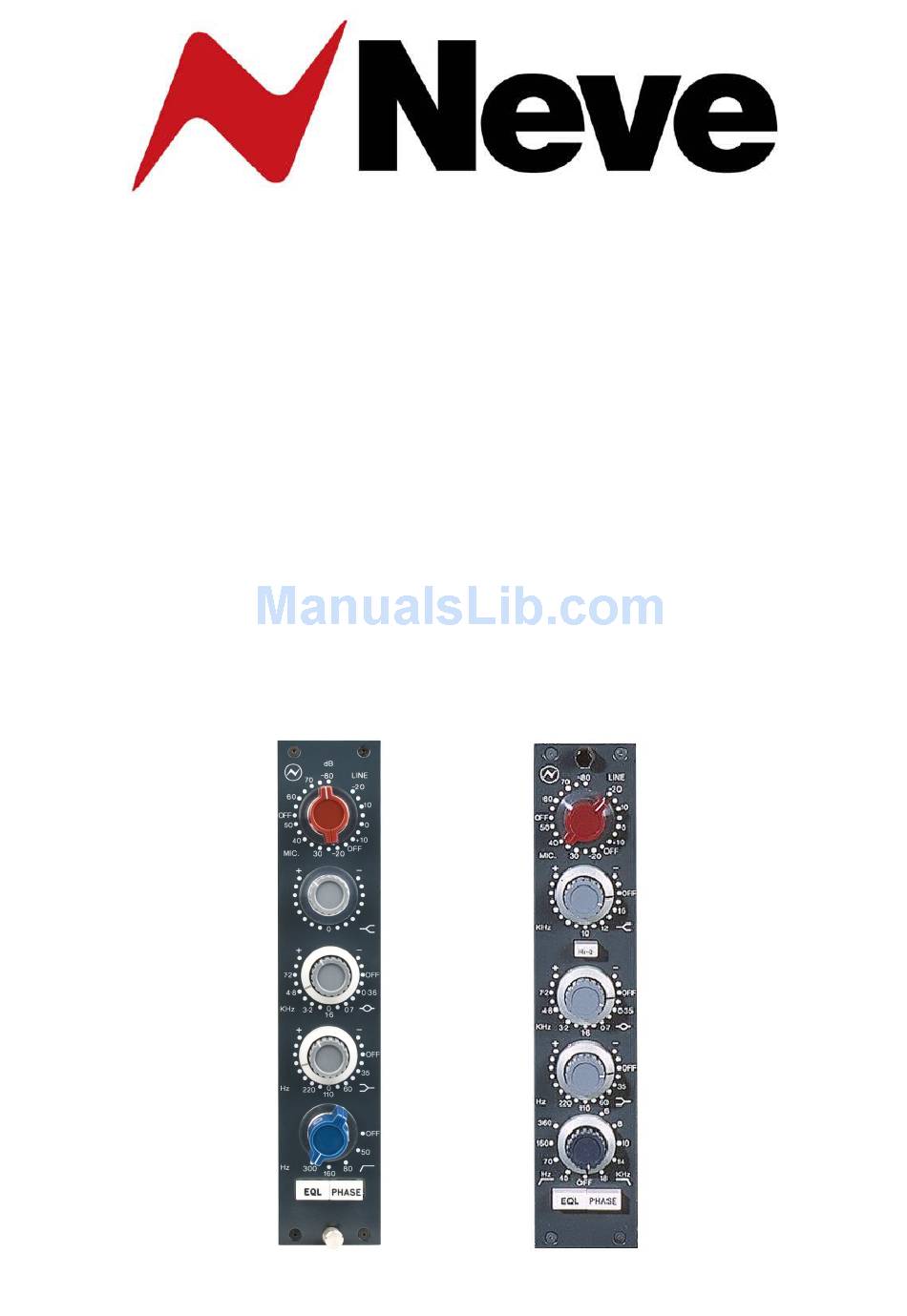

- Page 1 1073 & 1084 Channel Amplifiers User Guide Issue 5.2...
-
Page 2: Table Of Contents
1073 & 1084 Channel Amplifiers Table of Contents Introduction..................................3 1073 Channel Amplifiers...........................3 1084 Channel Amplifiers...........................3 High Pass Filter (resistor modification)....................3 Installation............................... 4 Additional Information..........................4 Rack Mount Instructions...........................4 Mains Voltage Adjustment ........................4 Dimensions............................... 5 Power Requirements..........................5 Mains Supply (rack units)......................... 6 DC Power Supply Indicators (rack units)......................6... -
Page 3: Introduction
High Pass Filter (resistor modification) Important Note The high pass filter in both the 1073 & 1084 modules is a passive design and as such must be correctly terminated to achieve a maximally flat response. -
Page 4: Installation
1073 & 1084 Channel Amplifiers Installation The 1073s and 1084s are available as stand-alone modules, or in a choice of two housings. The 3U rack houses two modules mounted horizontally in a 19" rack- mounting unit. The 5U rack houses eight modules mounted vertically in a 19" rack- mounting unit. -
Page 5: Dimensions
1073 & 1084 Channel Amplifiers Dimensions Stand-alone Width Height Depth Approx. Weight Modules mm (inches) mm (inches) mm (inches) kg (lbs) 1073 Module 45 (1.8) 222 (8.75) 254 (10) 2.5 (5.5) 1084 module 45 (1.8) 222 (8.75) 254 (10) 2.5 (5.5) 19”... -
Page 6: Mains Supply (Rack Units)
When the Output Control is fully clockwise the output gain is unity. The output is 20dB down with the control in the mid-position. Modules In Transit Please note that the designs of the AMS Neve classic modules and racks are to the original Neve specifications and are not designed to withstand transit. -
Page 7: Connector Details
1073 & 1084 Channel Amplifiers Connector Details Standalone 1073 & 1084 Module Wiring to 18 way Free Plug - 7 -... -
Page 8: Amplifier Controls
1073 & 1084 Channel Amplifiers Amplifier Controls 1073 Module u High Frequency: Smooth +/-16dB fixed frequency shelving at 12kHz. u Low Frequency: Smooth +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz. u Mid Frequency: Smooth +/-18dB peaking, fixed 'Q' with, selectable centre frequencies of 0.36kHz,... -
Page 9: Specifications
1073 & 1084 Channel Amplifiers Specifications 1073 and 1084 Modules u Microphone Input: Input Impedance 300W or 1200W, gain +80db to +20dB in 5dB steps. u Line Input: Input Impedance 10,000W bridging, gain +20dB to -10dB in5dB steps. Both inputs are transformer balanced and earth free. -
Page 10: Recall Sheets 1073 -Vertical Module
1073 & 1084 Channel Amplifiers Recall Sheets 1073 -Vertical Module - 10 -... -
Page 11: 1073 - Horizontal Module
1073 & 1084 Channel Amplifiers 1073 - Horizontal Module - 11 -... -
Page 12: 1084 - Vertical Module
1073 & 1084 Channel Amplifiers 1084 - Vertical Module - 12 -... -
Page 13: 1084 - Horizontal Module
1073 & 1084 Channel Amplifiers 1084 - Horizontal Module - 13 -...
