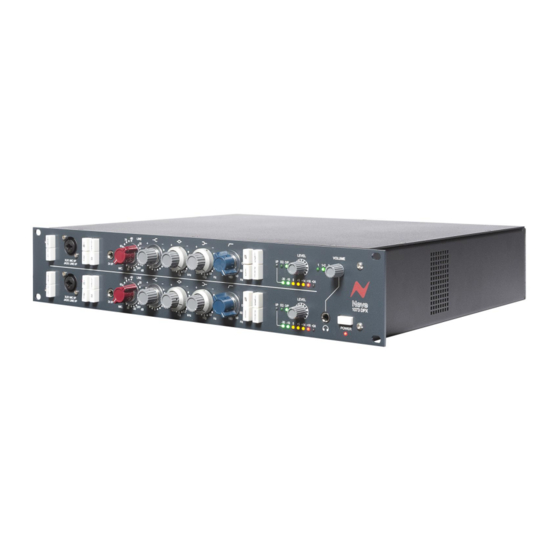

Neve 1073DPX User Manual

Dual microphone preamplifier & eq
Hide thumbs

Advertisement

Table of Contents

1073DPX
Dual Microphone Preamplifier & EQ
User Manual
527-406
Issue 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1073DPX and is the answer not in the manual?

Questions and answers

Related Manuals for Neve 1073DPX

Summary of Contents for Neve 1073DPX

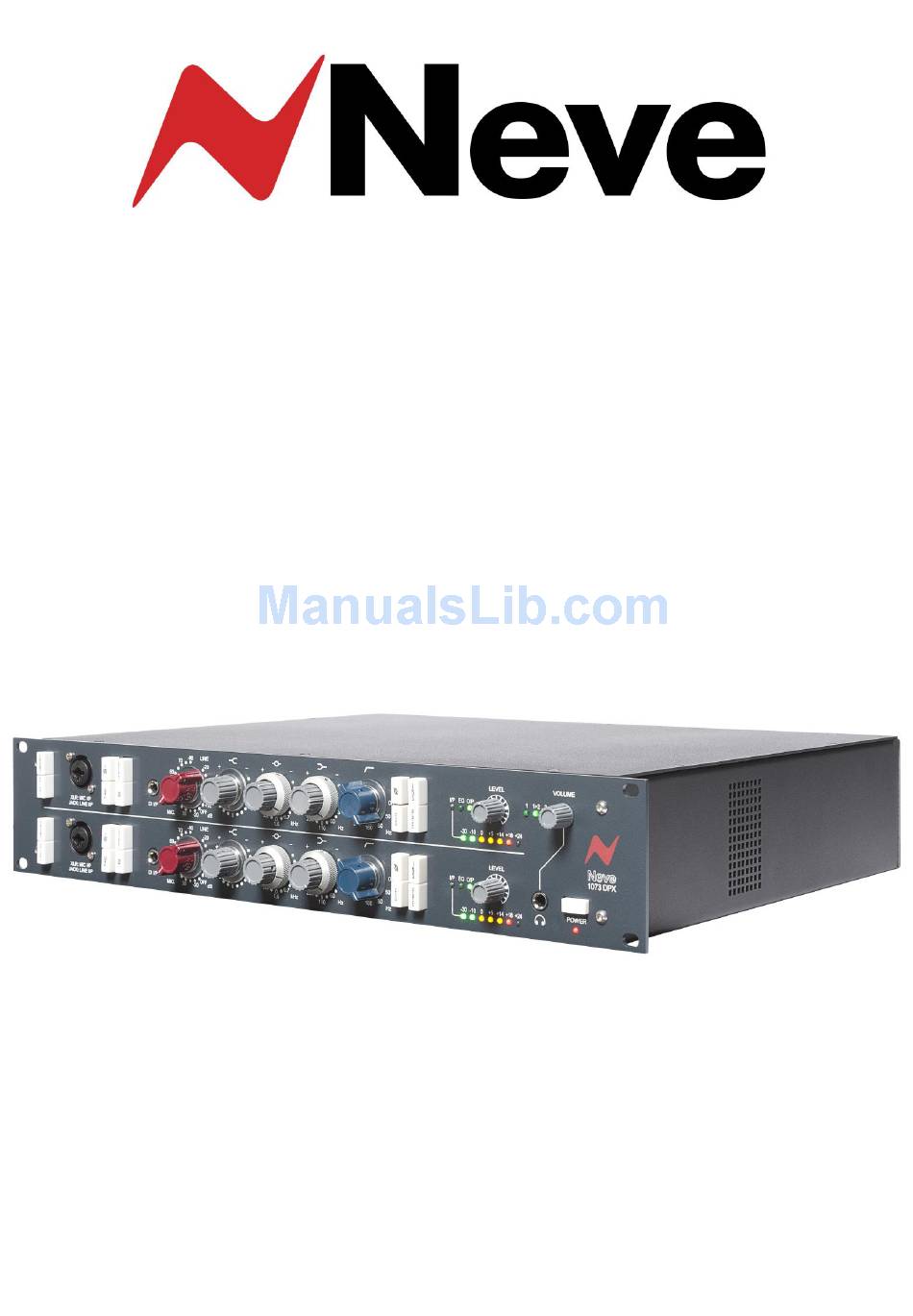

  • Page 1 1073DPX Dual Microphone Preamplifier & EQ User Manual 527-406 Issue 1.0...

  • Page 2: Important Safety Instructions

    © 2015 AMS Neve Ltd own the copyright of all information and drawings contained in this manual which are not to be copied or reproduced by any means or disclosed in part or whole to any third party without written permission.

  • Page 3: Table Of Contents

    1073DPX Channel Amplifier Introduction ..................... 4 Configuring the 1073DPX ........................4 Front Panel ............................5 Rear Panel ............................7 Rack Mount Instructions ........................7 Troubleshooting ........................... 8 Dimensions ............................9 Specifications ............................9...

  • Page 4: Dpx Channel Amplifier Introduction

    EQ with one fixed high frequency and a high-pass filter. The 1073DPX accommodates two separate 1073s in a stand-alone 2U rack- mount unit. At its core, the 1073DPX retains the same basic circuitry as the original 1073, but includes many additional features to ensure the unit sits comfortably in the modern studio environment.

  • Page 5: Front Panel

    Front Panel POWER: Switches the unit on or off. The adjacent LED lights when the unit is ON FRONT: Switches the audio input to the front mic/line combo connector. NOTE: The DI input always overrides the Mic input, whether the FRONT switch is pressed or not.
  • Page 6 High Pass Filter: 18dB per octave slope, switchable between 50Hz, 80Hz, 160Hz, 300Hz. Phase: Reverses the phase of the output signal. In the default position, absolute phase is preserved through the unit. Switches the equalisation circuit into the signal path. INS: Switches the insert loop into the signal path.

  • Page 7: Rear Panel

    Rear Panel +48V DC: Connect the accompanying power supply (PS10501) to power the unit. Fuse: Always use the correct fuse rating, as indicated beside the fuse holder. Fuse Rating: T1A, 250v 20mm, Ø 5mm. MIC I/P: Balanced microphone input. LINE I/P: Balanced line input.

  • Page 8: Troubleshooting

    Troubleshooting No audio at the line output  Check all connections to the unit. For example, check that all necessary inputs and outputs are plugged into the same channel. Check the setting of the LEVEL control. Turn clockwise to increase the output level Check the setting of the gain control.

  • Page 9: Dimensions

    Dimensions Stand-alone Width Height Depth Approx. Weight Modules mm (inches) mm (inches) mm (inches) kg (lbs) 1073DPX Module 480 (19) 88 (3.5) 356 (14) 10 (22) Modules Power 1073DPX Module , 480mA ±20mA excluding digital module. Negative Earth Specifications ...
