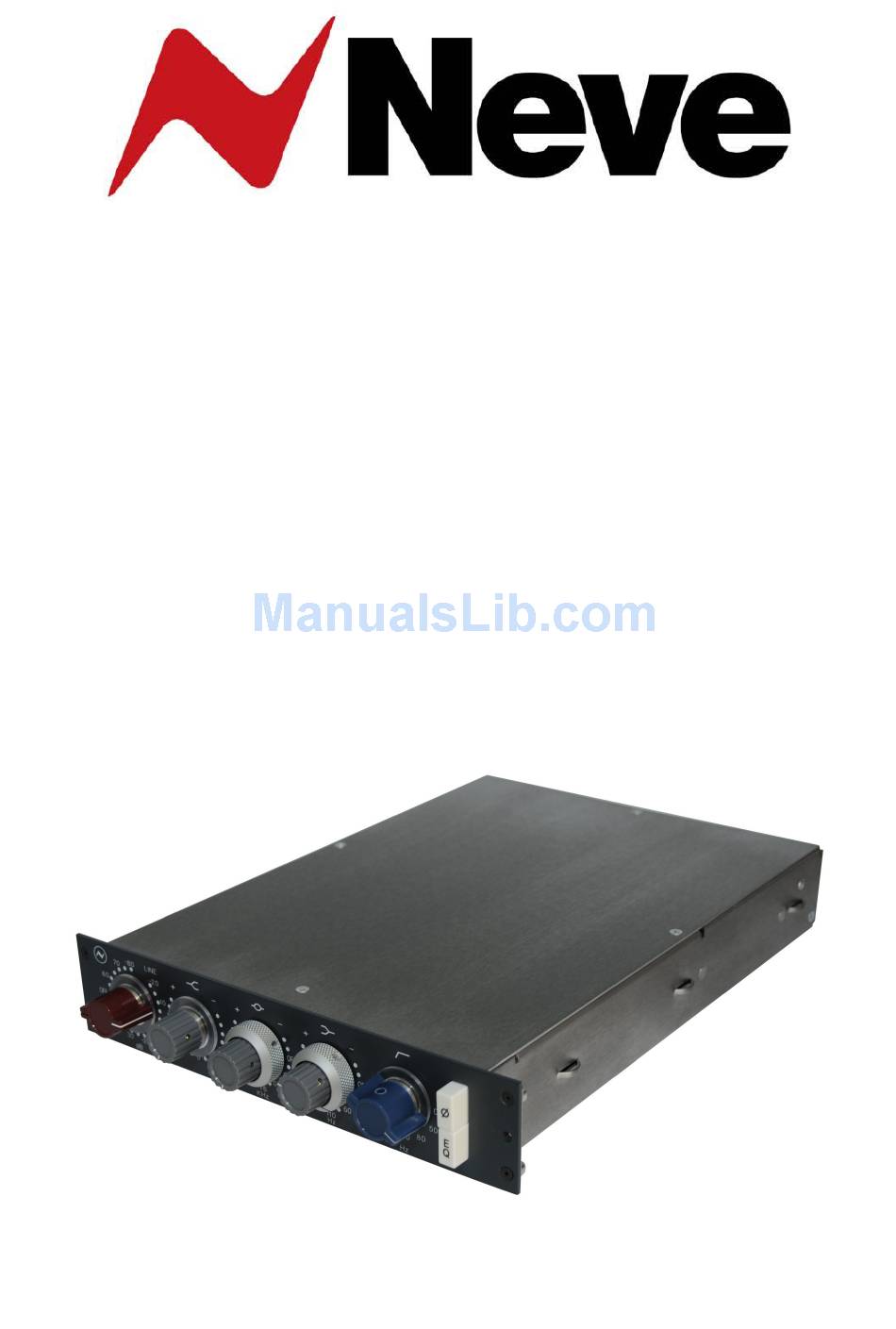

- Page 1 1073N Channel Amplifier User Manual 527-404 Issue 1.4...
-
Page 2: Health & Safety Notice
© 2016 AMS Neve Ltd own the copyright of all information and drawings contained in this manual which are not to be copied or reproduced by any means or disclosed in part or whole to any third party without written permission. -
Page 3: Table Of Contents
Output Level Control..........................5 Mains Voltage Adjustment ........................5 Configuring the 1073N for Neve rack or Original BCM10................6 Configuring the 1073N for Neve 45 series consoles including the new 2016 BCM10........6 (Rear Panel Controls & Connectors) Quick Configuration Guide..............6 Rear Panel Description..........................7 Rack Mount Instructions........................... -
Page 4: 1073N Channel Amplifier Introduction
The 1073N retains the same basic circuitry as the original 1073 while utilizing modern manufacturing techniques to make it more affordable While the 1073N can be used in any situation that the 1073 classic module can be used, it features additional connectivity which allows it to be used as a stand-alone module. -
Page 5: Dc Power Supply Indicators (Rack Units)
1073N Channel Amplifier Issue 1.4 DC Power Supply Indicators (rack units) u The red LED on the front panel of both 3U and 5U rack units indicates +24V power healthy when illuminated. u The green LED on the front panel of both 3U and 5U rack units indicates +48V power healthy when illuminated. -
Page 6: Configuring The 1073N For Neve Rack Or Original Bcm10
Issue 1.4 Configuring the 1073N for Neve rack or Original BCM10 When the 1073N is used in a Neve 3U or 5U rack or an original BCM10 console the rear panel input and output connections, power switch, fuse and phantom power controls are not used. The following configuration should be used for the remaining controls: u Set ‘EXT LVL CTRL’... -
Page 7: Rear Panel Description
It has no function when used in a rack or console. +48V connection: Connect the supplied power supply (PS10500) to power the 1073N in stand-alone mode. It has no function when used in a rack or console. Fuse: The fuse is for stand-alone operation of the 1073N. It has no function when used in a rack or console. -
Page 8: Rack Mount Instructions
(mic mode) if you’re using the XLR part of the combo connector or DI jack input. Turn it anti-clockwise (line mode) if you’re using the jack part of the combo connector. If you’re using the 1073N in stand-alone mode check that EXT LVL CTRL is set to NO. - 8 -... -
Page 9: Dimensions
1073N Channel Amplifier Issue 1.4 Dimensions Stand-alone Width Height Depth Approx. Weight Modules mm (inches) mm (inches) mm (inches) kg (lbs) 1073N Module 45 (1.8) 222 (8.75) 254 (10) 2.5 (5.5) 19” Rack Mounting Depth Height Approx. Weight mm (inches) -
Page 10: Modules In Transit
1073N Channel Amplifier Issue 1.4 Modules In Transit Please note that the designs of the AMS Neve classic modules and racks are to the original Neve specifications and are not designed to withstand transit. u Should you wish to move the rack from one location to another (for... -
Page 11: Amphenol Back Connector Details
1073N Channel Amplifier Issue 1.4 Amphenol Back Connector Details Standalone 1073N Module Wiring to 18 way Free Plug - 11 -... -
Page 12: 1073N Module
1073N Channel Amplifier Issue 1.4 1073N Module u High Frequency: Smooth +/-16dB fixed frequency shelving at 12kHz. u Mid Frequency: Smooth +/-18dB peaking, fixed 'Q' with selectable centre frequencies of 0.36kHz, 0.7kHz, 1.6kHz, 3.2kHz, 4.8kHz & 7.2kHz. u Low Frequency: Smooth +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz &... -
Page 13: Recall Sheet -1073N Vertical Module
1073N Channel Amplifier Issue 1.4 Recall Sheet -1073N Vertical Module - 13 -... -
Page 14: Recall Sheet -1073N Horizontal Module
1073N Channel Amplifier Issue 1.4 Recall Sheet -1073N Horizontal Module - 14 -...
