Summary of Contents for Neve 1073 OPX

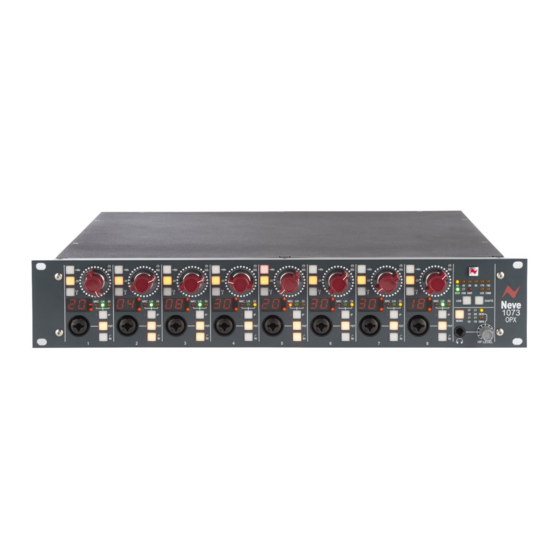

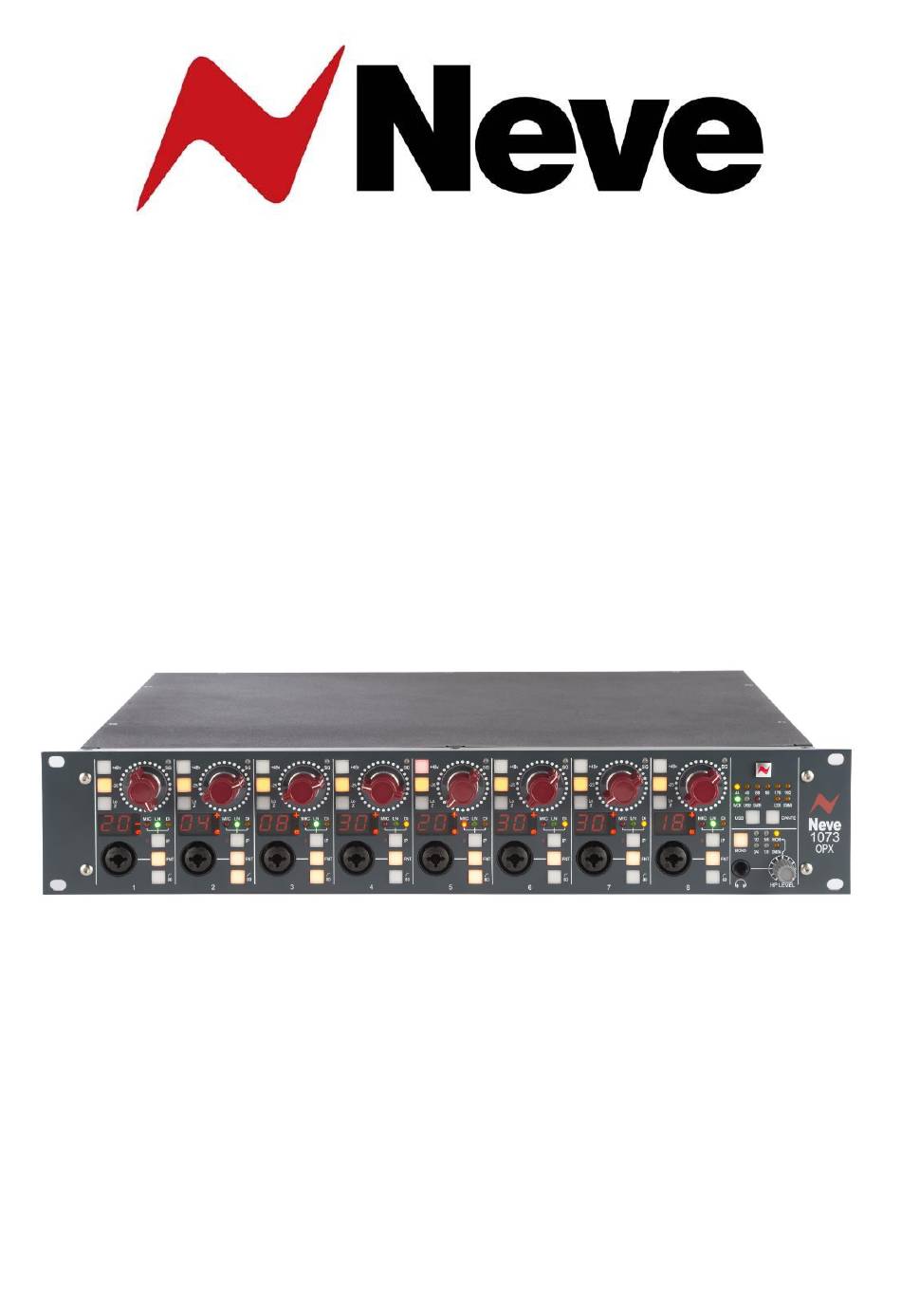

- Page 1 1073 OPX ® 8 channel Microphone, Line and Instrument Preamplifier Installation Guide Issue 1...
-
Page 2: Table Of Contents
© ® 2005 - 2020 AMS Neve Ltd own the copyright of all information and figures contained in this manual which are not to be copied or reproduced by any means or disclosed in part or whole to any third party without written permission. As part of our policy of continual product improvement, we reserve the right to alter specifications without notice but with due regard to all current legislation. -
Page 3: Health & Safety Notice
Health & Safety Notice FOR YOUR OWN SAFETY AND FOR THE PROTECTION OF OTHERS PLEASE OBSERVE THE FOLLOWING HEALTH AND SAFETY INSTRUCTIONS READ THESE INSTRUCTIONS AND KEEP THEM HANDY • HEED ALL SAFETY WARNINGS • DO NOT USE NEAR WATER •... -
Page 4: Important Safety Instructions U.s
Important Safety Instructions Read these instructions Keep these instructions Heed all warnings Follow all instructions Do not use this apparatus near water Clean only with a dry cloth Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. ... - Page 5 EXTERNAL PSU MAINS SOCKET OUTLET WITH A PROTECTIVE EARTHING CONNECTION. WARNING: WHERE THE MAINS PLUG OR AN APPLIANCE COUPLER IS USED AS THE DISCONNECT DEVICE, THE DISCONNECT DEVICE SHALL REMAIN READILY OPERABLE. For full operational instructions, please refer to the 1073 OPX User Manual.
-
Page 6: Warning Symbols
Warning Symbols Please refer to the manual before operating Danger of electric shock Disconnect from the MAINS before opening cover No user serviceable parts inside Environmental considerations Temperature Operating 5°C to 30°C (41°F to 86°F) Non-operating -20°C to 50°C (-2°F to 122°F) Max Gradient 15°C/Hour (59°F/Hour) -
Page 7: Important Safety Instructions Uk
Important Safety Instructions READ THESE INSTRUCTIONS AND KEEP THEM HANDY HEED ALL SAFETY WARNINGS THE UNIT MUST BE EARTHED WHEN OPERATED DO NOT USE NEAR WATER CLEAN ONLY WITH A DRY CLOTH DO NOT INSTALL NEAR HEAT SOURCES ... -
Page 8: Important Power Notice
IMPORTANT POWER NOTICE THE UNIT POWER SUPPLY IS SUPPLIED WITH A 3-CORE AC POWER CABLE APPLICABLE TO THE REGION IT IS TO BE OPERATED IN, AND MUST BE CONNECTED TO A 3-PIN EARTHED SUPPLY. IF A REPLACEMENT CABLE IS USED, THEN THE EARTH FROM THE MAINS SOCKET OR TECHNICAL EARTH TO THE CONSOLE MUST BE MAINTAINED. -
Page 9: Dimensions& Power Requirements
Dimensions& Power Requirements Unit Physical / Technical Information Height 89mm/3.5 inches 484mm/19.05 inches Width Depth 360mm/14.17 inches Weight 7.8Kg Heat Dissipation 40 Watts Power factor >0.90 Voltage Input Voltage Range 90-240V AC Only Current 0.135A Amps RMS 240V Current 0.330A Amps RMS 90V Switch-On surge Current... -
Page 10: Front & Back Panels
Front & Back Panels 1073 OPX Front Plate 1073 OPX Rear Plate... -
Page 11: Fitting The Optional Digital Card
Fitting the Optional Digital Card... -
Page 12: Unit Connection Table
Unit Connection Tables External PSU Mains, fused @ 4 amps IEC male Preamp Microphone Inputs (Front) XLR 3-pin plug female Preamp Microphone Inputs (Rear) 25-way D-Type, Tascam convention Preamp Line Inputs (Front) ¼" TRS Jack sockets Preamp Line Inputs (Rear) 25-way D-Type, Tascam convention Preamp D.I inputs ¼"... -
Page 13: 25-Way D-Type Pin Outs
Unit 25-Way D-Type Pin Outs Preamp Mic Input 1-8 D-Type 25-Way Pin Outs (25-way D-type) Signal Name Screen Microphone Input 1 Microphone Input2 Microphone Input3 Microphone Input4 Microphone Input5 Microphone Input6 Microphone Input7 Microphone Input8 Preamp Line Input 1-8 D-Type 25-Way Pin Outs (25-way D-type) Signal Name... -
Page 14: Line/Xlr Input/Output Tables
Line & D.I Inputs & Headphone output. All ¼’’ Line Inputs & Outputs on the unit have the same wiring Ring Cold Sleeve Ground XLR Inputs& Outputs All XLR Inputs & Outputs on the unit have the same wiring Pin 2 Pin 3 Cold Pin 1... -
Page 15: Circuit Flow Diagram
Circuit Flow Diagram...
