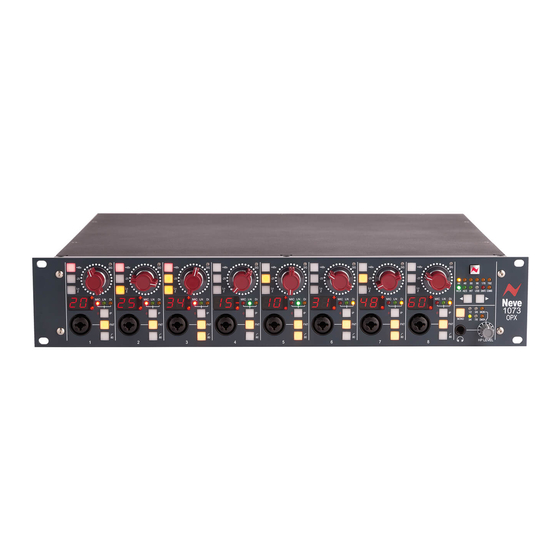

- Page 1 1073OPX 8-channel Microphone, Line & Instrument Preamplifier User Manual Issue 2...
-
Page 2: Health & Safety Notice (English)
Health & Safety Notice FOR YOUR OWN SAFETY AND FOR THE PROTECTION OF OTHERS PLEASE OBSERVE THE FOLLOWING HEALTH AND SAFETY INSTRUCTIONS READ THESE INSTRUCTIONS AND KEEP THEM HANDY • HEED ALL SAFETY WARNINGS • DO NOT USE NEAR WATER •... -
Page 3: Health & Safety Notice (French)
Avertissements de Santé & Sécurité POUR VOTRE SECURITE ET CELLE DES AUTRES MERCI DE RESPECTER LES INSTRUCTIONS DE SANTE ET SECURITE SUIVANTES LISEZ CES INSTRUCTIONS ET GARDEZ-LES À PORTÉE DE MAIN • TENEZ COMPTE DE TOUS LES AVERTISSEMENTS DE SÉCURITÉ •... -
Page 4: Important Safety Instructions (English)
© ® 2005 - 2022 AMS Neve Ltd own the copyright of all information and figures contained in this manual which are not to be copied or reproduced by any means or disclosed in part or whole to any third party without written permission. As part of our policy of continual product improvement, we reserve the right to alter specifications without notice but with due regard to all current legislation. -
Page 5: Important Safety Instructions (French)
Instructions Importantes sur la Sécurité: Pour votre sécurite et celle des autres merci de respecter les instructions de santé et sécurité suivantes : 1) Lisez ces instructions. 2) Gardez ces instructions. 3) Tenez compte de tous les avertissements. 4) Suivez toutes les instructions. 5) ATTENTION: afin de réduire les risques d'incendie ou de choc électrique, n'exposez pas cet appareil à... -
Page 6: Table Of Contents
Line/XLR input/output Tables ................... 39 25-Way D-Type Pin outs ..................40 Neve®, 1073® and Marinair® are registered trademarks. AMS Neve Limited pursues a policy of continual improvement therefore all specifications are subject to change without notice. All trademarks are property of their respective owners E & O E ©2022 AMS Neve Ltd. -
Page 7: 1073Opx Introduction
Up to eight 1073OPX units can be connected and controlled remotely, giving up to 64 Mic Preamplifiers, Line Level, or DI inputs, all managed from a single computer. The unit always powers up with all settings, levels and states as they were at power-down. -
Page 8: Rack Mount Instructions (English)
Rack Mount Instructions Elevated Operating Ambient- If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient. Therefore, consideration should be given to installing the equipment in an environment compatible with the maximum ambient temperature (30°C) specified by the manufacturer. -
Page 9: Configuring The 1073Opx
180 phase flip. The DI circuit within the 1073OPX is a transformer-less class-A design. This uses an FET transistor to increase the impedance to 650Kohms, perfect for guitars, basses and keyboards. When connecting an instrument directly to the unit using the DI, set the level at +40db gain and adjust gain levels from this point. -
Page 10: Front Panel
Front Panel POWER: Switches the unit on or off. The button will light when the unit is HP LEVEL: Controls the volume of the headphones and rear monitor outputs and attenuates from -35 to 0dB. Pressing the HP LEVEL control knob will cycle through the monitor sources indicated by the adjacent LEDs: Off/cut;... - Page 11 -25: Provides 25dB of attenuation to the input (applies to mic/line/DI, whichever is selected). The button will light when the pad is applied. LoZ: The default microphone input impedance is 1.3kΩ. Pressing the LoZ button will reconfigure the input for 300Ω input impedance. The button will light when LoZ is selected.
-
Page 12: Rear Panel
Rear Panel DC POWER: Connects the accompanying DC power supply to the unit. MONITOR OUT L&R: Stereo, balanced monitor XLR outputs. MONITOR IN L&R: Stereo, balanced monitor XLR inputs. O/P’s 1-8: Balanced line outputs (DB-25 standard). SOFT SWITCHES: out of use until future product updates. COMMS CTL: Ethernet Cat5e/Cat6 for remote control connection. -
Page 13: Ad/Da Usb/Dante Card (Optional)
AD/DA USB/Dante card (Optional) The 1073OPX USB/DANTE card provides a digital interface for the 1073OPX and has 8 A/D preamplifier converters and 2 D/A monitor converters. By default, the post-gain amplified signal from the Mic/Line input is routed to the A/D inputs. If this digital board is not fitted, then the Sample Rate and Sync Source LEDs on the front of the unit will not light or function. -
Page 14: Monitoring
IN L and MONITOR IN R. These can be used to feed a monitor path from your audio interface into the 1073OPX unit. The Signal is fed into the units MON audio path and can be attenuated by -35dB via the HP LEVEL control. -
Page 15: Latency Free Monitoring
Latency Free Monitoring The 1073OPX monitor path can be fed from a combination of preamplifier output and monitor input signal sources. This enables latency free monitoring of preamp signals, allowing operators to record overdubs by listening to the input source directly pre-DAW. Users can blend the mic, line or DI preamplifier signals directly with the monitor or digital monitor signal for quick latency-free monitoring. - Page 16 Example 1 MON is selected and channel 1 gain encoder has been pressed. This activates channel 1 preamplifier output into the left monitor path. However, since the MONO button has also been pressed, both preamplifier output 1 and the monitor (MON) signal is sent as MONO to the headphone left and right and monitor (MONITOR OUT L &...
-
Page 17: Summing
Summing The Monitor output XLR connectors at the rear of the unit follow the front HP LEVEL monitor signal selection. This function gives users the ability to use the unit as a 4x stereo input analogue summing mixer. Users can pass audio signals through the 1073 line-level preamplifiers, combining them into the monitor path through the Left and Right Monitor output XLRs on the rear of the unit. -
Page 18: 1073Opx Remote Control Software
1073OPX Remote Control Software The 1073OPX proprietary Remote-control software application can be run on Mac or PC and allows users to access and operate the 1073OPX control features remotely. The unit’s front panel controls including gain level, Input selection, phantom power, etc can be controlled remotely from any connected computer. -
Page 19: Ip Address Setup
Preamplifier Channel 1 +48v button. Once pressed, the preamplifier channels will change to display the unit’s manually assigned IP address across the front panel gain indicators. Follow the steps on page 17 and 18 to configure the computer and 1073OPX manual IP addresses. - Page 20 Manual IP address setup - Windows PC Open control panel>Network&Internet>Network and Sharing Centre Click Change Adapter Settings Highlight the Ethernet connection and click Properties Click Internet Protocol version 4 (TCP/IPv4) Click Properties Click use the following IP address ...
- Page 21 The units manual IP address is now set. For reliable communications, the IP Addresses of remote computer and 1073OPX must be set on the same subnet. Once the IP address is set, allow 7 seconds for the unit to update settings.
-
Page 22: Setup Menu
Once the units IP address has been assigned, the remote software will scan for connected devices and automatically connect. If a unit is not found, or if several 1073OPX units are connected, click the SETUP button in the plugin software window and follow the steps on the following pages. - Page 23 Once a unit is found the device information will be displayed Device type: will show as 1073OPX Name: 1073OPX by default, unless renamed by user. IP Address: will show the units current manual or auto-assigned IP address MAC Address: Fixed address used to identify each unit.
-
Page 24: Using The Remote-Control Software
Controlling multiple 1073OPX units The top bar of the plugin window displays the available connected 1073OPX racks. Up to 8 racks can be connected and controlled at the same time. Select units to control by clicking the unit name at the top of the plugin window. - Page 25 The 1073OPX software controls can be adjusted by using your computer mouse to change the hardware unit control values. The 1073OPX buttons can be pressed by clicking on them with your mouse pointer. The software button will change colour to indicate on/off status and the physical button on the unit will illuminate when active.
-
Page 26: Usb Audio Interface Mode
This mode enables the 1073OPX to function as an audio interface for your MAC or PC. In USB audio mode, only one 1073OPX rack unit can be used as a primary audio interface. Once a valid USB connection is made, the USB LED will illuminate Blue. If... - Page 27 click Install Click ‘Finish’ Once installed, the 1073OPX will appear in your PC’s available audio devices and the AMS NEVE USB audio device control panel application can now be accessed. This application allows users to view the selected sample rate, Bit Depth, buffer size, I/O and release and serial number information.
- Page 28 MAC Core audio device The Neve 1073OPX will appear as a core audio device as soon as the hardware is connected to the Mac. Adjustments can be made through the Audio Devices menu. As a general rule, any flashing LED on the digital panel indicates that the unit is not locked to the selected sample rate or source.
-
Page 29: Dante Networked Audio Mode
Dante Networked Audio Mode This mode enables the 1073OPX to function as a Dante networked audio device which can be accessed by the connected Dante network. The ETHERNET AUDIO DANTE PRI or ETHERNET AUDIO DANTE SEC must be connected via a CAT5e or CAT6 cable to the Dante network to use the 1073OPX as a Dante enabled audio device. -
Page 30: 1073Opx And Dante Controller
(subscribed) appears in the connection box. Audio to and from the 1073OPX will now pass through to its routed location. (In Progress) indicates a subscription in progress. (Error) symbol indicates a failed connection. This could be for a number of reasons. - Page 31 MAC or PC computer that is connected to the Dante network. The unit will appear in Dante controller as 1073OPX. To change the units sample rate, double click on the 1073OPX device name in the Dante controller routing tab. This will open the Dante Controller device view window.
-
Page 32: Dante Network Connections
The Primary network port connects to the primary Dante network along with your Dante Controller enabled MAC/PC. The 1073OPX DANTE SEC network port is used to create a secondary Dante network. This network connection (if required) must also be made using a separate gigabit ethernet switch. -
Page 33: Wordclock Sync
move the jumper to the left position, covering both pins Wordclock should be terminated when the 1073OPX is the last unit in the synchronisation chain to receive Wordclock. 75Ω Wordclock termination should not be used when transmitting Wordclock via WORDCLOCK OUT. -
Page 34: Firmware Update Software
First the software must be installed. Run the installer package on your PC/MAC and follow the on-screen steps. Once installed the software is ready to be connected to your 1073OPX unit. Once connected and scanned the software will prompt the user to begin firmware update if required. - Page 35 Units can be renamed by clicking rename (Max 21 characters) Identify flashes the MONO button on the selected unit. Advanced is reserved for the use of AMS Neve engineers when manually uploading firmware. It is not recommended for end-users to enter this mode.
-
Page 36: Troubleshooting
If using PC, ensure the correct drivers are installed. Drivers can be found at www.AMS- Neve.com >1073OPXproductpage >supporting documentation. Check the USB cable connection. Open an au audio application on the connected computer. The USB connection requires an active audio application to activate... -
Page 37: Dimensions & Power Requirements
Dimensions & power Requirements Height 89mm/3.5 inches 484mm/19.05 inches Width Depth 360mm/14.17 inches Weight 7.8kg Heat Dissipation 40 watts Power factor >0.90 Voltage Input Voltage Range 90-240v AC Only Current 0.135A Amps RMS 240v Current 0.330A Amps RMS 90v Switch-On surge current – Current 65A Peak @ 240v Audio Specification... -
Page 38: Ad/Da Card Specification
Distortion, with a 20dBu input signal, headroom set to +26dBu Distortion, with a -6dBFS input signal Type Device S.R. Bits Buffer Measured RTL (ms) Noise Floor ASIO AMS Neve USB Audio Device 44100 7.0068 -111.3 ASIO AMS Neve USB Audio Device 44100 7.8458 -111.5... -
Page 39: Unit Connection Tables
Unit Connection Tables External PSU Mains, fused @ 4 amps IEC male Preamplifier Microphone Inputs XLR 3-pin plug female (Front) Preamplifier Microphone Inputs 25-way D-Type, Tascam convention (Rear) Preamplifier Line Inputs (Front) ¼" TRS Jack sockets Preamplifier Line Inputs (Rear) 25-way D-Type, Tascam convention Preamplifier DI inputs ¼"... -
Page 40: 25-Way D-Type Pin Outs
Preamplifier Mic Input 1-8 D-Type 25-Way Pin Outs (25-way D-type) Signal Name Screen Microphone Input 1 Microphone Input 2 Microphone Input 3 Microphone Input 4 Microphone Input 5 Microphone Input 6 Microphone Input 7 Microphone Input 8 Preamplifier Line Input 1-8 D-Type 25-Way Pin Outs (25-way D-type) Signal Name...
