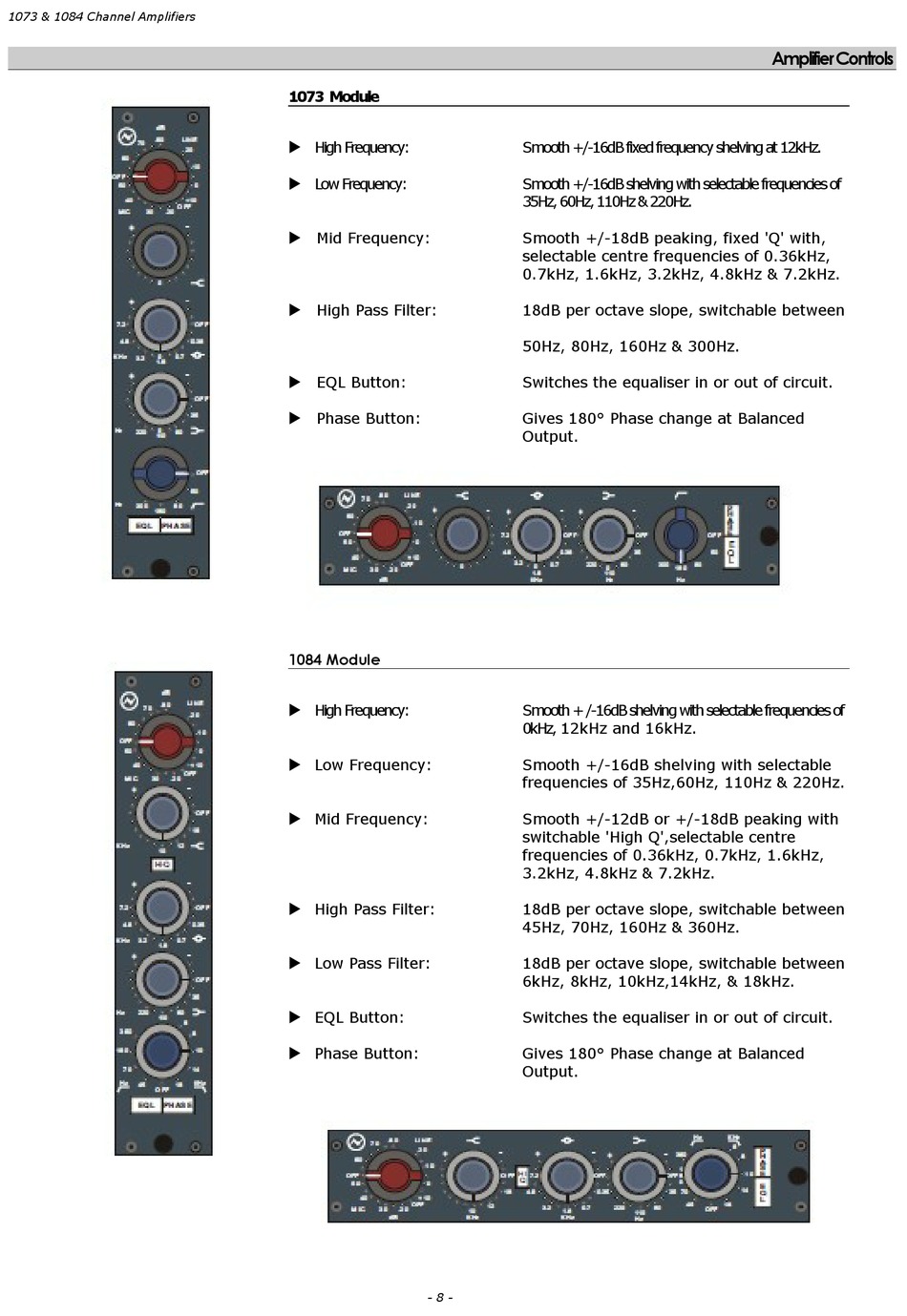

1073 & 1084 Channel Amplifiers

1073 Module

u High Frequency:
u Low Frequency:
u Mid Frequency:
u High Pass Filter:
u EQL Button:
u Phase Button:
1084 Module
u High Frequency:
u Low Frequency:
u Mid Frequency:
u High Pass Filter:
u Low Pass Filter:
u EQL Button:
u Phase Button:
- 8 -
Smooth +/-16dB fixed frequency shelving at 12kHz.
Smooth +/-16dB shelving with selectable frequencies of
35Hz, 60Hz, 110Hz & 220Hz.
Smooth +/-18dB peaking, fixed 'Q' with,
selectable centre frequencies of 0.36kHz,
0.7kHz, 1.6kHz, 3.2kHz, 4.8kHz & 7.2kHz.
18dB per octave slope, switchable between
50Hz, 80Hz, 160Hz & 300Hz.
Switches the equaliser in or out of circuit.
Gives 180° Phase change at Balanced
Output.
Smooth + /-16dB shelving with selectable frequencies of
0kHz, 12kHz and 16kHz.
Smooth +/-16dB shelving with selectable
frequencies of 35Hz,60Hz, 110Hz & 220Hz.
Smooth +/-12dB or +/-18dB peaking with
switchable 'High Q',selectable centre
frequencies of 0.36kHz, 0.7kHz, 1.6kHz,
3.2kHz, 4.8kHz & 7.2kHz.
18dB per octave slope, switchable between
45Hz, 70Hz, 160Hz & 360Hz.
18dB per octave slope, switchable between
6kHz, 8kHz, 10kHz,14kHz, & 18kHz.
Switches the equaliser in or out of circuit.
Gives 180° Phase change at Balanced
Output.
