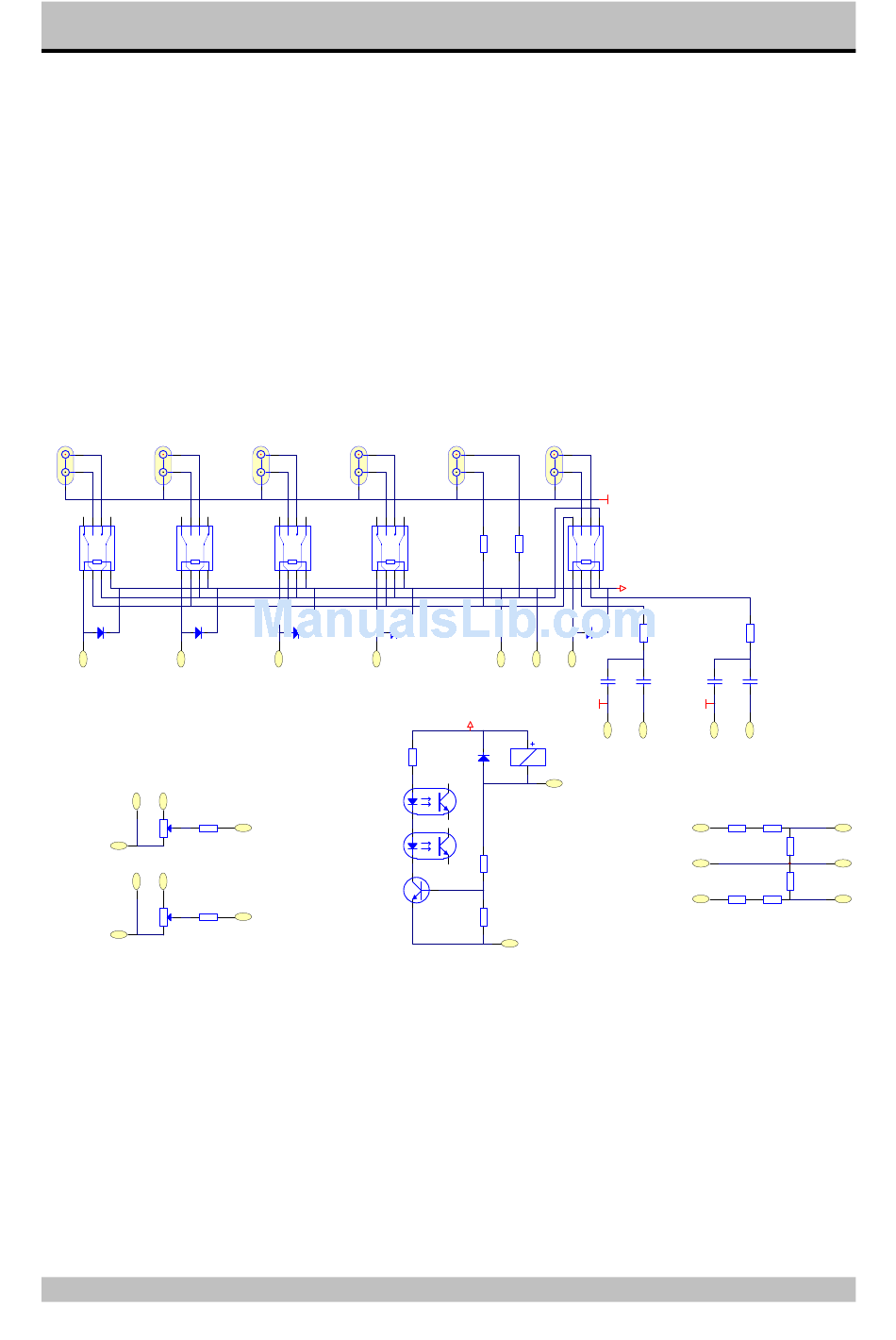

Schematic Diagram Input / Output - SPHINX Myth3 Service Manual

SPHINX Myth 3
LINE2 LINE1
L2/L1A L2/L1B
REL1 REL2
REL16 REL16
+ +
D8 D9
1N4148 1N4148
9 10
LGI L_I
P1.2
R2
475R
ALPS 20K
LGO
RGI R-I
P1.1
R1
475R
ALPS 20K
RGO
TUNER CD
TUNER/CDA TUER/CDB
REL3
REL16
+ +
D10 D11
1N4148 1N4148
7 8
IC1L
CNY17-D
L_O
IC1R
CNY17-D
Q17
C2240
R_O
Service Manual

Schematic Diagram Input / Output

TAPE OUT TAPE IN
TAPEA TAPEB
REL4
REL16 R41L R41R
475R 475R
3 4 6
AGND
+24V
D17
R53 REL6RLA
4k75 RA451024
1N4148
5
R51
10k
R52
4k75
2
AGND
REL5
REL16
+
+24V
D12
R42L
475R
1N4148
120P 10U/100V 120P
C20L C21L C20R
AGND
PM4 PM3 PM2 PM1
ORANJE
R1
1K
RIGHT
GEEL
GND
GROEN
R4
1K
LEFT
R42R
475R
10U/100V
C21R
RIGHT PHONES
R2
1K
R3
1K
GND PHONES
R6
1K
LEFT PHONES
R5
1K
16
